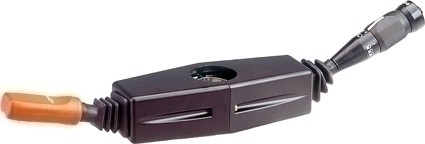

The image shown here is for illustrative purposes only.
STEERING COLUMN SWITCH
Code: 01.0692.0000.01
Doc. Code: 01-0692-0000-01
€365.04
Tax excluded
(445.35 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

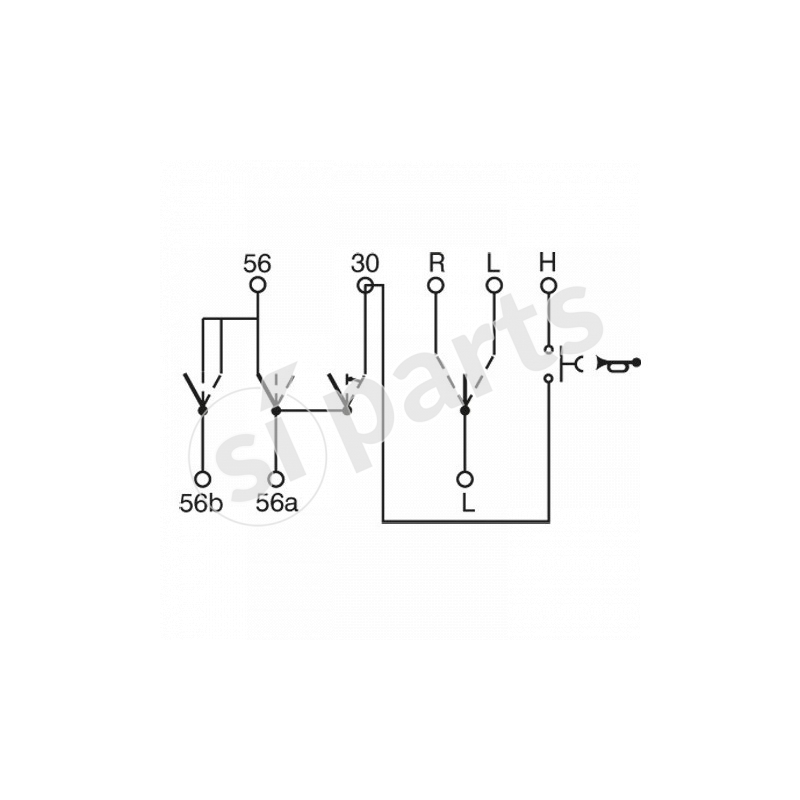

| function | peak load 12v | peak load 24v |
|---|---|---|
| horns | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 5a | 3a |
| direction | 7a | 5a |

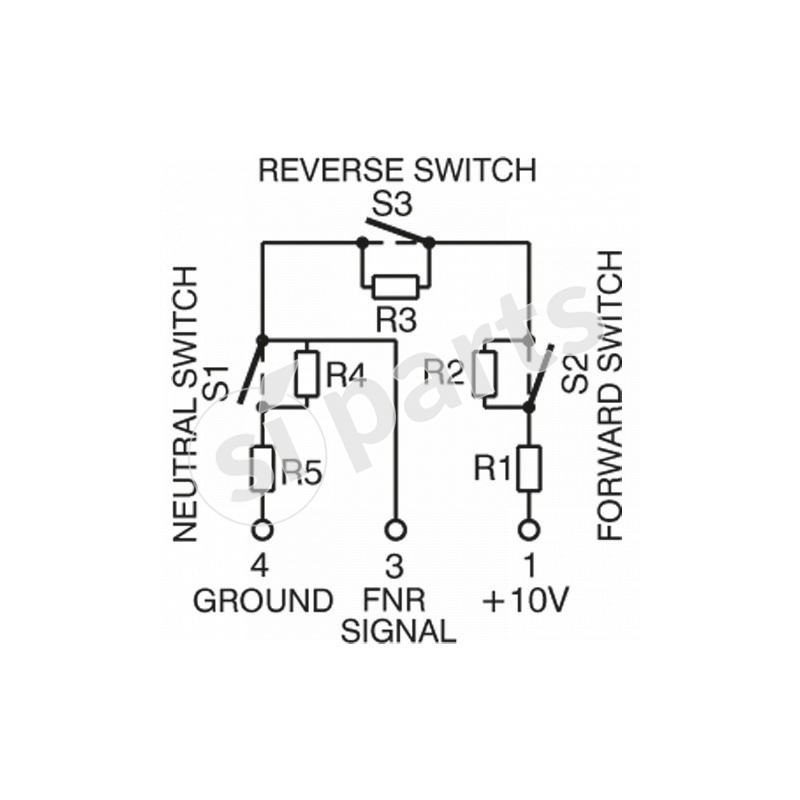

| forward gear | 5-100ma a 8v - dc | |
| neutral | 5-100ma a 8v - dc | |
| reverse gear | 5-100ma a 8v - dc |

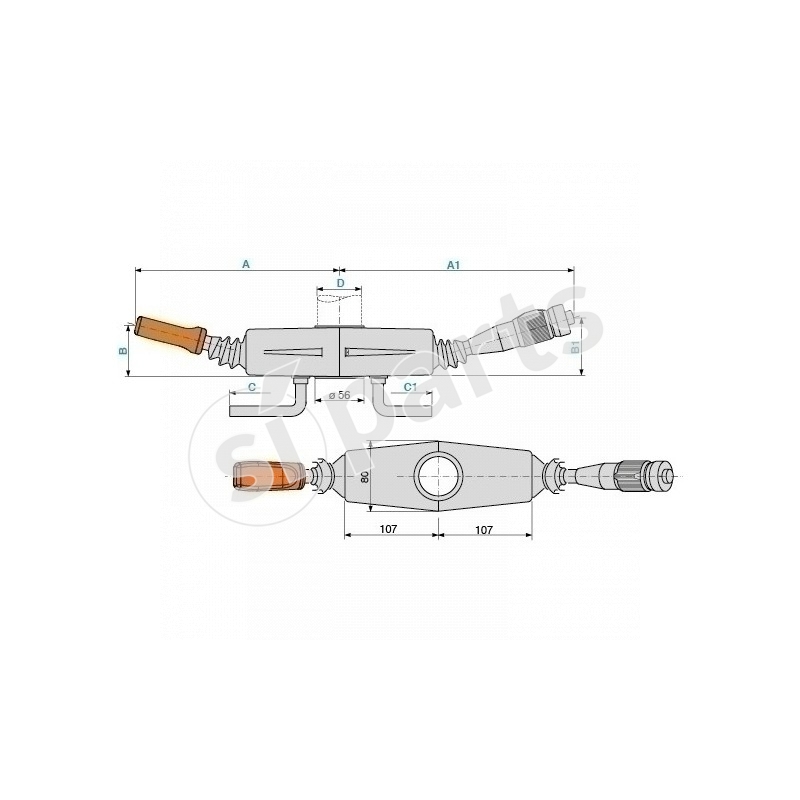

connection length mm
501-600
steering height mm
0-100
length lever mm
201-300
length lever 1 mm
201-300
steering height 1 mm
0-100
connection length 1 mm
501-600
fixing
column 45 mm
type
doppio
technology
microswitch
connection length mm detail
600
steering height mm detail
60
length lever mm detail
230
length lever 1 mm detail
265
steering height 1 mm detail
65
connection length 1 mm detail
600
model type
serie 240
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - forward gear
attivo
function - neutral
attivo
function - reverse gear
attivo
