The image shown here is for illustrative purposes only.

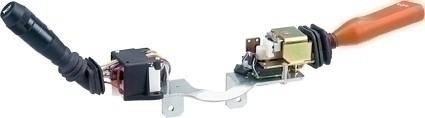

STEERING COLUMN SWITCH
Code: 01.0699.0000.01
Doc. Code: 01-0699-0000-01
€288.84
Tax excluded
(352.38 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horns | 5a | 3a |
| direction | 7a | 5a |
| forward gear | 2a | 1a |
| neutral | 5a | 3a |
| reverse gear | 5a | 3a |
length lever mm
201-300
steering height mm
101-200
length lever 1 mm
201-300
steering height 1 mm
0-100
connection length mm
1001-1100
connection length 1 mm
1001-1100
type
doppio
technology
microswitch
length lever mm detail
219
steering height mm detail
125
length lever 1 mm detail
242
steering height 1 mm detail
68

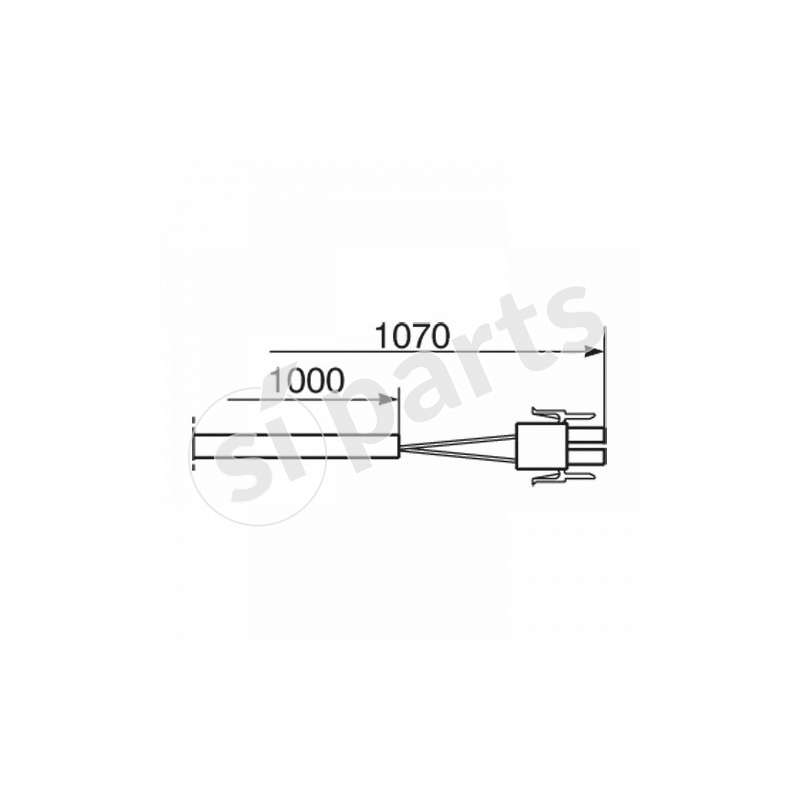

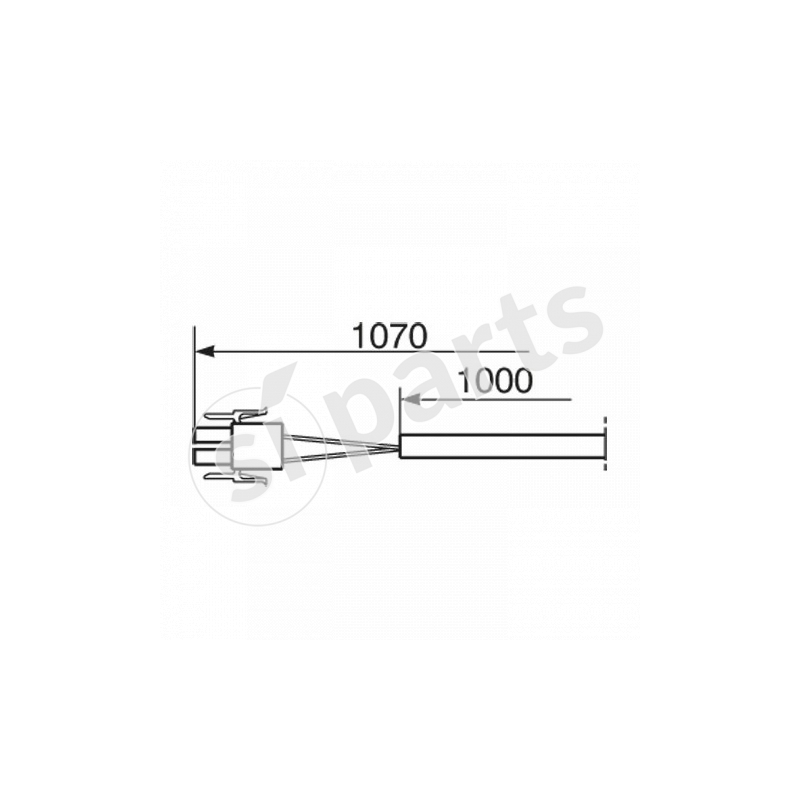

connection length mm detail
1070
connection length 1 mm detail
1070
model type
serie 190
type of interior lever
metallic
type of cap
neoprene rubber
color of cap
black
rest bracket
zinc-plated steel
lever covering
polyamide + functions symbols
protection housing
polyamide
electrical contacts forward-neutral-reverse shifter
microswitch ip66
lever covering
abs + funztion symbols
type connection
with female connector 6 ways amp mate-n-lock universal serie
function - horn
attivo
function - direction
attivo
function - forward gear
attivo
function - neutral
attivo
function - reverse gear
attivo
