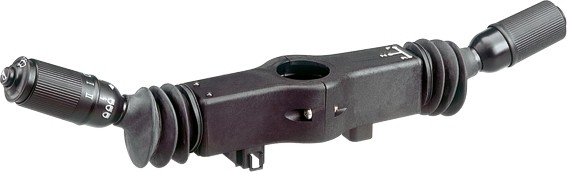

The image shown here is for illustrative purposes only.
2000 SERIES STEERING COLUMN SWITCH
Code: 01.0704.0000.01
Doc. Code: 01-0704-0000-01
€512.55
Tax excluded
(625.31 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horns | 3a | 1,5a |
| low beam | 15a | 7a |
| high beam | 6a | 3a |
| flashing | 6a | 3a |
| direction | 6a | 3a |
| forward gear | 200ma | 100ma |
| neutral | 200ma | 100ma |
| reverse gear | 200ma | 100ma |
| speed 1 | 200ma | 100ma |
| speed 2 | 200ma | 100ma |
| switch | 3a | 1,5a |

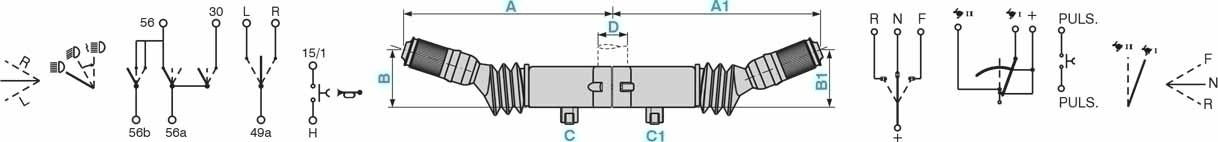

length lever mm
201-300
steering height mm
0-100
length lever 1 mm
201-300
steering height 1 mm
0-100
fixing
column 45 mm
type
doppio
technology
frontali in aria
type connection
deutsch 12 vie
deutsch 12 vie
length lever mm detail
260
steering height mm detail
72
length lever 1 mm detail
260
steering height 1 mm detail
72
model type
serie 2000
function - speed 2
attivo
function - speed 1
attivo
function - block
attivo
function - reverse gear
attivo
function - neutral
attivo
function - forward gear
attivo
function - rientro automatico
attivo
function - direction
attivo
function - flashing
attivo
function - high beam
attivo
function - low beam
attivo
function - horn
attivo
function - switch
attivo
