The image shown here is for illustrative purposes only.

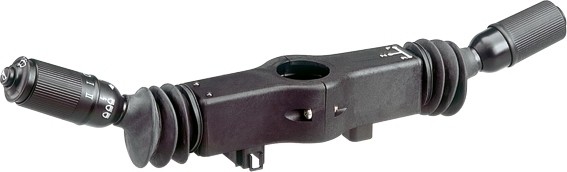

SWITCHES + FORWARD-NEUTRAL-REVERSE SHIFTER + SPEED CONTROL SERIES 2000
Code: 01.0724.0000.01
Doc. Code: 01-0724-0000-01
€443.79
Tax excluded
(541.42 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horns | 3a | 1,5a |
| low beam | 15a | 7a |
| high beam | 6a | 3a |
| flashing | 6a | 3a |
| direction | 6a | 3a |
| main lighting | 3a | 1,5 |
| forward gear | 200ma | 100ma |
| reverse gear | 200ma | 100ma |
| speed 1 | 200ma | 100ma |
| speed 2 | 200ma | 100ma |
length lever mm
201-300
steering height mm
0-100
length lever 1 mm
201-300
steering height 1 mm
0-100
fixing
column 38 mm
type
doppio
technology
frontali in aria
type connection
deutsch 6 vie
deutsch 12 vie
length lever mm detail
252
steering height mm detail
88
length lever 1 mm detail
252
steering height 1 mm detail
90
model type
serie 2000
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - main lighting
attivo
function - forward gear
attivo
function - reverse gear
attivo
function - speed 1
attivo
function - speed 2
attivo
