The image shown here is for illustrative purposes only.

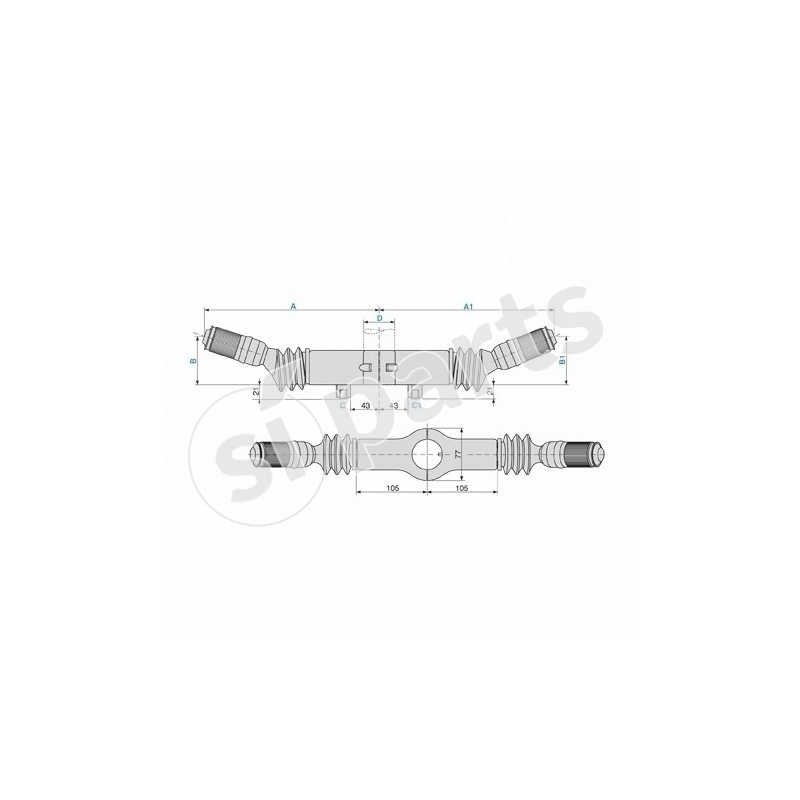

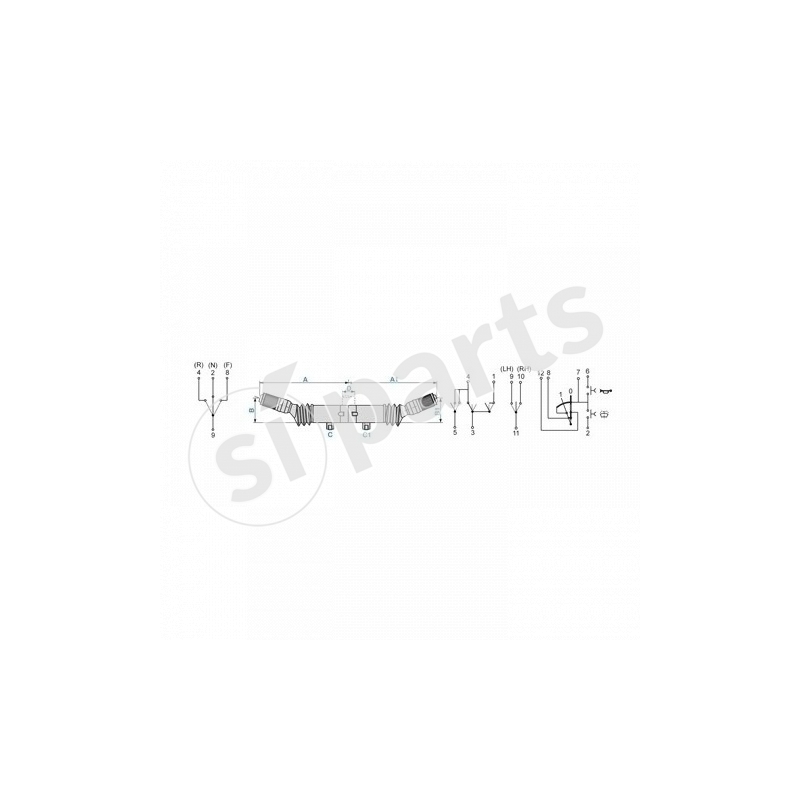

2000 SERIES STEERING COLUMN SWITCH
Code: 01.0760.0000.01
Doc. Code: 01-0760-0000-01
€397.56
Tax excluded
(485.02 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horns | 3a | 1,5a |
| low beam | 15a | 7a |
| high beam | 6a | 3a |
| flashing | 6a | 3a |
| direction | 6a | 3a |
| windscreen washer | 3a | 1,5a |
| windscreen 1 | 3a | 1,5a |
| forward gear | 200ma | 100ma |
| neutral | 200ma | 100ma |
| slow gear | 200ma | 100ma |
length lever mm
201-300
steering height mm
0-100
length lever 1 mm
201-300
steering height 1 mm
101-200
fixing
column 45 mm
type
doppio
technology
frontali in aria
type connection
deutsch 12 vie
length lever mm detail
242
steering height mm detail
78
length lever 1 mm detail
250
steering height 1 mm detail
104
model type
serie 2000
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - windscreen washer
attivo
function - windscreen 1
attivo
function - forward gear
attivo
function - neutral
attivo
function - reverse gear
attivo
function - block
attivo
