The image shown here is for illustrative purposes only.

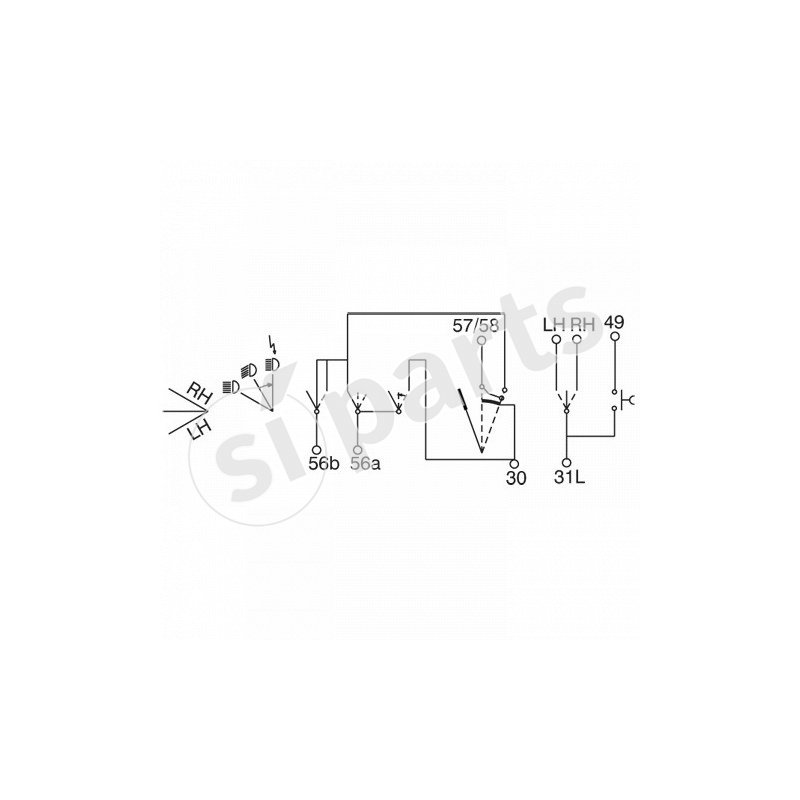

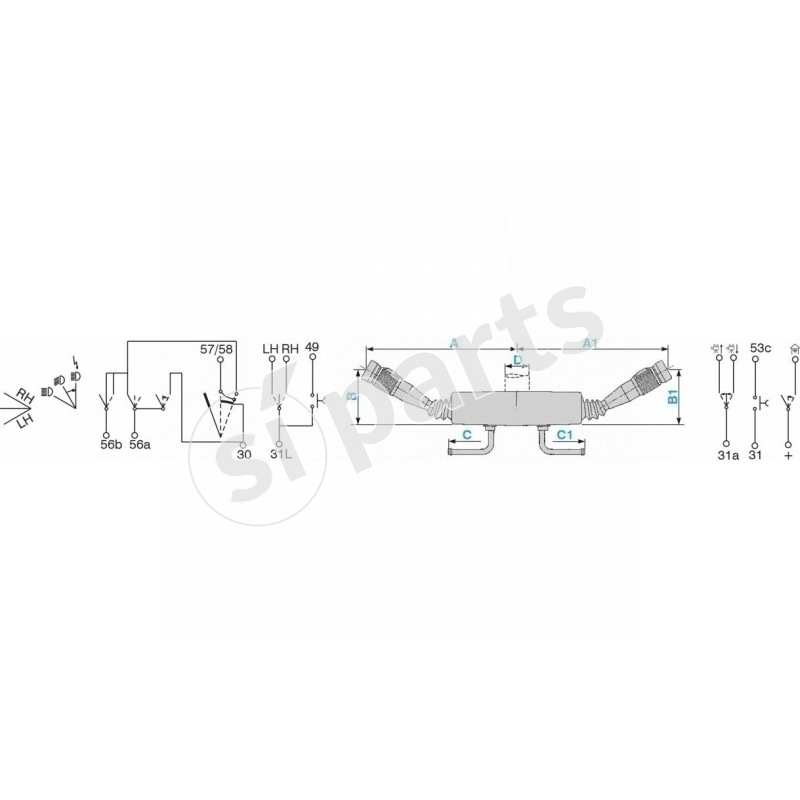

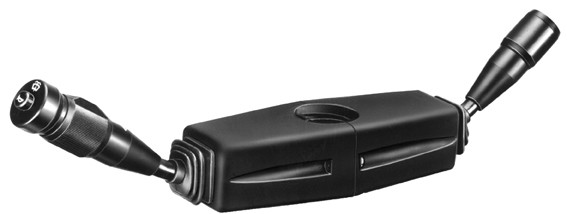

REVERSE-STEER. COLUMN SWITCH
Code: 01.0933.0000.01
Doc. Code: 01-0933-0000-01
€315.12
Tax excluded
(384.45 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horns | 5a | 2,5a |
| low beam | 7a | 3,5a |
| high beam | 7a | 3,5a |
| flashing | 7a | 3,5a |
| direction | 7a | 3,5a |
| main lighting | 5a | 2,5a |
| front camera | 7a | 3,5a |
| rear camera | 7a | 3,5a |
| front fan | 7a | 3,5a |
| windscreen washer | 5a | 2,5a |
length lever mm
201-300
steering height mm
0-100
connection length mm
501-600
length lever 1 mm
201-300
steering height 1 mm
0-100
connection length 1 mm
501-600
fixing
column 45 mm
type
doppio
technology
frontali in aria
length lever mm detail
240
steering height mm detail
95
connection length mm detail
550
length lever 1 mm detail
240
steering height 1 mm detail
95
connection length 1 mm detail
550
model type
serie 240
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - windscreen washer
attivo
function - main lighting
attivo
function - front camera
attivo
function - rear camera
attivo
function - front fan
attivo
