  • Original product

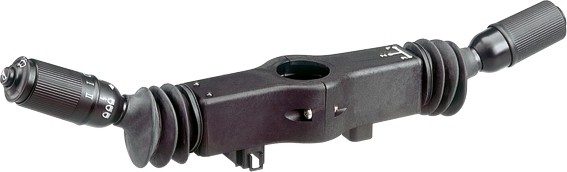

COMPLETE STEERING COLUMN SWITCH

COBO (Original product)
1006709

Code: 01.0937.0000.01

Doc. Code: 01-0937-0000-01

€412.54
tax excluded

(503.30 € tax incl.)

Quantity

Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro
description
functionpeak load 12vpeak load 24v
horns3a1,5a
low beam15a7a
high beam6a3a
flashing6a3a
direction6a3a
windscreen washer3a1,5a
intermittent s3a1,5a
windscreen 13a1,5a
windscreen 23a1,5a
forward gear200ma100ma
neutral200ma100ma
reverse gear200ma100ma
speed 1200ma100ma
speed 2200ma100ma
speed 3200ma100ma
speed 4200ma100ma
switch3a1,5a

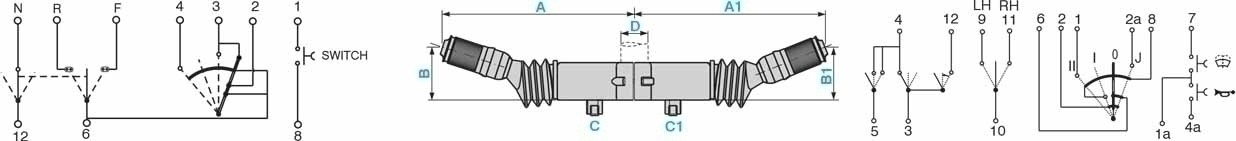

length lever mm
201-300
steering height mm
0-100
length lever 1 mm
201-300
steering height 1 mm
0-100
fixing
column 45 mm
type
doppio
technology
frontali in aria
type connection
deutsch 12 vie
deutsch 12 vie
deutsch 4 vie
length lever mm detail
240
steering height mm detail
58
length lever 1 mm detail
240
steering height 1 mm detail
86
model type
serie 2000
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - windscreen washer
attivo
function - intermittent s
attivo
function - windscreen 1
attivo
function - windscreen 2
attivo
function - forward gear
attivo
function - neutral
attivo
function - reverse gear
attivo
function - block
attivo
function - speed 1
attivo
function - speed 2
attivo
function - speed 3
attivo
function - speed 4
attivo
function - switch
attivo
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
