The image shown here is for illustrative purposes only.

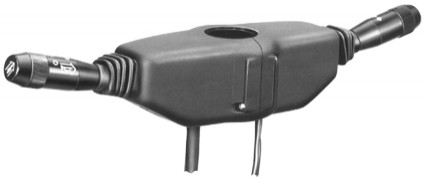

STEERING COLUMN SWITCH
Code: 01.0969.0000.01
Doc. Code: 01-0969-0000-01
€231.12
Tax excluded
(281.97 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horns | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 7a | 5a |
| direction | 7a | 5a |
| main lighting | 5a | 3a |
| forward gear | 8a | 5a |
| reverse gear | 8a | 5a |
| windscreen washer | 5a | 3a |
| windscreen 1 | 8a | 5a |

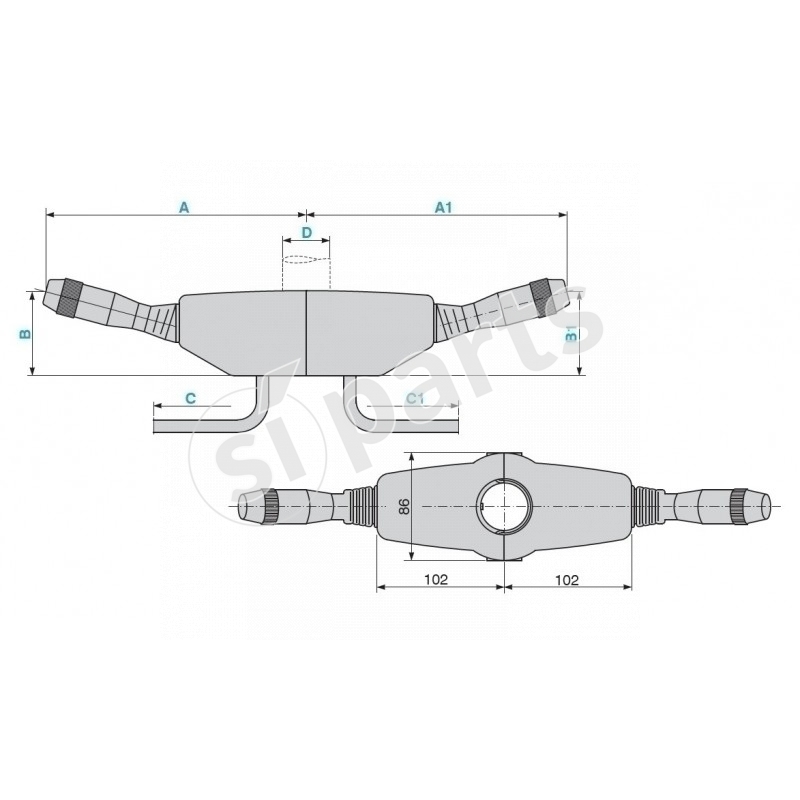

length lever mm
201-300
steering height mm
0-100
length lever 1 mm
201-300
steering height 1 mm
0-100
connection length mm
301-400
connection length 1 mm
301-400
fixing
column 45 mm
type
doppio
technology
frontali in aria
length lever mm detail
209
steering height mm detail
70
length lever 1 mm detail
203
steering height 1 mm detail
91
connection length mm detail
400
connection length 1 mm detail
400
model type
serie 190
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - windscreen washer
attivo
function - windscreen 1
attivo
function - main lighting
attivo
function - forward gear
attivo
function - reverse gear
attivo
