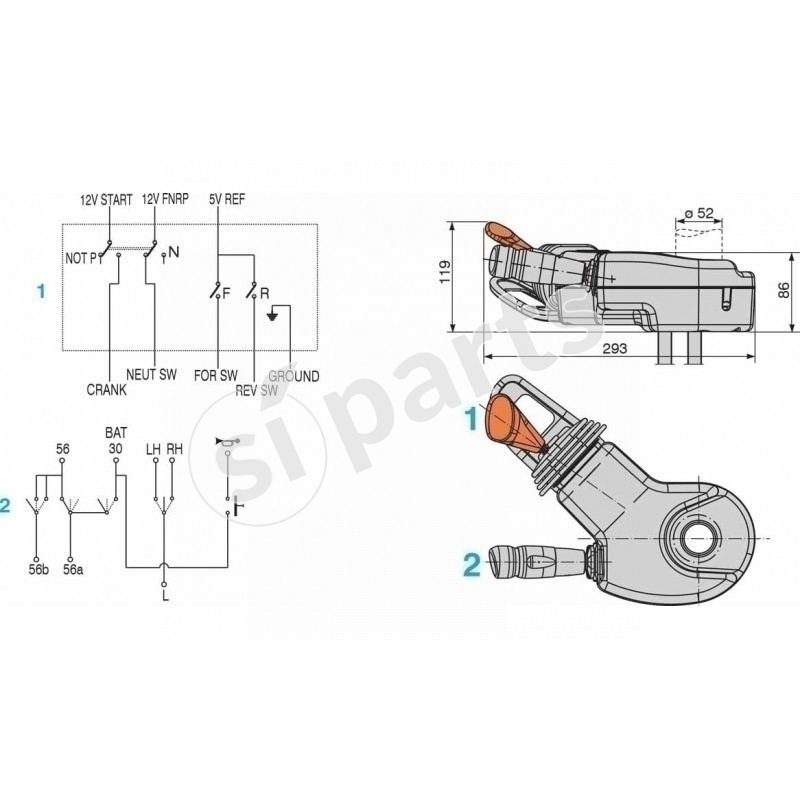

The image shown here is for illustrative purposes only.

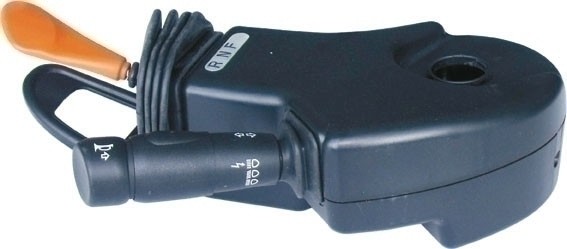

COMPLETE STEERING COLUMN SWITCH
Code: 01.0983.0000.01
(0 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
shifter's elctrical loads must be set according to the control unit interfacing the device
| function | peak load 12v | peak load 24v |
|---|---|---|
| horns | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 5a | 3a |
| direction | 7a | 7a |
connection length mm
401-500
connection length 1 mm
401-500
fixing
column 52 mm
type
doppio
technology
hall effect

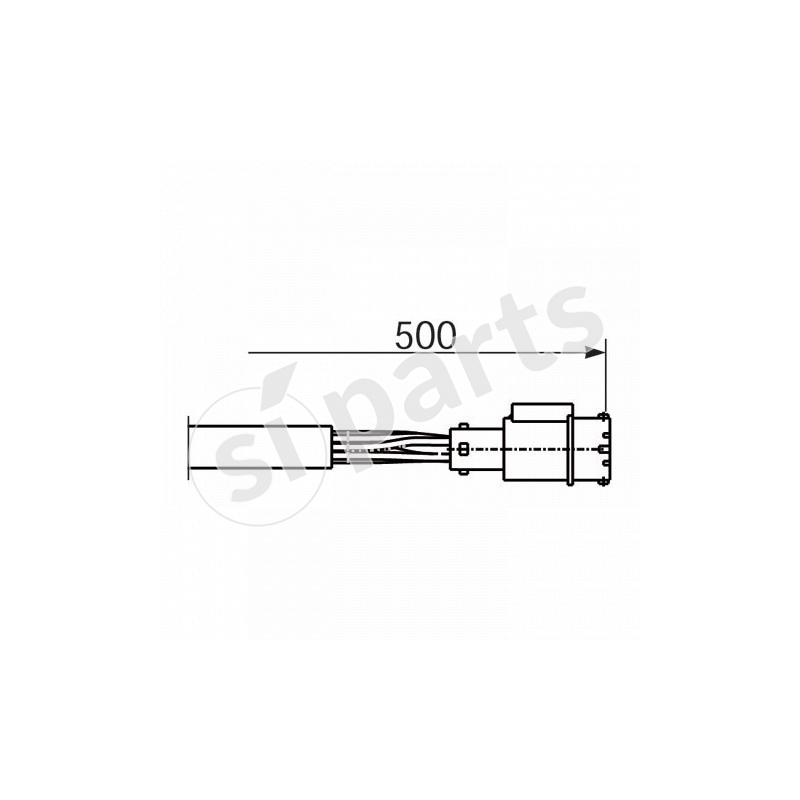

connection length mm detail
500
connection length 1 mm detail
500
model type
serie 776
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo

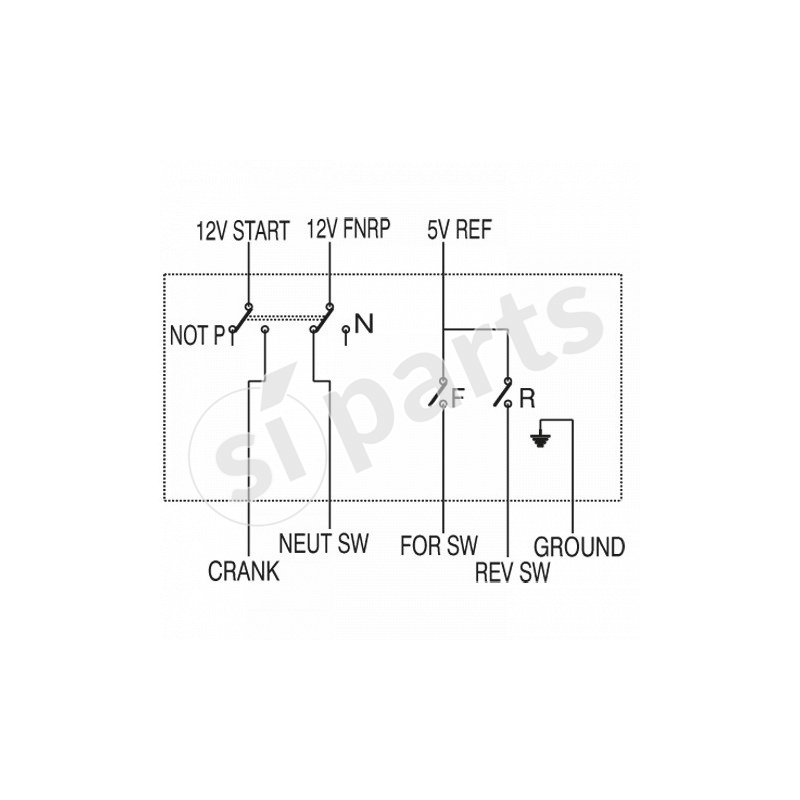

function - forward gear
attivo
function - neutral
attivo
function - reverse gear
attivo
