The image shown here is for illustrative purposes only.

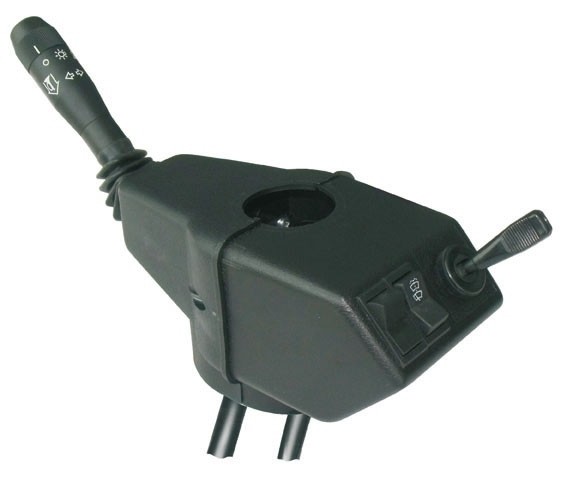

STEERING COLUMN SWITCH
Code: 01.0986.0000.01
Doc. Code: 01-0986-0000-01
€266.30
Tax excluded
(324.89 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horns | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 7a | 5a |
| direction | 7a | 5a |
| main lighting | 5a | 3a |
| forward gear | 8,5a | 5a |
| reverse gear | 8,5a | 5a |
| gear speed | 8,5a | 5a |
length lever mm
201-300
steering height mm
101-200
connection length mm
301-400
connection length 1 mm
301-400
fixing
column 38 mm
type
single
technology
frontali in aria
length lever mm detail
212
steering height mm detail
120
connection length mm detail
350
connection length 1 mm detail
350
model type
serie 190
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - main lighting
attivo
function - gear speed
attivo
function - forward gear
attivo
function - reverse gear
attivo
