The image shown here is for illustrative purposes only.

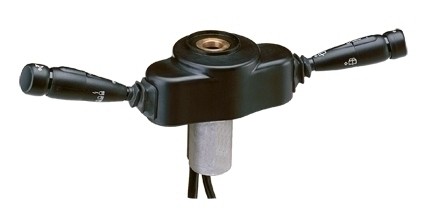

COMPLETE STEERING COLUMN SWITCH
Code: 01.0989.0000.01
Doc. Code: 01-0989-0000-01
€715.17
Tax excluded
(872.51 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horns | 5a | 2,5a |
| low beam | 7a | 3,5a |
| high beam | 7a | 3,5a |
| flashing | 7a | 3,5a |
| direction | 7a | 3,5a |
| main lighting | 5a | 2,5a |
| forward gear | 5a | 2,5a |
| neutral | 5a | 2,5a |
| reverse gear | 5a | 2,5a |
| windscreen washer | 5a | 2,5a |
| intermittent s | 5a | 2,5a |
| windscreen 1 | 5a | 2,5a |
| windscreen 2 | 5a | 2,5a |

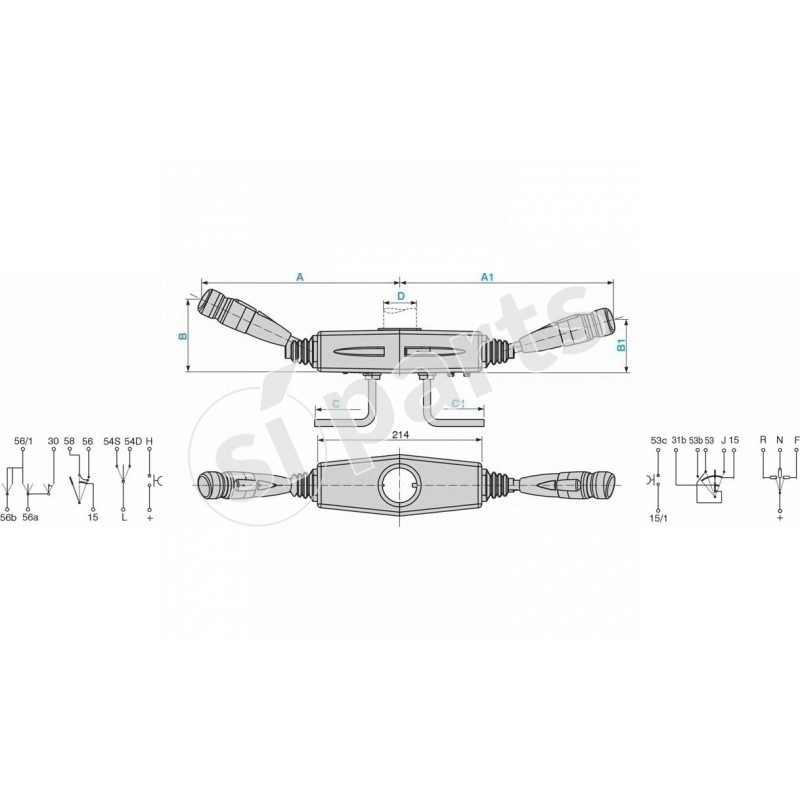

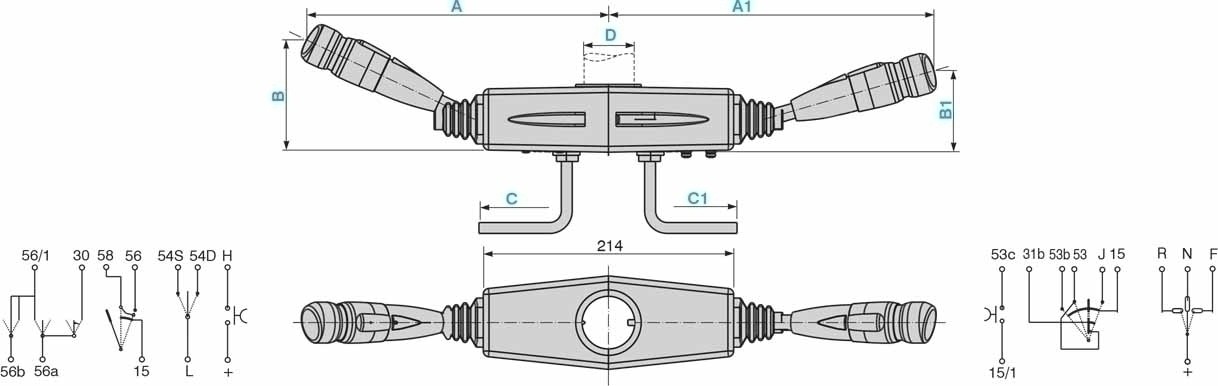

length lever mm
201-300
steering height mm
0-100
length lever 1 mm
201-300
steering height 1 mm
0-100
connection length mm
801-900
connection length 1 mm
801-900
fixing
column 56 mm
type
doppio
technology
frontali in aria
length lever mm detail
258
steering height mm detail
96
length lever 1 mm detail
278
steering height 1 mm detail
70
connection length mm detail
850
connection length 1 mm detail
850
model type
serie 240
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - windscreen washer
attivo
function - intermittent s
attivo
function - windscreen 1
attivo
function - windscreen 2
attivo
function - main lighting
attivo
function - forward gear
attivo
function - neutral
attivo
function - reverse gear
attivo
function - block
attivo
