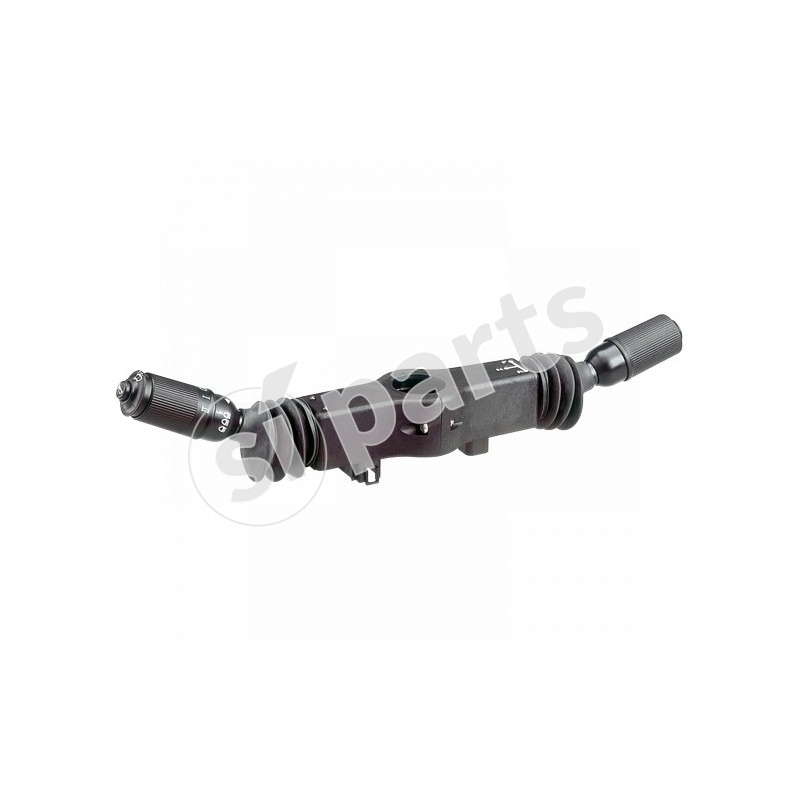

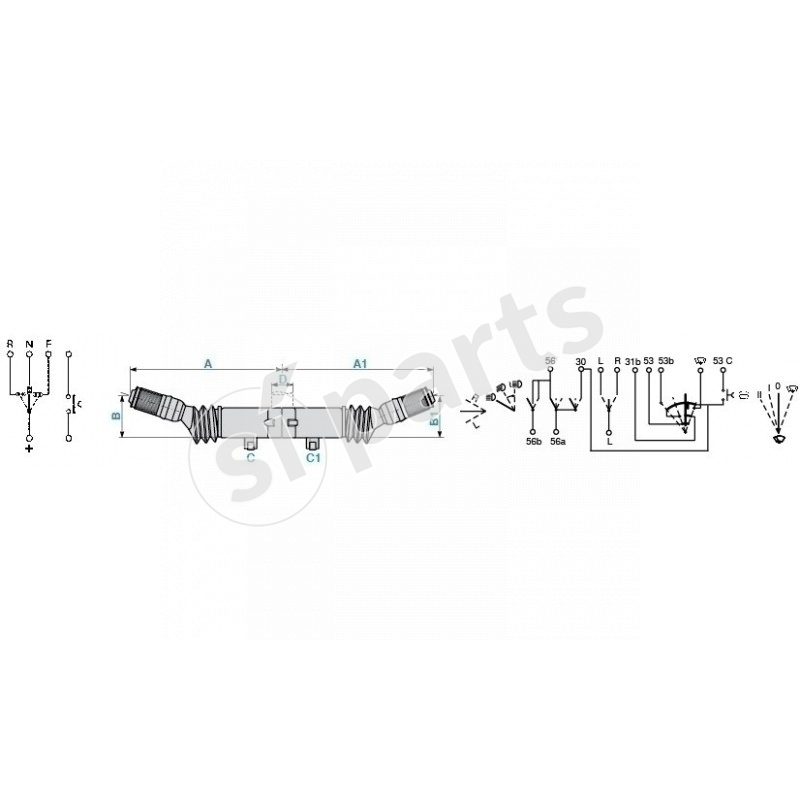

SWITCHES + FORWARD-NEUTRAL-REVERSE SHIFTER + SPEED CONTROL SERIES 2000
Code: 01.1046.0000.01
Doc. Code: 01-1046-0000-01
€377.63
Tax excluded
(460.71 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| low beam | 15a | 7a |
| high beam | 6a | 3a |
| flashing | 6a | 3a |
| direction | 6a | 3a |
| windscreen washer | 3a | 1,5a |
| intermittent s | 3a | 1,5a |
| windscreen 1 | 3a | 1,5a |
| windscreen 2 | 3a | 1,5a |
| forward gear | 200ma | 100ma |
| reverse gear | 200ma | 100ma |
| neutral | 200ma | 100ma |
| switch | 3a | 1,5a |

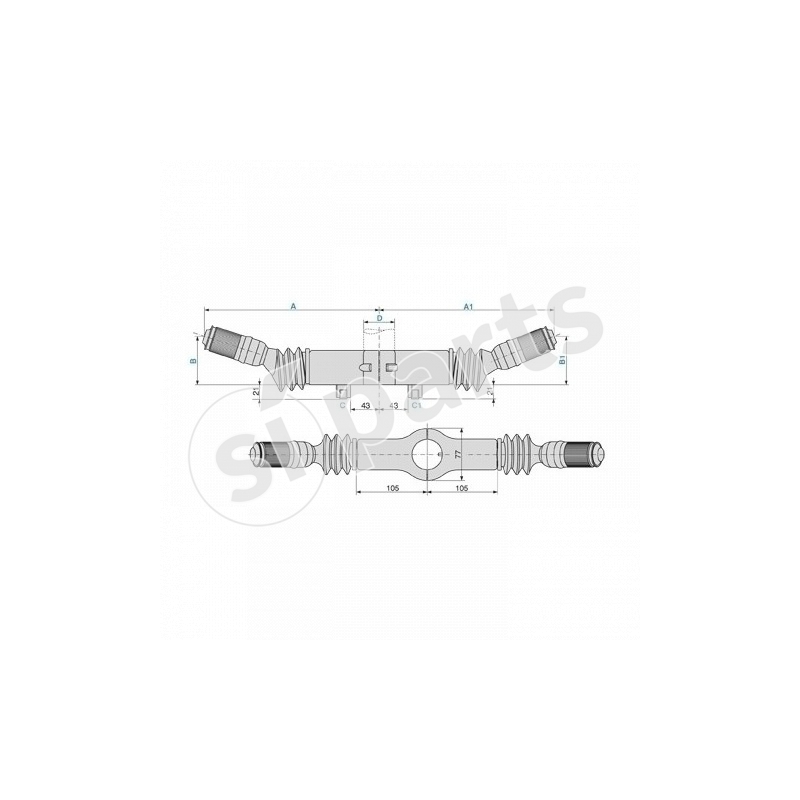

length lever mm
201-300
steering height mm
0-100
length lever 1 mm
201-300
steering height 1 mm
0-100
fixing
column 45 mm
type
doppio
technology
frontali in aria
type connection
deutsch 12 vie
deutsch 4 vie
length lever mm detail
240
steering height mm detail
58
length lever 1 mm detail
255
steering height 1 mm detail
88
model type
serie 2000
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - windscreen washer
attivo
function - intermittent s
attivo
function - windscreen 1
attivo
function - windscreen 2
attivo
function - forward gear
attivo
function - neutral
attivo
function - reverse gear
attivo
function - block
attivo
function - switch
attivo
