The image shown here is for illustrative purposes only.

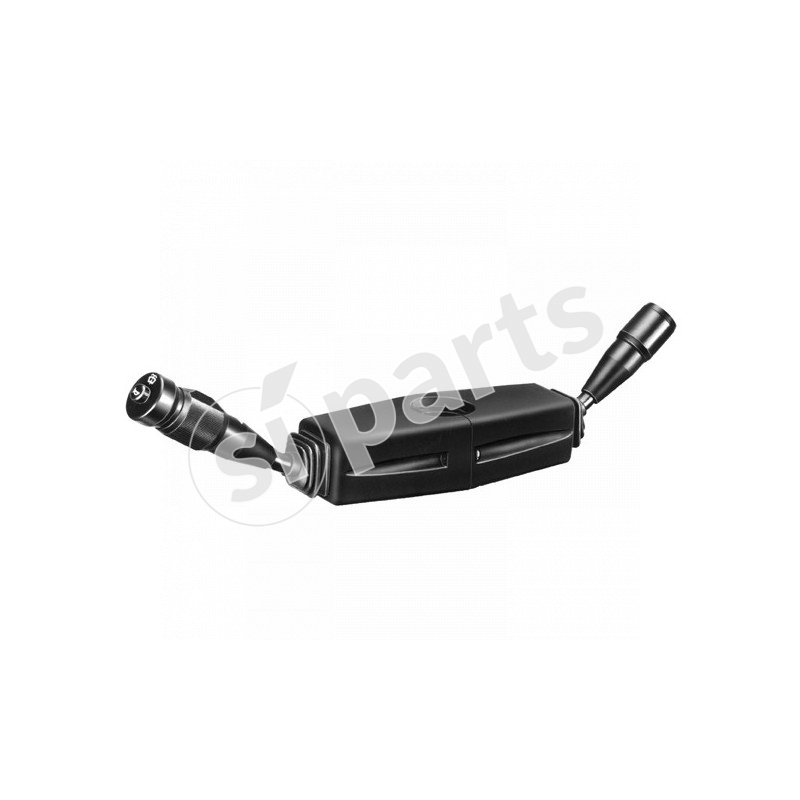

STEERING COLUMN SWITCH
Code: 01.1071.0000.01
Doc. Code: 01-1071-0000-01
€292.00
Tax excluded
(356.24 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| windscreen washer | 5a | 2,5a |
| intermittent s | 5a | 2,5a |
| windscreen 1 | 5a | 2,5a |
| windscreen 2 | 5a | 2,5a |
length lever mm
201-300
length lever 1 mm
201-300
steering height mm
0-100
steering height 1 mm
0-100
connection length mm
501-600
connection length 1 mm
501-600
fixing
column 45 mm
type
doppio
technology
frontali in aria
length lever mm detail
247
length lever 1 mm detail
247
steering height mm detail
96
steering height 1 mm detail
96

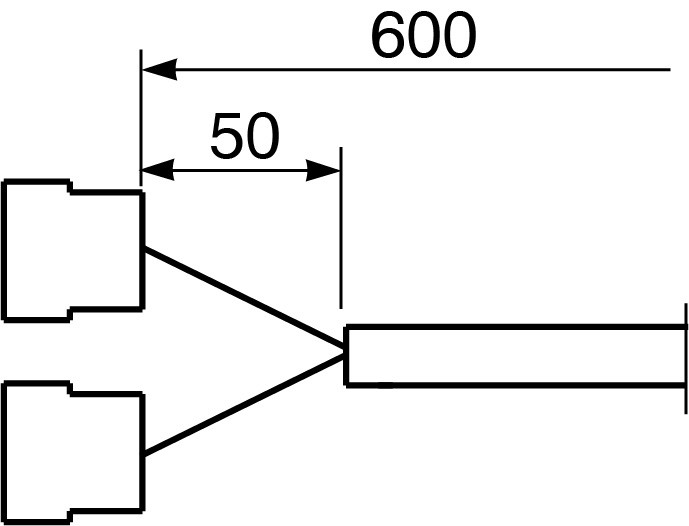

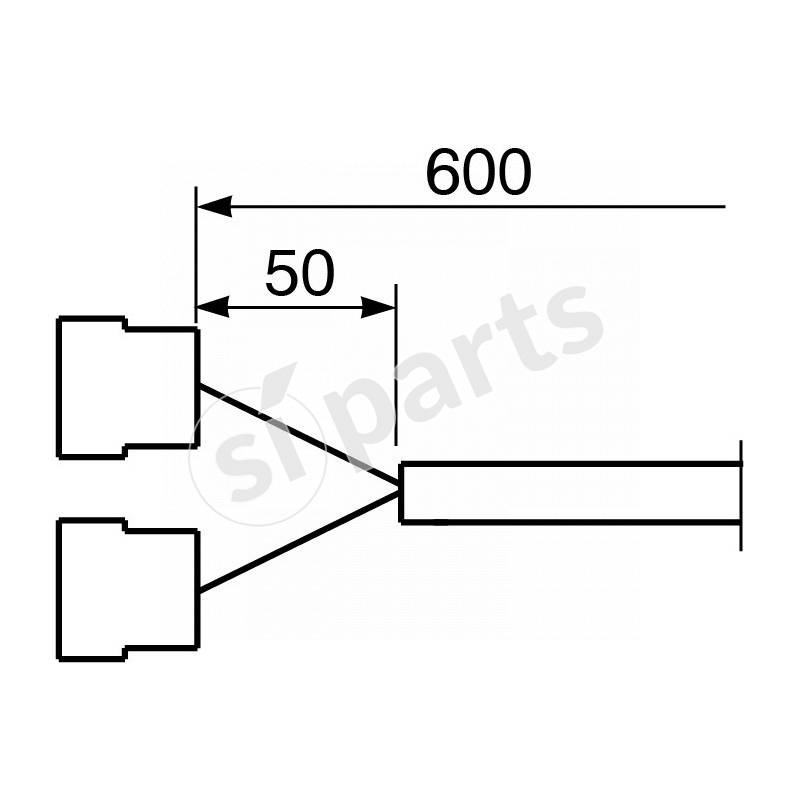

connection length mm detail
600
connection length 1 mm detail
600
model type
serie 240
function - windscreen 2
attivo
function - windscreen 1
attivo
function - intermittent s
attivo
function - windscreen washer
attivo
