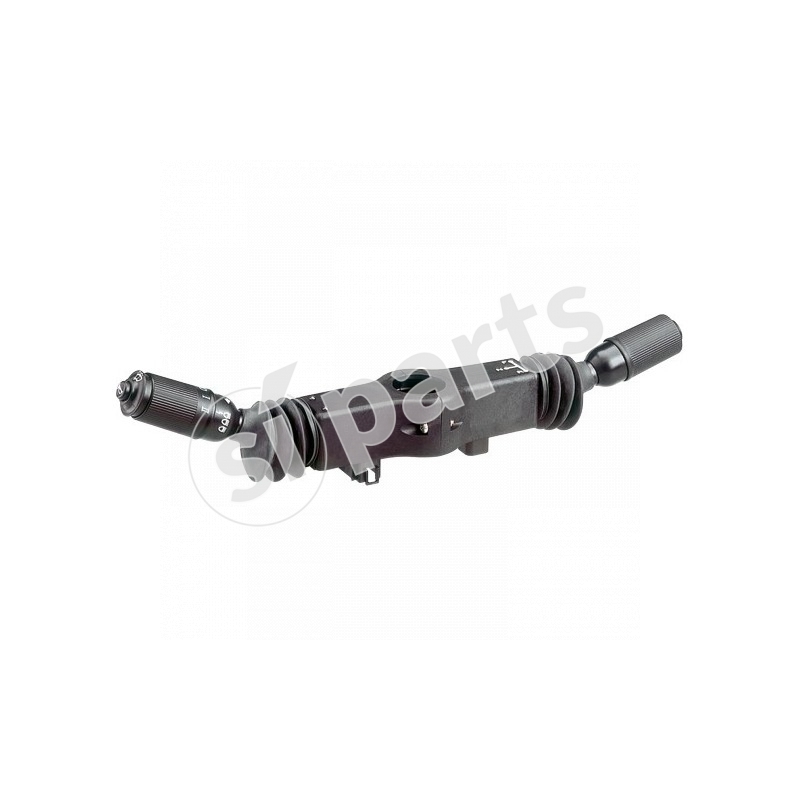

The image shown here is for illustrative purposes only.
SWITCHES + FORWARD-NEUTRAL-REVERSE SHIFTER + SPEED CONTROL SERIES 2000
Code: 01.1126.0000.01
Doc. Code: 01-1126-0000-01
€440.14
Tax excluded
(536.97 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
light control switch and wild washer icon silk screen printed on the housing
| function | peak load 12v | peak load 24v |
|---|---|---|
| low beam | 15a | 7a |
| high beam | 6a | 3a |
| flashing | 6a | 3a |
| direction | 6a | 3a |
| windscreen washer | 3a | 1,5a |
| intermittent s | 3a | 1,5a |
| windscreen 1 | 3a | 1,5a |
| windscreen 2 | 3a | 1,5a |
| horns | 3a | 1,5a |
| switch | 3a | 1,5a |
length lever mm
201-300
steering height mm
0-100
length lever 1 mm
201-300
steering height 1 mm
0-100
fixing
column 45 mm
type
doppio
technology
frontali in aria
type connection
deutsch 12 vie
deutsch 12 vie
length lever mm detail
220
steering height mm detail
74
length lever 1 mm detail
220
steering height 1 mm detail
74
model type
serie 2000
type connection
deutsch 6 vie
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - rientro automatico
attivo
function - windscreen washer
attivo
function - intermittent s
attivo
function - windscreen 1
attivo
function - windscreen 2
attivo
function - switch
attivo
