The image shown here is for illustrative purposes only.

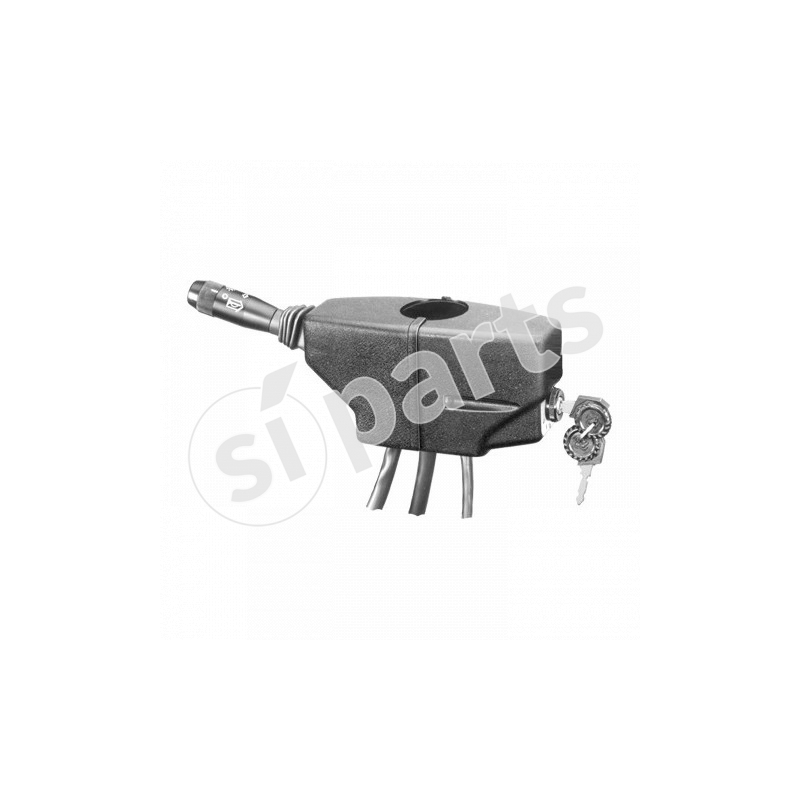

STEERING COLUMN SWITCH
Code: 01.217.000.01
(0 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horns | 5a | 3a |
| direction | 7a | 5a |

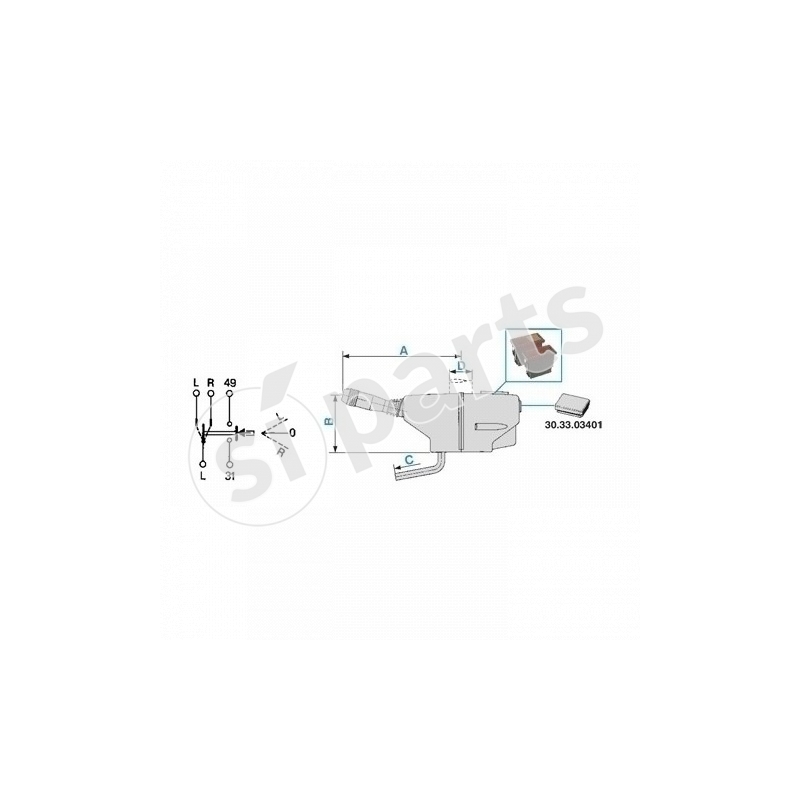

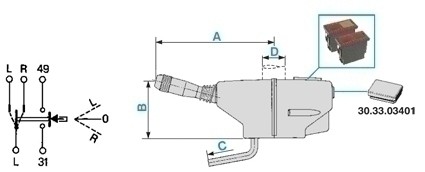

length lever mm
201-300
steering height mm
101-200
connection length mm
201-300
fixing
column 38 mm
type
single
technology
frontali in aria
length lever mm detail
210
steering height mm detail
102
connection length mm detail
230
model type
serie 190
protection housing
polyamide
lever covering
polyamide + functions symbols
color of cap
black
type of cap
neoprene rubber
type of interior lever
metallic
function - horn
attivo
function - direction
attivo
