STEERING COLUMN SWITCH
Code: 01.265.000.01
Doc. Code: 01-265-000-01
Pack 25 pieces.
€6,657.50
(€266.30 Cad.)
Tax excluded
(8122.15 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

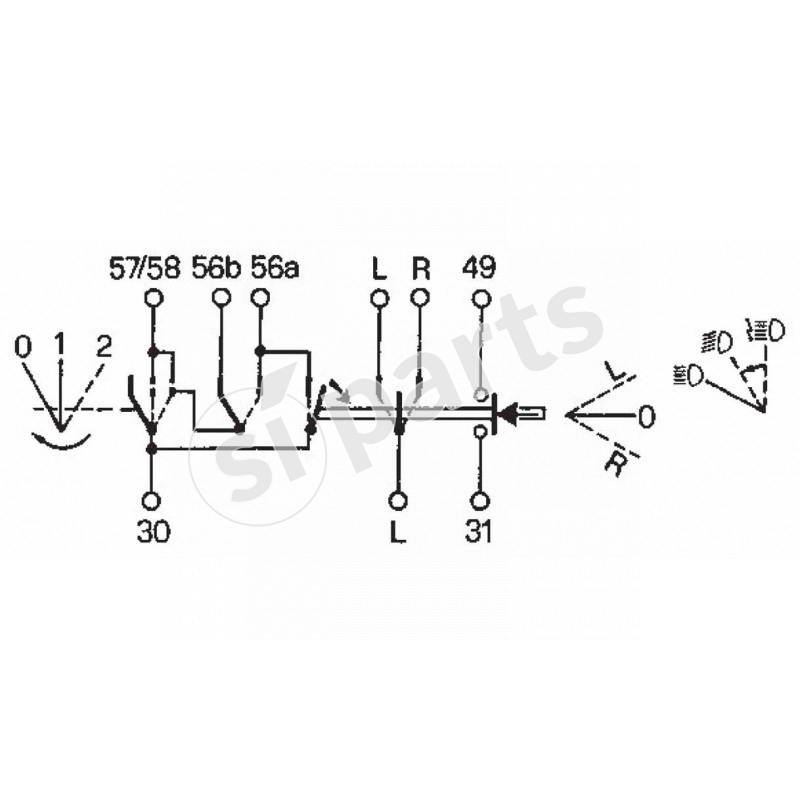

| function | peak load 12v | peak load 24v |
|---|---|---|
| horns | 5a | 3a |
| high beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 7a | 5a |
| direction | 7a | 5a |
| main lighting | 5a | 3a |
| forward gear | 8a | 5a |
| reverse gear | 8a | 5a |

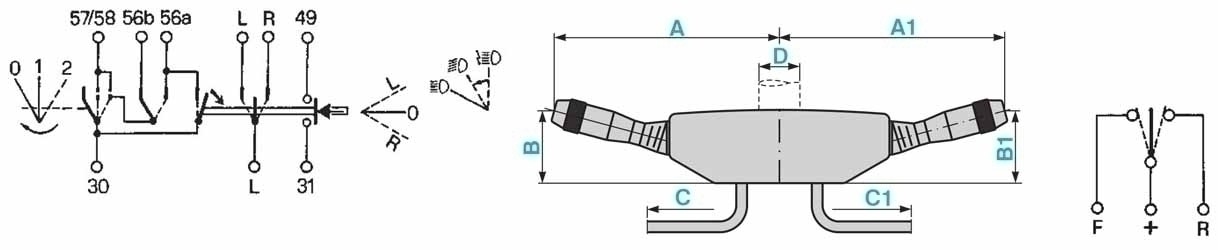

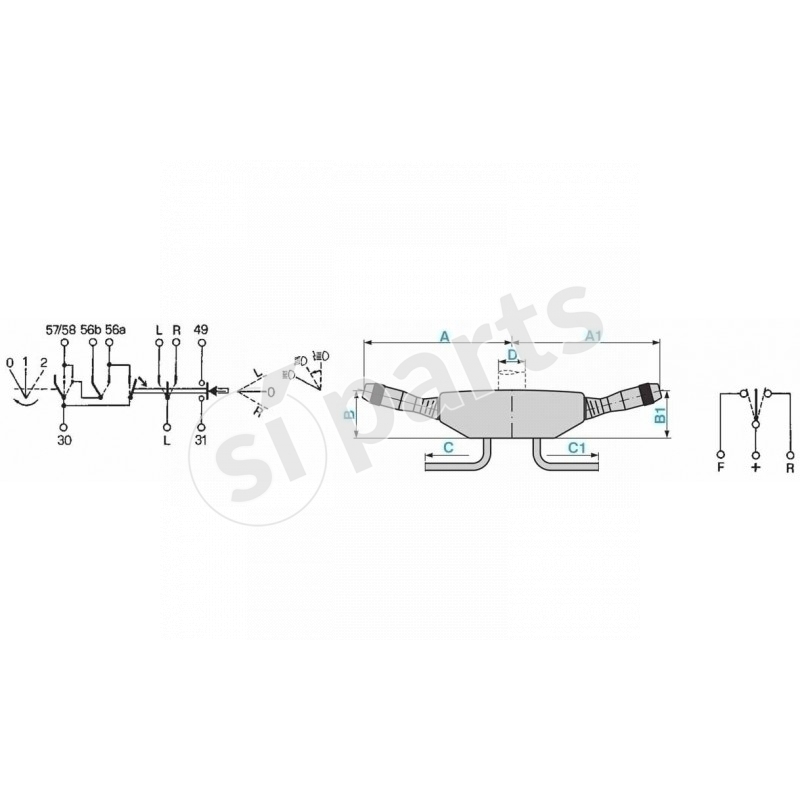

length lever mm
201-300
steering height mm
0-100
length lever 1 mm
201-300
steering height 1 mm
0-100
connection length mm
1101-1200
connection length 1 mm
1101-1200
fixing
column 38 mm
type
doppio
technology
frontali in aria
length lever mm detail
210
steering height mm detail
67
length lever 1 mm detail
210
steering height 1 mm detail
67
connection length mm detail
1200
connection length 1 mm detail
1200
model type
serie 190
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - main lighting
attivo
function - forward gear
attivo
function - reverse gear
attivo
