The image shown here is for illustrative purposes only.

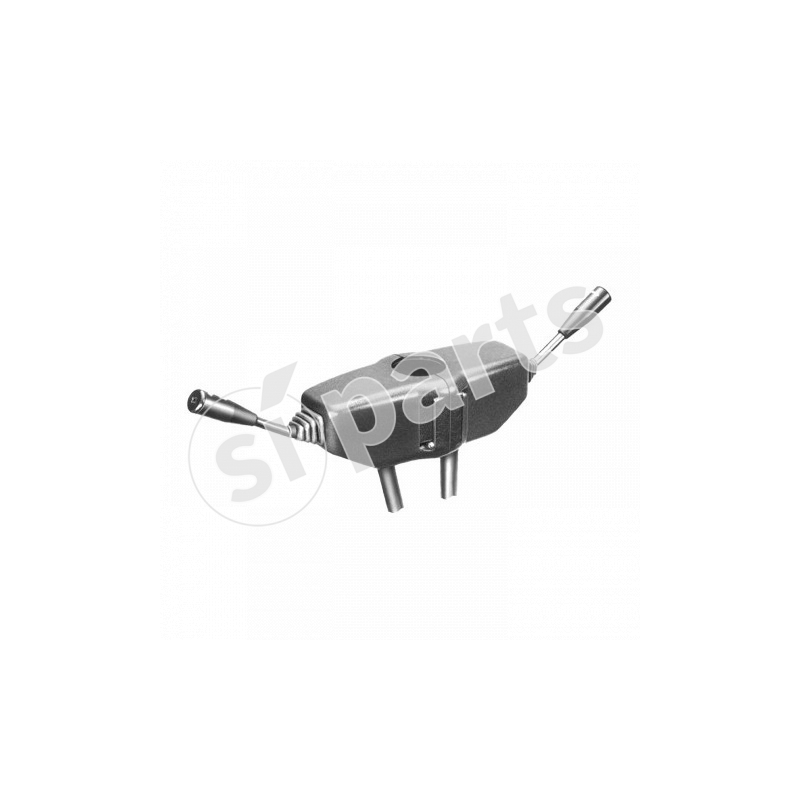

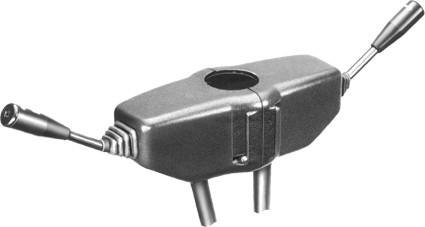

STEERING COLUMN SWITCH
Code: 01.281.000.01
Doc. Code: 01-281-000-01
€205.09
Tax excluded
(250.21 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horns | 5a | 3a |
| direction | 7a | 7a |
| forward gear | 8a | 5a |
| reverse gear | 8a | 5a |

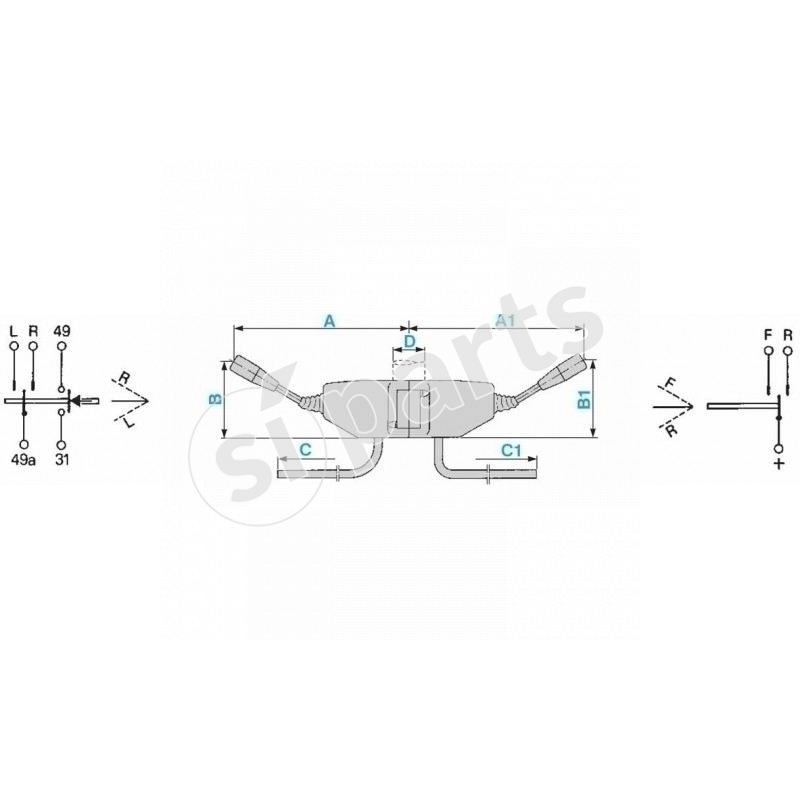

length lever mm
201-300
steering height mm
101-200
length lever 1 mm
201-300
steering height 1 mm
101-200
connection length mm
901-1000
connection length 1 mm
901-1000
fixing
column 38 mm
type
doppio
technology
frontali in aria
length lever mm detail
205
steering height mm detail
116
length lever 1 mm detail
205
steering height 1 mm detail
116
connection length mm detail
1000
connection length 1 mm detail
1000
model type
serie 281
type of lever
metallic with black varnishing
knob lever
polyamide
type of cap
neoprene rubber
color of cap
black
protection housing
black polyamide
function - horn
attivo
function - direction
attivo
function - forward gear
attivo
function - reverse gear
attivo
