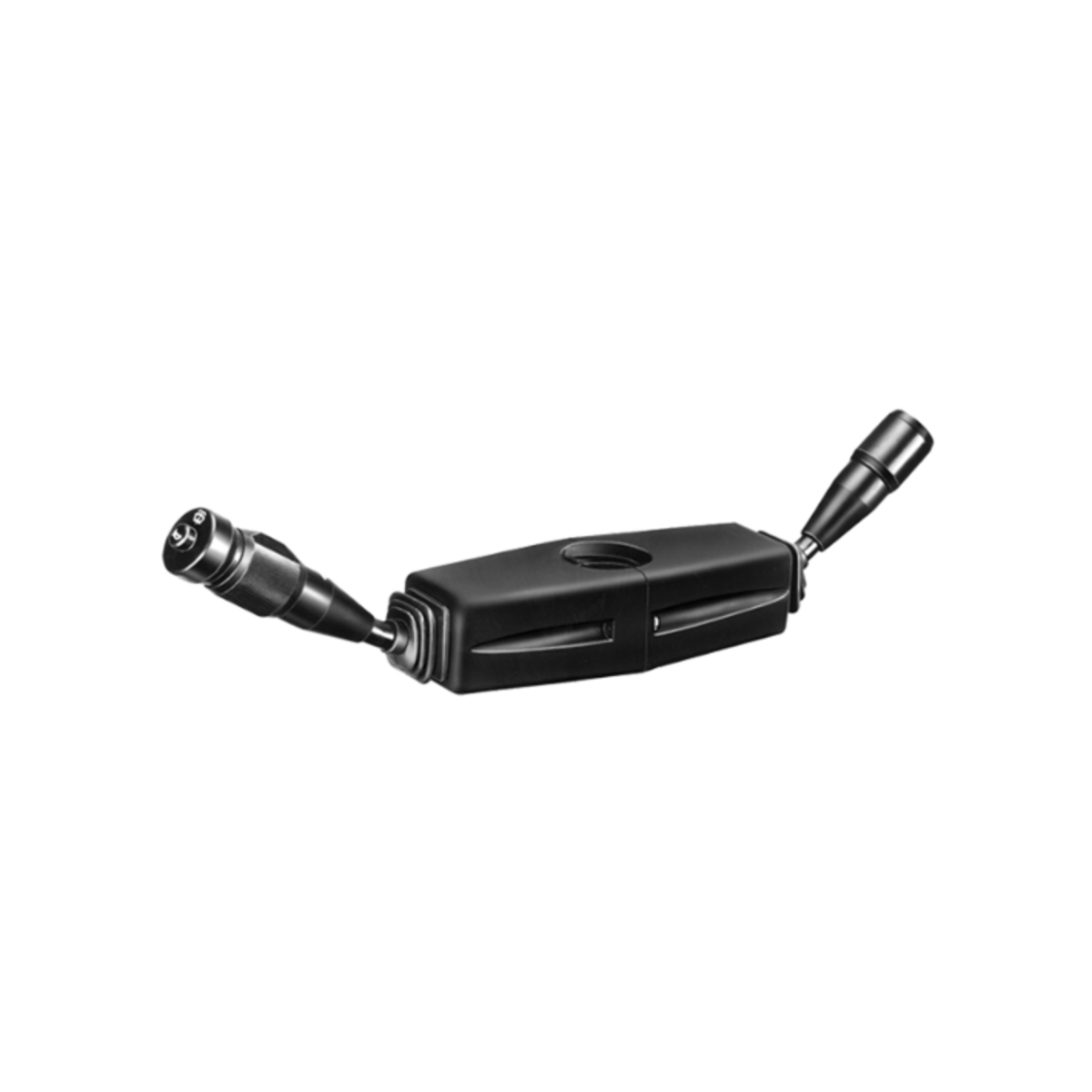

STEERING COLUMN SWITCH
Code: 01.339.000.01
Doc. Code: 01-339-000-01
€428.81
Tax excluded
(523.15 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horns | 5a | 2,5a |
| low beam | 7a | 3,5a |
| high beam | 7a | 3,5a |
| flashing | 7a | 3,5a |
| direction | 7a | 3,5a |
| windscreen washer | 5a | 2,5a |
| intermittent s | 5a | 2,5a |
| windscreen 1 | 5a | 2,5a |
| windscreen 2 | 5a | 2,5a |
| forward gear | 8a | 4a |
| reverse gear | 8a | 4a |
| kd | 3a | 1,5a |
| speed 1 | 5a | 2,5a |
| speed 2 | 5a | 2,5a |
| speed 3 | 5a | 2,5a |
| speed 4 | 5a | 2,5a |

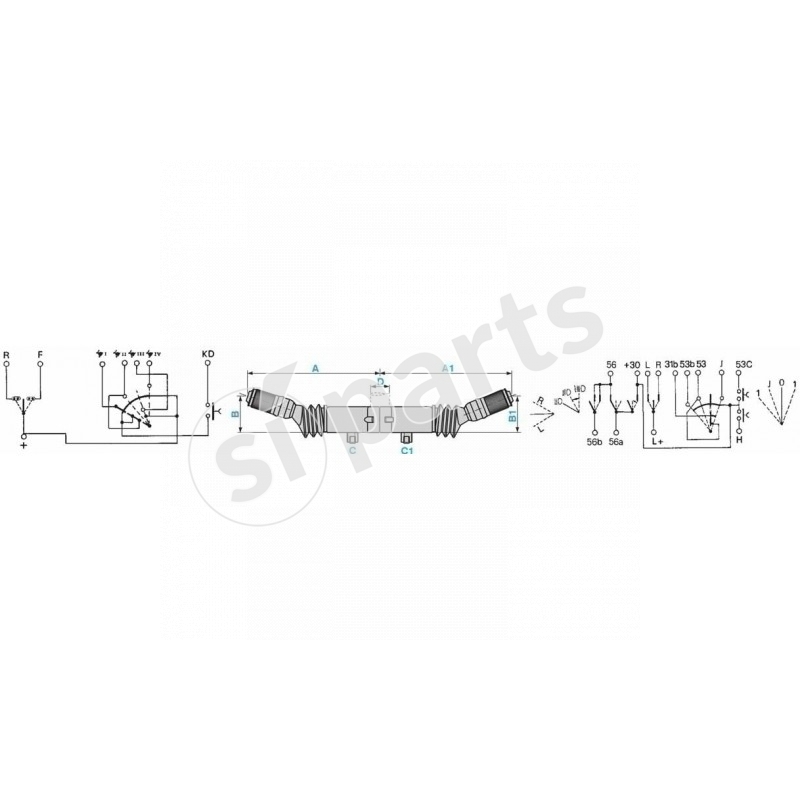

length lever mm
201-300
steering height mm
0-100
connection length mm
401-500
length lever 1 mm
201-300
steering height 1 mm
0-100
connection length 1 mm
401-500
fixing
column 45 mm
type
doppio
technology
frontali in aria
length lever mm detail
267
steering height mm detail
95
connection length mm detail
500
length lever 1 mm detail
247
steering height 1 mm detail
96
connection length 1 mm detail
500
model type
serie 240
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - windscreen washer
attivo
function - intermittent s
attivo
function - windscreen 1
attivo
function - windscreen 2
attivo
function - forward gear
attivo
function - reverse gear
attivo
function - speed 1
attivo
function - speed 2
attivo
function - speed 3
attivo
function - speed 4
attivo
function - kd
attivo
