The image shown here is for illustrative purposes only.

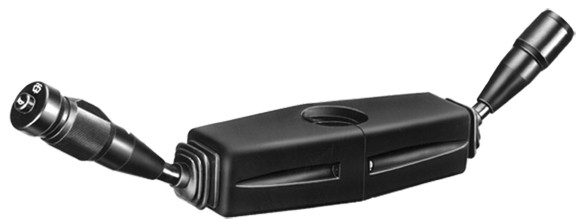

STEERING COLUMN SWITCH
Code: 01.442.000.01
Doc. Code: 01-442-000-01
€513.85
Tax excluded
(626.9 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horns | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 7a | 5a |
| direction | 7a | 5a |
| main lighting | 5a | 3a |

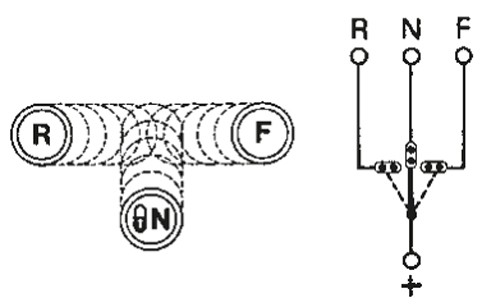

| forward gear | 2a | 1a |
| neutral | 5a | 3a |
| reverse gear | 5a | 3a |

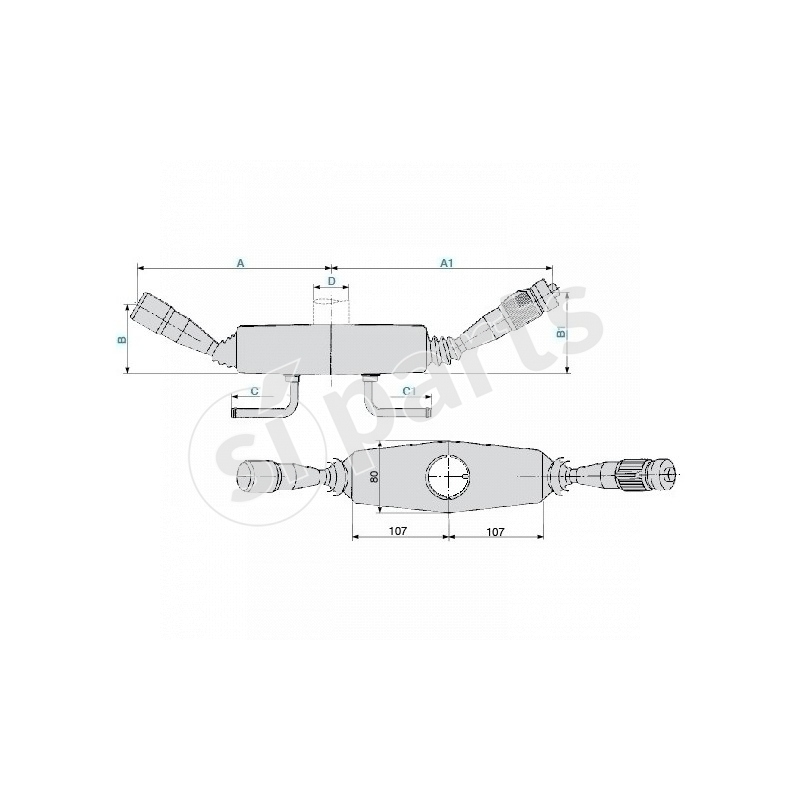

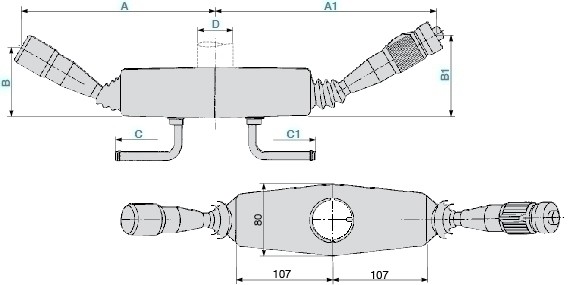

length lever mm
201-300
steering height mm
0-100
connection length mm
301-400
length lever 1 mm
201-300
steering height 1 mm
0-100
connection length 1 mm
301-400
fixing
column 45 mm
type
doppio
technology
microswitch
length lever mm detail
230
steering height mm detail
56
connection length mm detail
350
length lever 1 mm detail
260
steering height 1 mm detail
65
connection length 1 mm detail
350
model type
serie 240
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - main lighting
attivo
function - forward gear
attivo
function - neutral
attivo
function - reverse gear
attivo
function - block
attivo
