The image shown here is for illustrative purposes only.

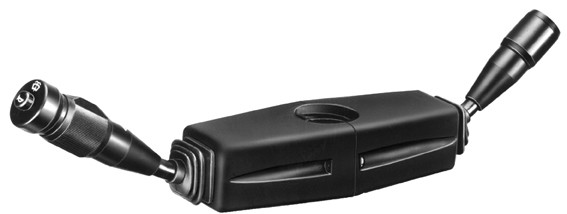

STEERING COLUMN SWITCH
Code: 01.551.000.01
(0 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horns | 5a | 2,5a |
| low beam | 7a | 3,5a |
| high beam | 7a | 3,5a |
| flashing | 7a | 3,5a |
| direction | 7a | 3,5a |
| main lighting | 5a | 2,5a |
| forward gear | 8a | 4a |
| neutral | 8a | 4a |
| reverse gear | 8a | 4a |
| slow gear | 8a | 4a |
| fast gear | 8a | 4a |
length lever mm
201-300
steering height mm
0-100
connection length mm
801-900
length lever 1 mm
201-300
steering height 1 mm
0-100
connection length 1 mm
801-900
fixing
column 45 mm
type
doppio
technology
frontali in aria
length lever mm detail
256
steering height mm detail
95
connection length mm detail
900
length lever 1 mm detail
247
steering height 1 mm detail
96
connection length 1 mm detail
900
model type
serie 240
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - main lighting
attivo
function - fast gear
attivo
function - low gear
attivo
function - gear speed
attivo
function - forward gear
attivo
function - neutral
attivo
function - reverse gear
attivo
