The image shown here is for illustrative purposes only.
STEERING COLUMN SWITCH
Code: 01.0614.0500.01
(0 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| low beam | 7a | 3,5a |
| high beam | 7a | 3,5a |
| flashing | 7a | 3,5a |
| direction | 5a | 2,5a |
| windscreen washer | 5a | 2,5a |
| windscreen 1 | 5a | 2,5a |
| windscreen 2 | 5a | 2,5a |

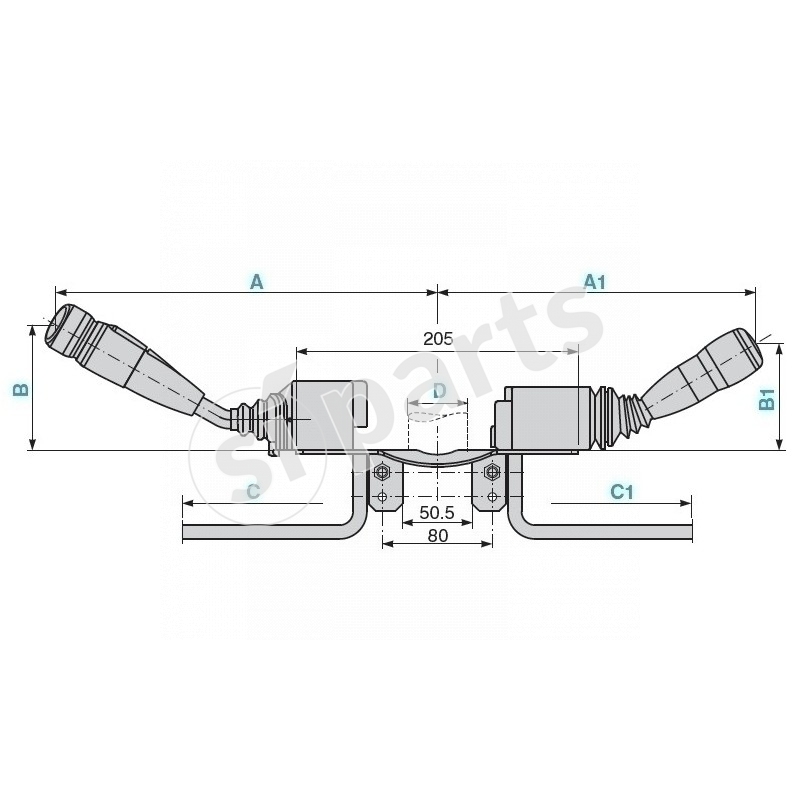

length lever mm
201-300
steering height mm
0-100

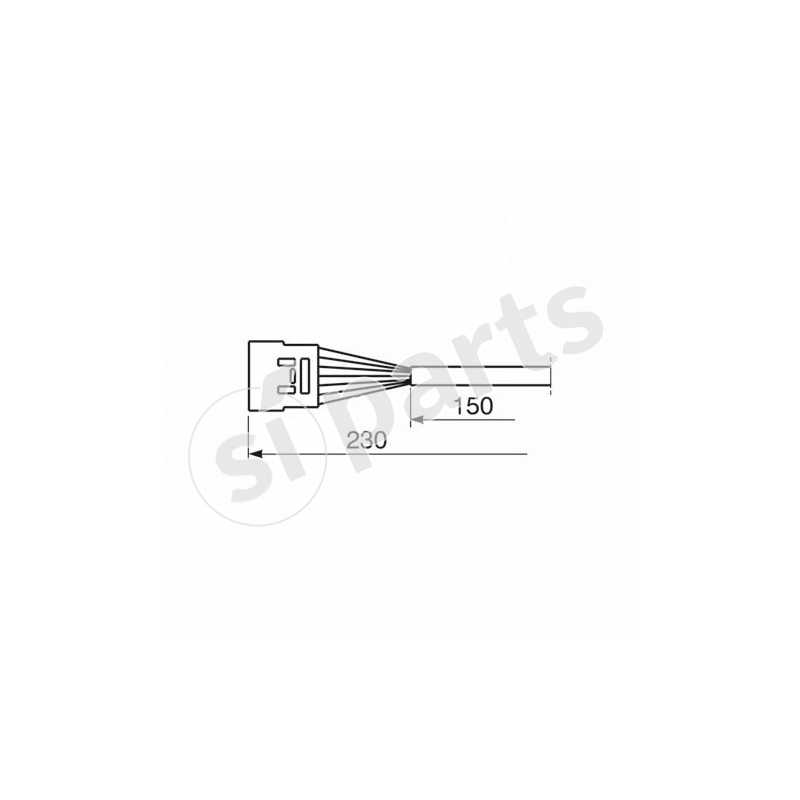

connection length mm
201-300
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
280
steering height mm detail
90
connection length mm detail
230
model type
serie 240
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - windscreen washer
attivo
function - windscreen 1
attivo
function - windscreen 2
attivo
