The image shown here is for illustrative purposes only.

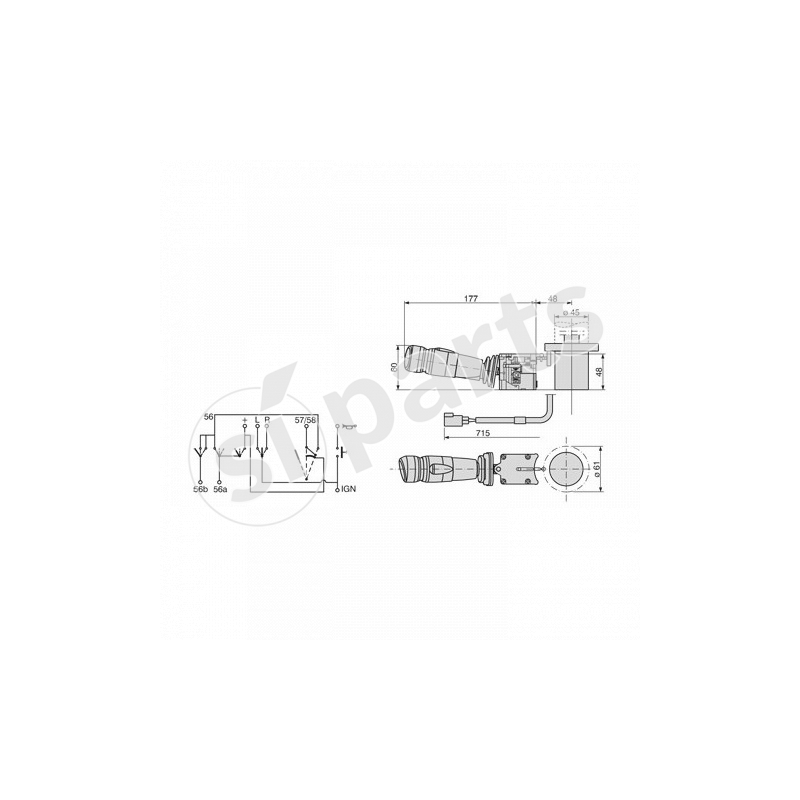

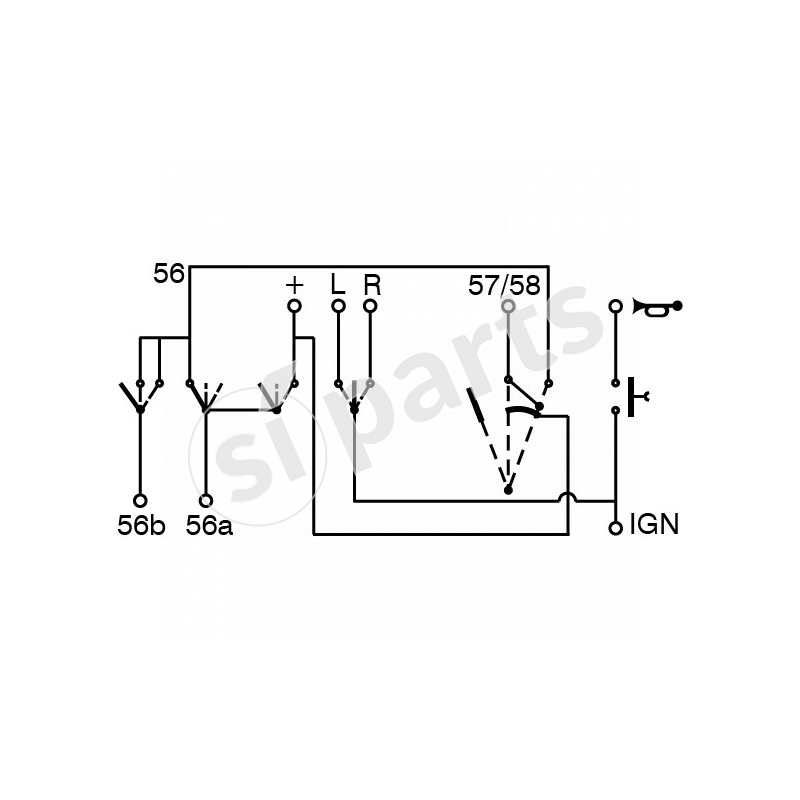

SELF CANCELING STEERING COLUMN
Code: 01.0627.0000.01
Doc. Code: 01-0627-0000-01
€147.54
Tax excluded
(180 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 2,5 |
| low beam | 7a | 3,5a |
| high beam | 7a | 3,5a |
| flashing | 7a | 3,5a |
| direction | 5a | 2,5a |
| main lighting | 5a | 2,5a |
length lever mm
101-200
steering height mm
0-100
connection length mm
701-800
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
177
steering height mm detail
60
connection length mm detail
715
model type
serie 240
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - main lighting
attivo
