The image shown here is for illustrative purposes only.

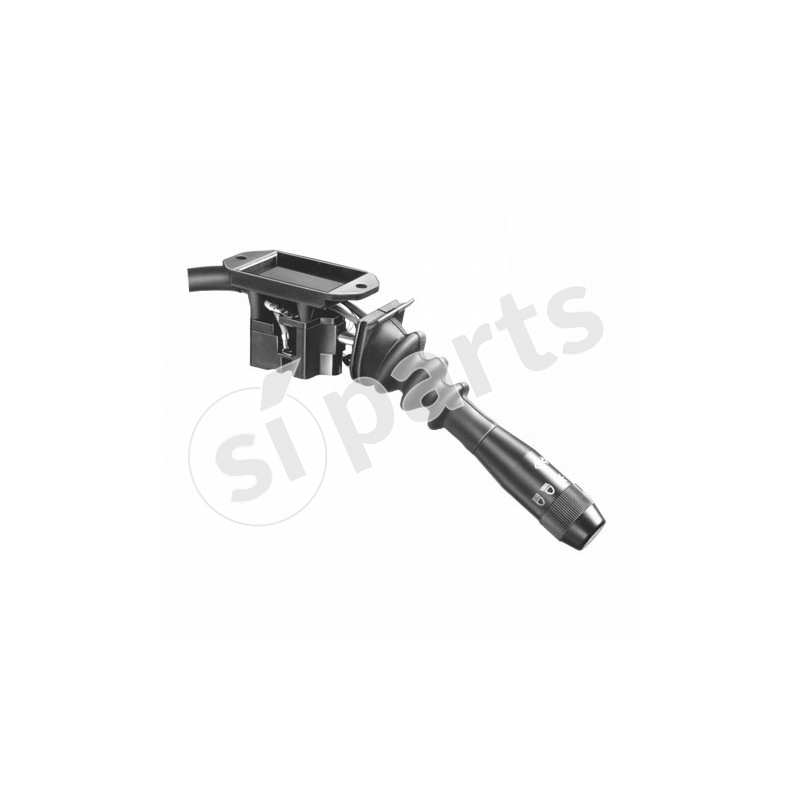

STEERING COLUMN SWITCH
Code: 01.0680.0500.01
Doc. Code: 01-0680-0500-01
€135.00
Tax excluded
(164.7 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 5a | 3a |
| direction | 7a | 5a |
| main lighting | 5a | 3a |

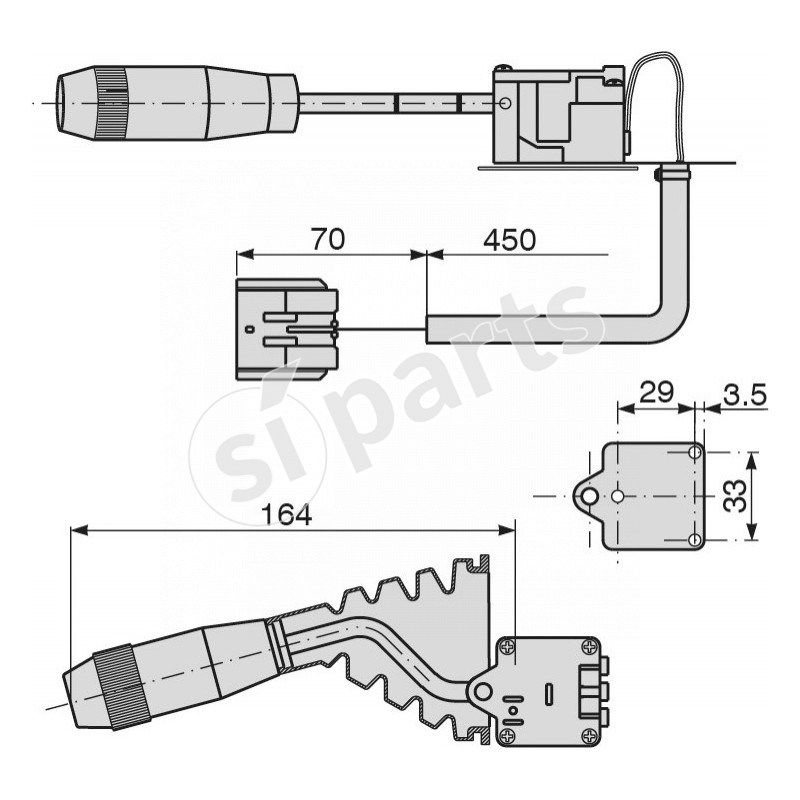

length lever mm
101-200
steering height mm
0-100
0-100
connection length mm
501-600
fixing
dashboard
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
164
steering height mm detail
20
20
connection length mm detail
520
model type
serie 190
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - main lighting
attivo
