The image shown here is for illustrative purposes only.

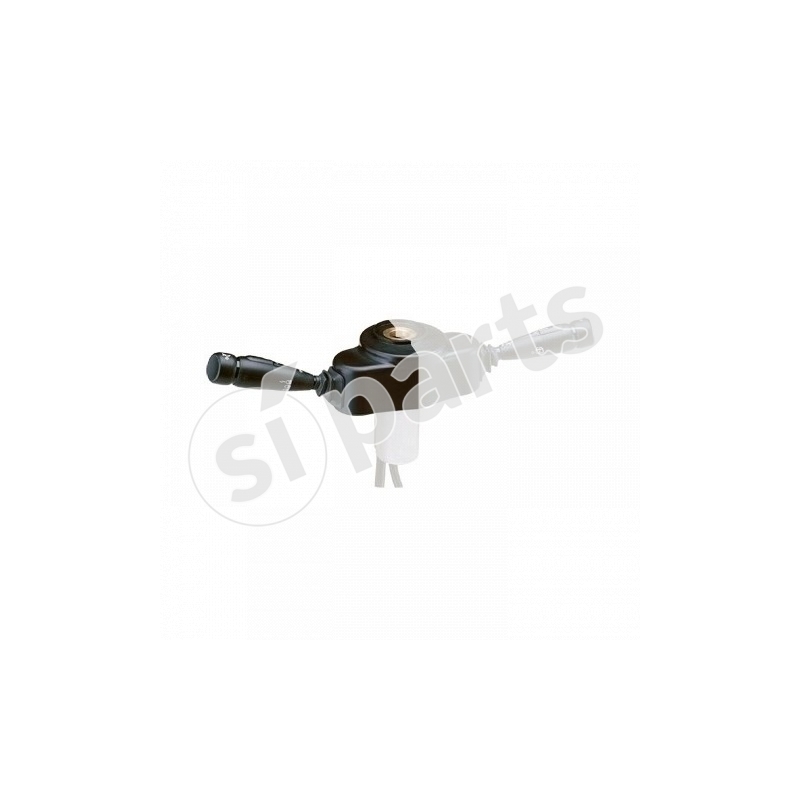

STEERING COLUMN SWITCH
Code: 01.0989.0500.01
Doc. Code: 01-0989-0500-01
€177.12
Tax excluded
(216.09 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 2,5a |
| low beam | 7a | 3,5a |
| high beam | 7a | 3,5a |
| flashing | 7a | 3,5a |
| direction | 5a | 2,5a |
| main lighting | 5a | 2,5a |
length lever mm
201-300
steering height mm
0-100

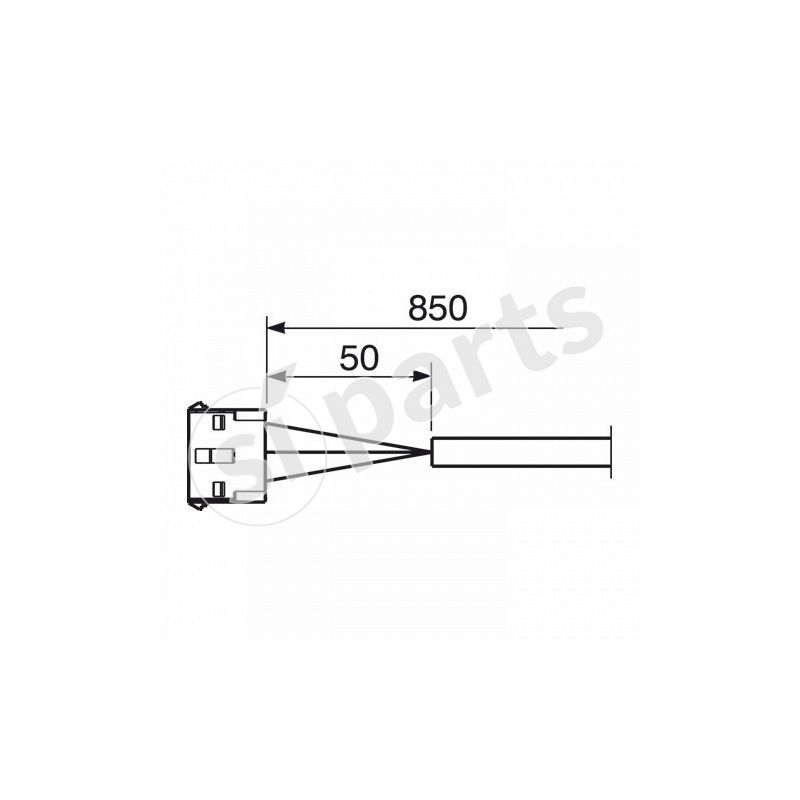

connection length mm
801-900
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
258
steering height mm detail
96
connection length mm detail
850
model type
serie 240
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - main lighting
attivo
