The image shown here is for illustrative purposes only.
STEERING COLUMN SWITCH
Code: 01.1054.0500.01
Doc. Code: 01-1054-0500-01
€170.64
Tax excluded
(208.18 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 2,5a |
| low beam | 7a | 3,5a |
| high beam | 7a | 3,5a |
| flashing | 7a | 3,5a |
| direction | 7a | 3,5a |
| windscreen washer | 5a | 2,5a |
| intermittent s | 5a | 2,5a |
| windscreen 1 | 5a | 2,5a |
| windscreen 2 | 5a | 2,5a |

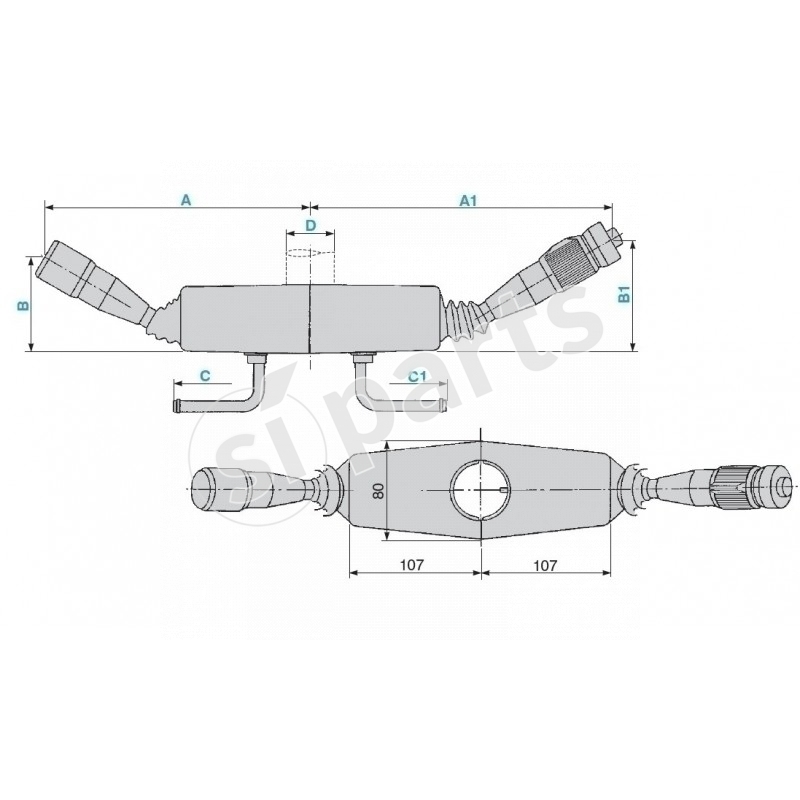

length lever mm
201-300
steering height mm
0-100

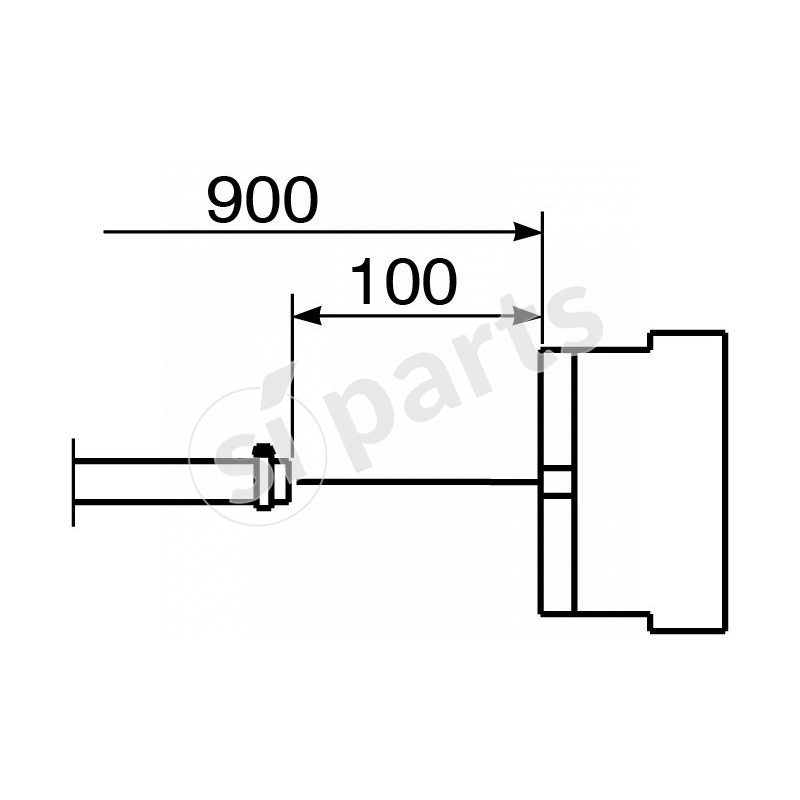

connection length mm
801-900
type
single
fitting position
rh
technology
frontali in aria
length lever mm detail
247
steering height mm detail
96
connection length mm detail
900
model type
serie 240
function - low beam
attivo
function - horn
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - windscreen washer
attivo
function - intermittent s
attivo
function - windscreen 1
attivo
function - windscreen 2
attivo
