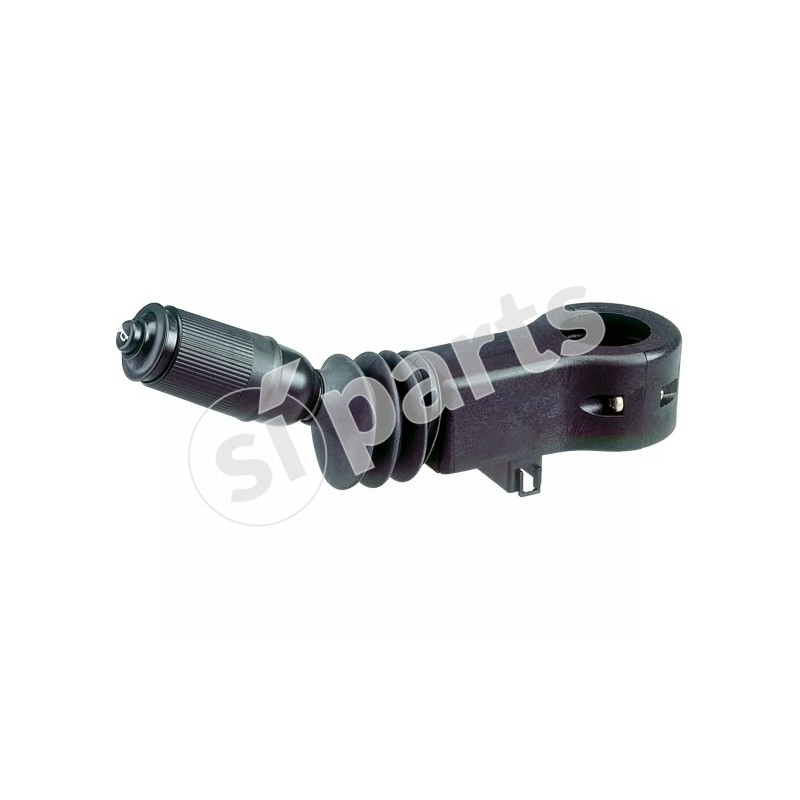

The image shown here is for illustrative purposes only.
STEERING COLUMN SWITCHES
Code: 01.1085.0000.01
Doc. Code: 01-1085-0000-01
€202.61
Tax excluded
(247.18 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description

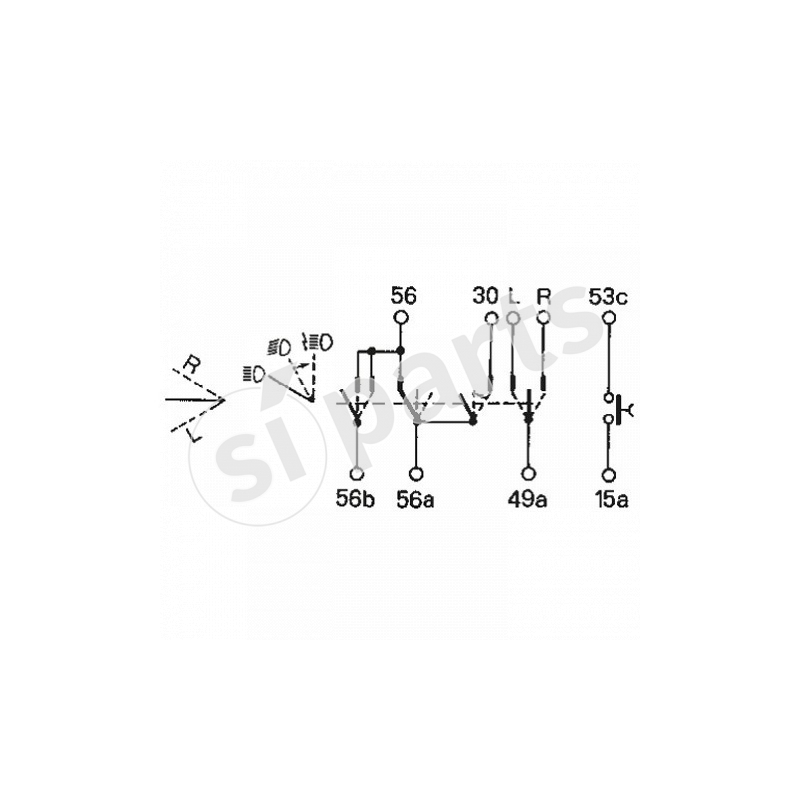

| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 3a | 1,5a |
| low beam | 6a | 3a |
| high beam | 6a | 3a |
| flashing | 6a | 3a |
| direction | 6a | 3a |

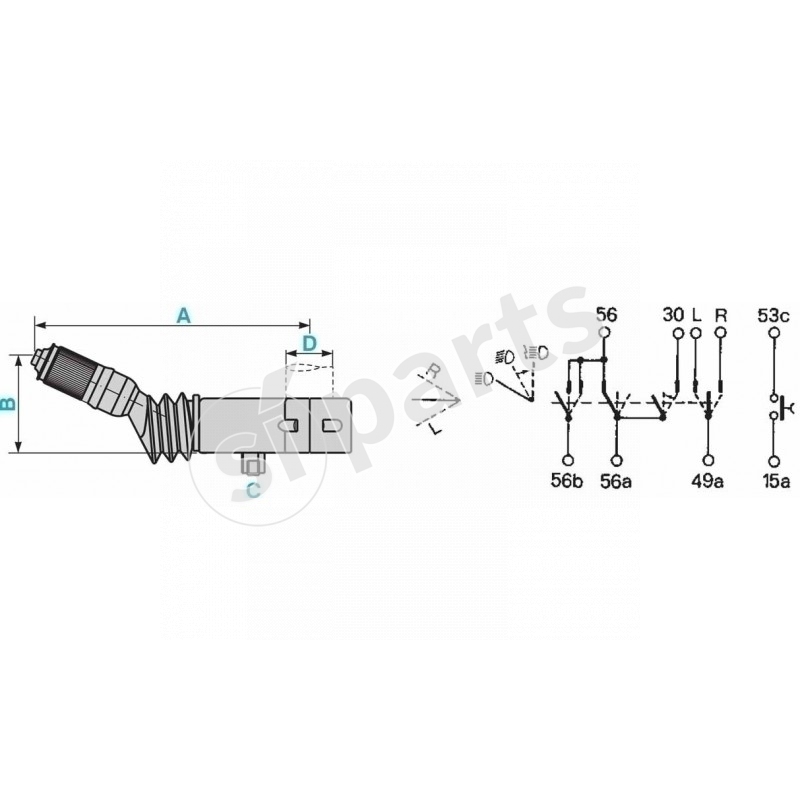

length lever mm
201-300
steering height mm
0-100
connection length mm
801-900
fixing
column 45 mm
type
single
fitting position
lh
technology
frontali in aria
type connection
deutsch 12 vie

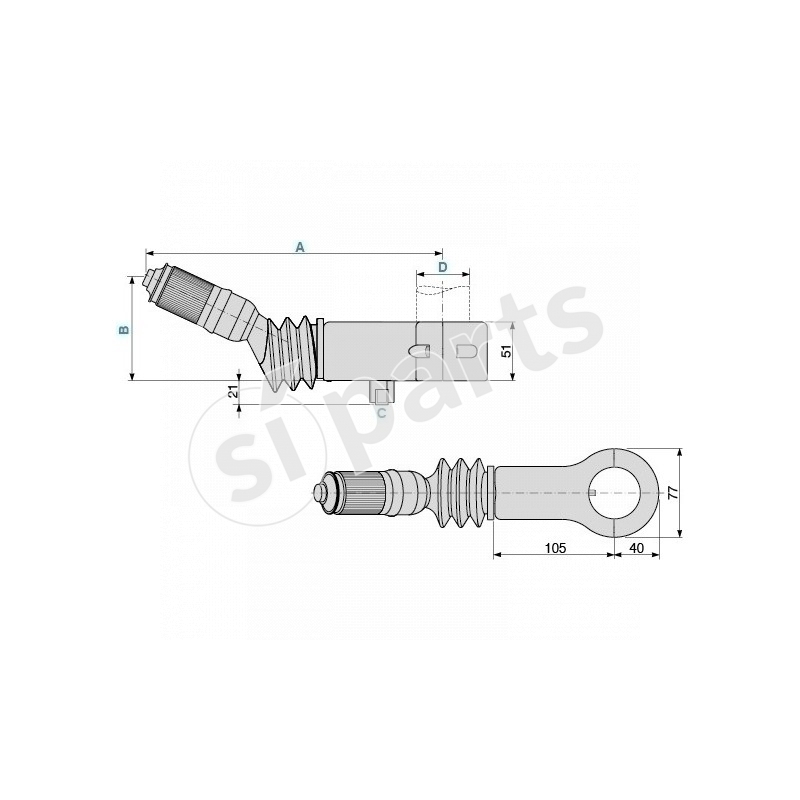

length lever mm detail
292
steering height mm detail
88
connection length mm detail
900
model type
serie 2000
function - direction
attivo
function - flashing
attivo
function - high beam
attivo
function - low beam
attivo
function - horn
attivo
function - rientro automatico
attivo
