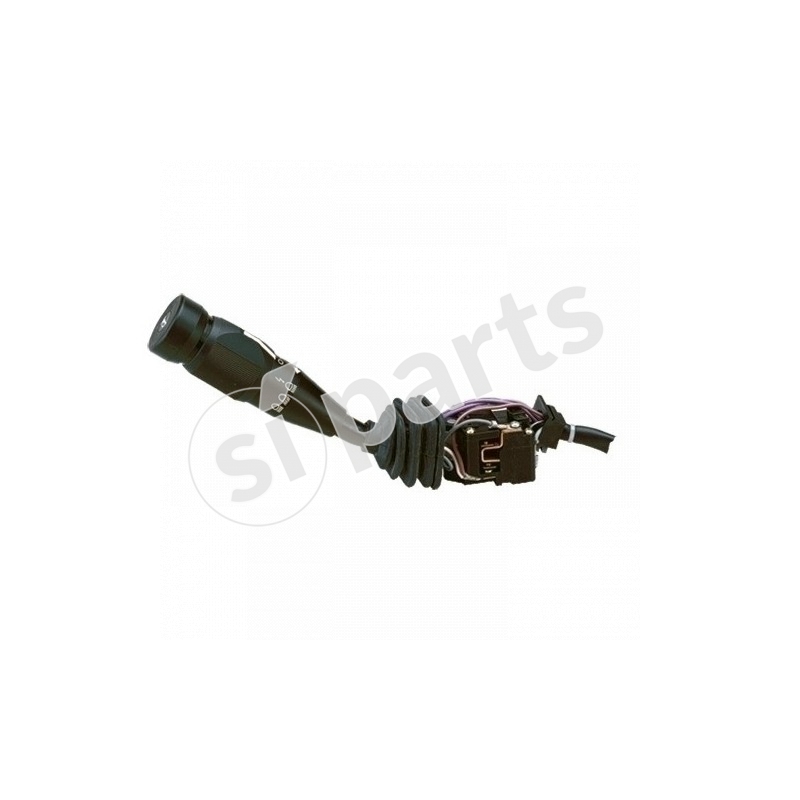

The image shown here is for illustrative purposes only.

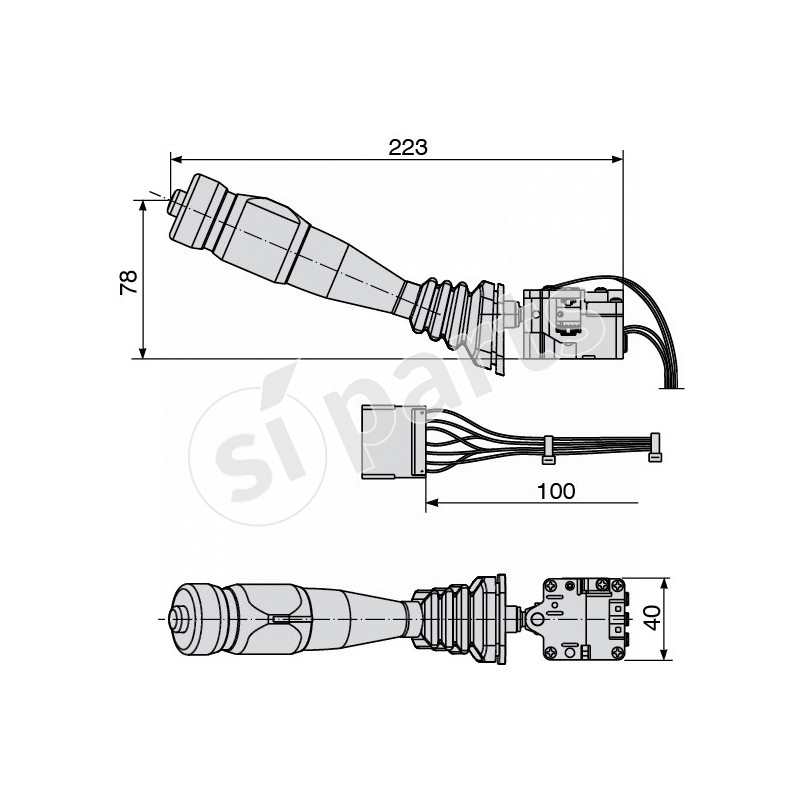

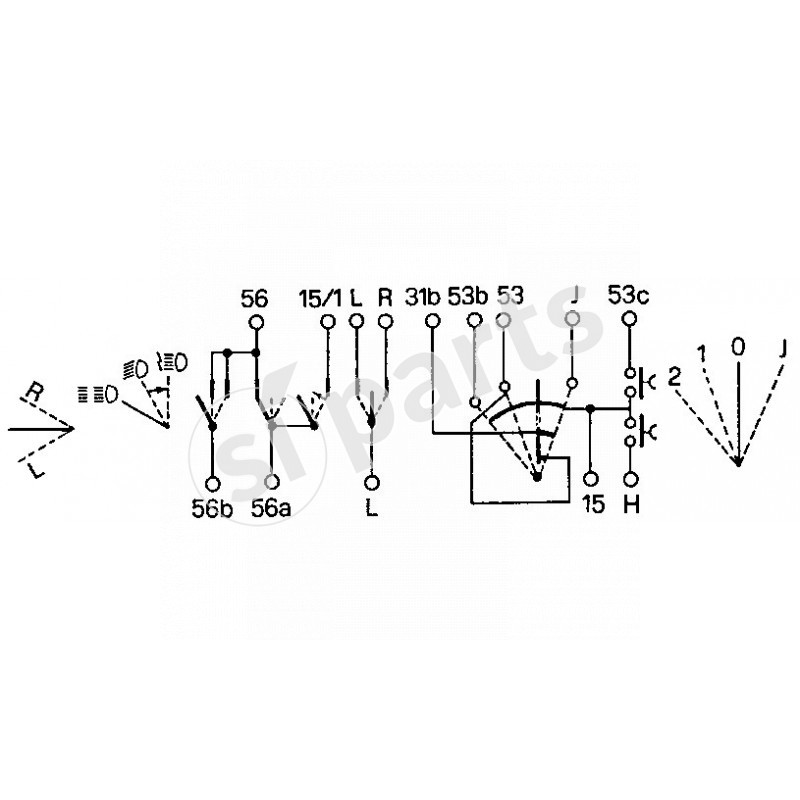

STEERING COLUMN SWITCH
Code: 01.1092.0000.01
Doc. Code: 01-1092-0000-01
€136.33
Tax excluded
(166.32 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 7a | 5a |
| direction | 7a | 5a |
| windscreen washer | 7a | 5a |
| intermittent s | 1,8a | 1a |
| windscreen 1 | 8a | 5a |
| windscreen 2 | 9a | 6a |
length lever mm
201-300
connection length mm
101-200
steering height mm
0-100
fixing
dashboard
type
single
fitting position
rh
technology
frontali in aria
length lever mm detail
208
connection length mm detail
200
steering height mm detail
91
model type
serie 240
function - intermittent s
attivo
function - windscreen washer
attivo
function - direction
attivo
function - flashing
attivo
function - high beam
attivo
function - low beam
attivo
function - horn
attivo
function - windscreen 1
attivo
function - windscreen 2
attivo
