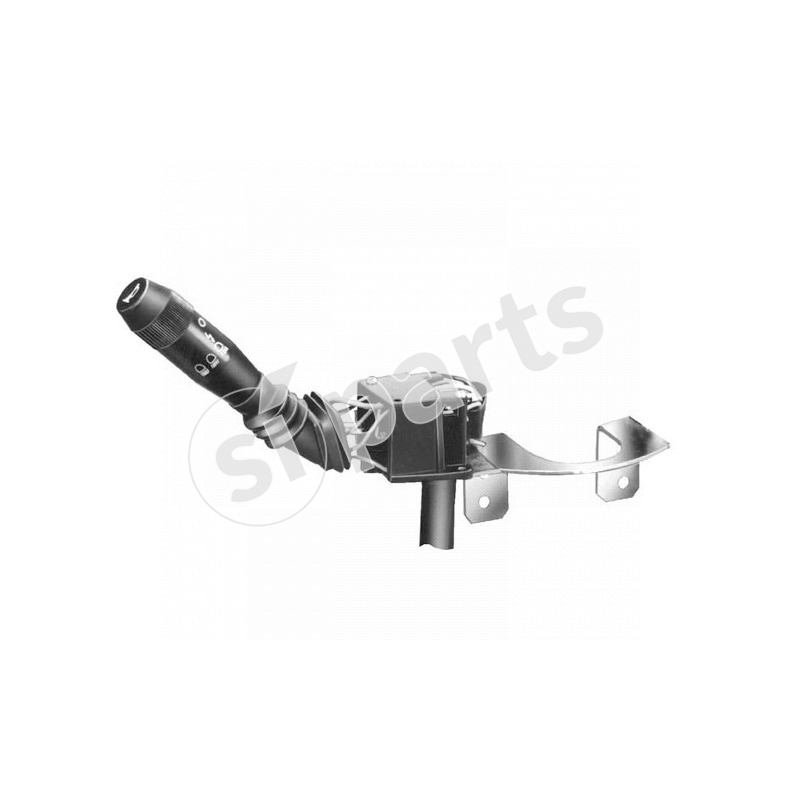

The image shown here is for illustrative purposes only.
LIGHT CONTROL SWITCHES
Code: 01.1115.0000.01
€160.40
Tax excluded
(195.69 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 5a | 3a |
| direction | 7a | 5a |
| main lighting | 5a | 3a |
length lever mm
101-200
steering height mm
0-100
connection length mm
701-800
fixing
column 45 mm
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
175
steering height mm detail
44
connection length mm detail
730
model type
serie 190
type of interior lever
metallic
lever covering
polyamide + functions symbols
type of cap
neoprene rubber
color of cap
black
protection housing
polyamide
rest bracket
zinc-plated steel
function - main lighting
attivo
function - direction
attivo
function - flashing
attivo
function - high beam
attivo
function - low beam
attivo
function - horn
attivo
