The image shown here is for illustrative purposes only.

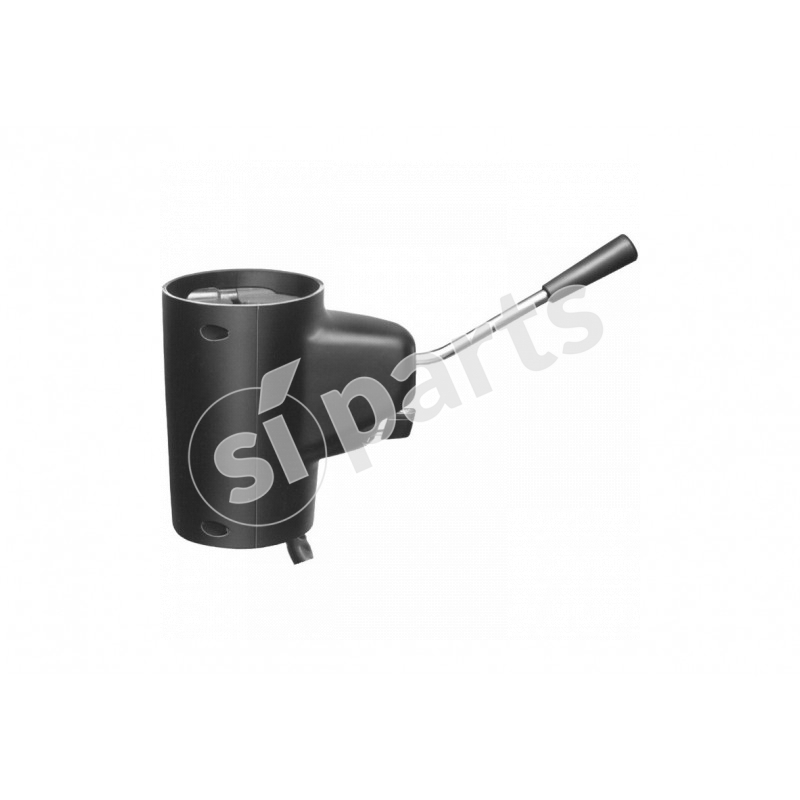

STEERING COLUMN SWITCH
Code: 01.120.000.01
(0 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 7a | 5a |
| direction | 7a | 5a |
| main lighting | 5a | 3 |
| fog lights | 7a | 5a |

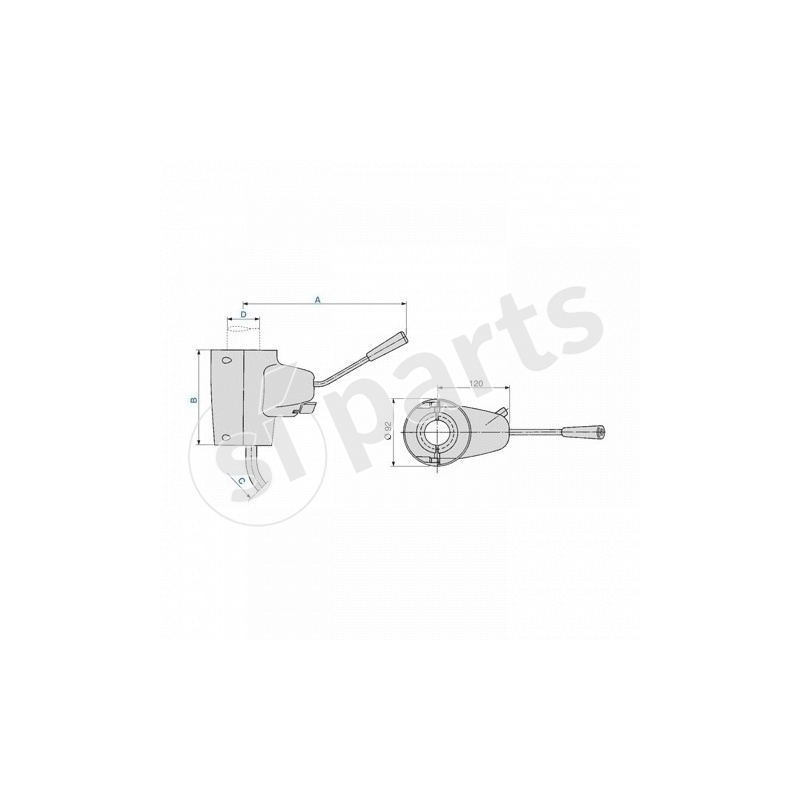

length lever mm
201-300
steering height mm
101-200

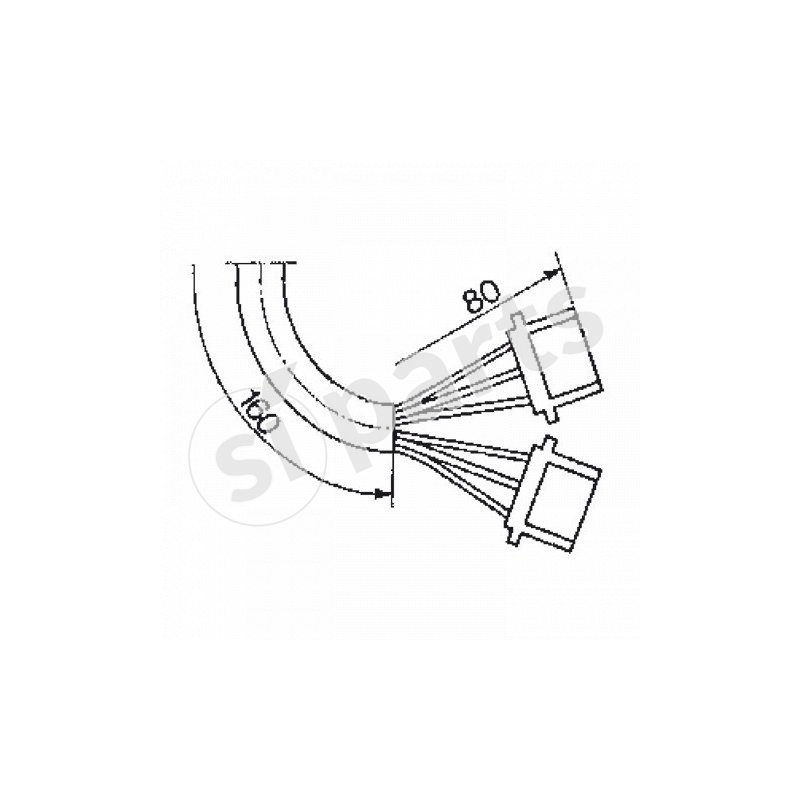

connection length mm
201-300
fixing
column 35 mm
type
single
fitting position
rh
technology
frontali in aria
length lever mm detail
224
steering height mm detail
132
connection length mm detail
240
model type
serie 106
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - main lighting
attivo
function - fog lights
attivo
