The image shown here is for illustrative purposes only.

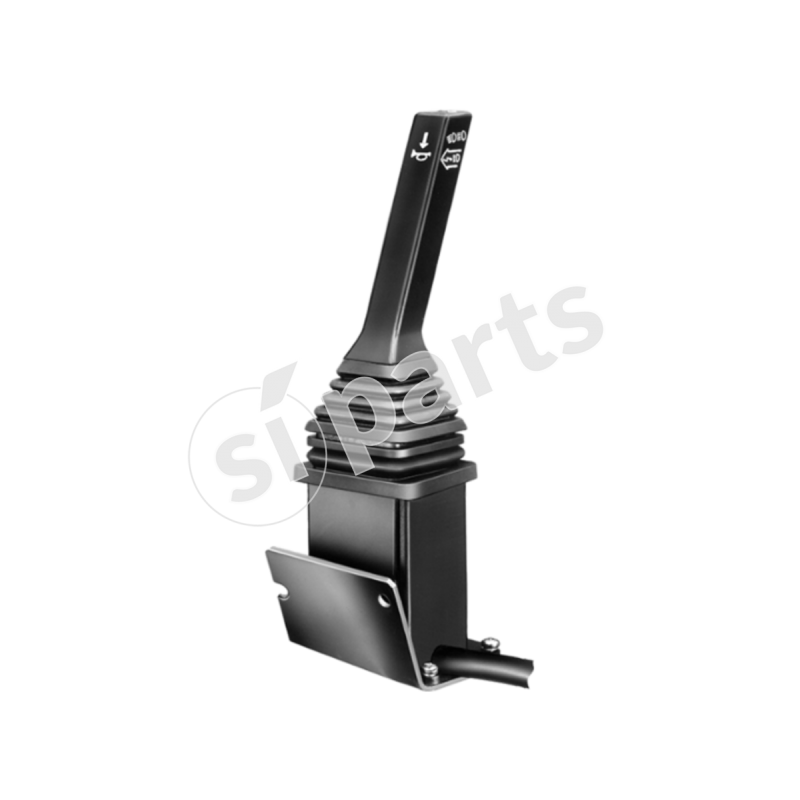

STEERING COLUMN SWITCH
Code: 01.171.000.01
Doc. Code: 01-171-000-01
€129.60
Tax excluded
(158.11 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 5a | 3a |
| direction | 7a | 5a |
length lever mm
101-200
connection length mm
101-200
fixing
dashboard
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
125
connection length mm detail
150
type of interior lever
metallic
lever covering
polyamide + functions symbols
type of cap
neoprene rubber
color of cap
black
protection housing
polyamide
model type
serie 170
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
