The image shown here is for illustrative purposes only.

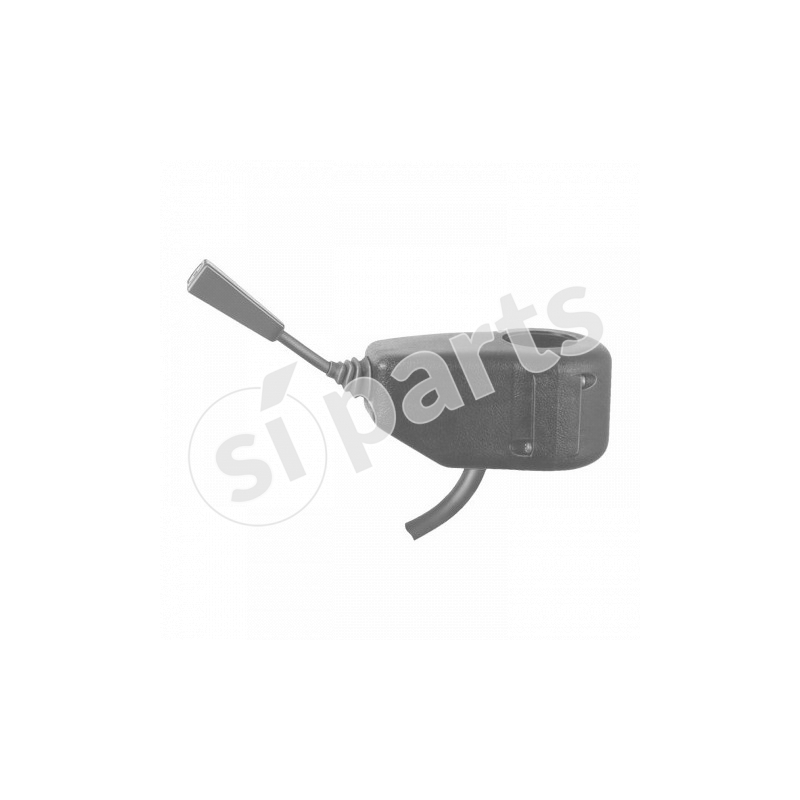

STEERING COLUMN SWITCH
Code: 01.205.000.01
Doc. Code: 01-205-000-01
€280.80
Tax excluded
(342.58 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 7a | 5a |
| direction | 7a | 5a |
| main lighting | 5a | 3a |
length lever mm
201-300
steering height mm
0-100

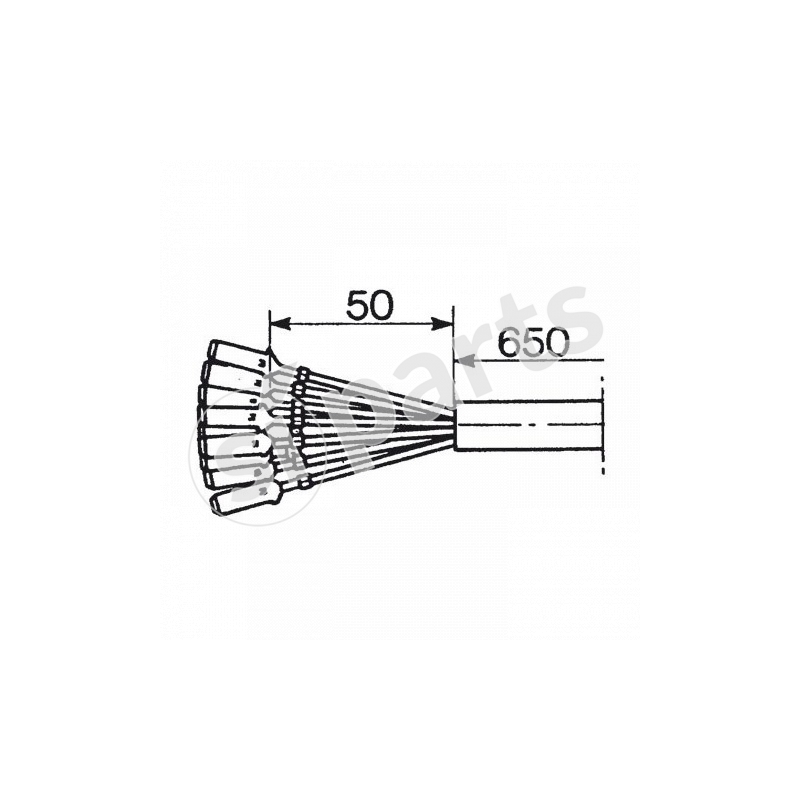

connection length mm
601-700
fixing
column 45 mm
type
single
fitting position
rh
technology
frontali in aria
length lever mm detail
220
steering height mm detail
96
connection length mm detail
700
model type
serie 134
type of lever
metallic with black varnishing
knob lever
polyamide
type of cap
neoprene rubber
color of cap
black
protection housing
black polyamide
lights on
disponibili versioni con leva supplementare accensione luci
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - main lighting
attivo
