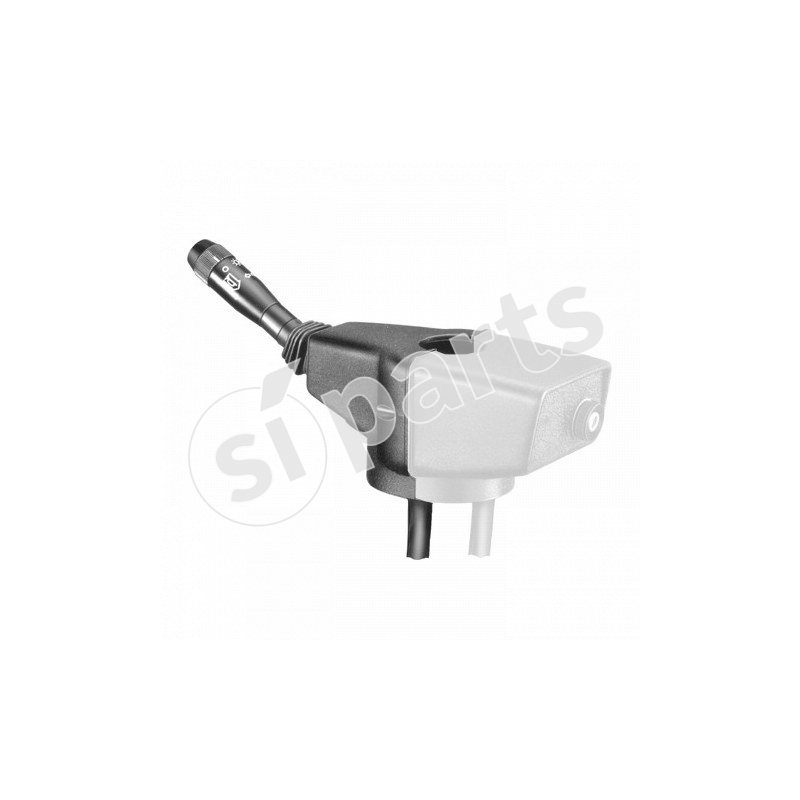

The image shown here is for illustrative purposes only.
LIGHTING SWITCH
Code: 01.212.500.02
Doc. Code: 01-212-500_$2
Pack 25 pieces.
€5,095.00
(€203.80 Cad.)
Tax excluded
(6215.9 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 7a | 5a |
| direction | 7a | 5a |
| main lighting | 5a | 3a |
length lever mm
201-300
steering height mm
201-300
connection length mm
201-300
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
215
steering height mm detail
218
connection length mm detail
230
model type
serie 190
type of interior lever
metallic
lever covering
polyamide + functions symbols
type of cap
neoprene rubber
color of cap
black
protection housing
polyamide
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - main lighting
attivo
