The image shown here is for illustrative purposes only.

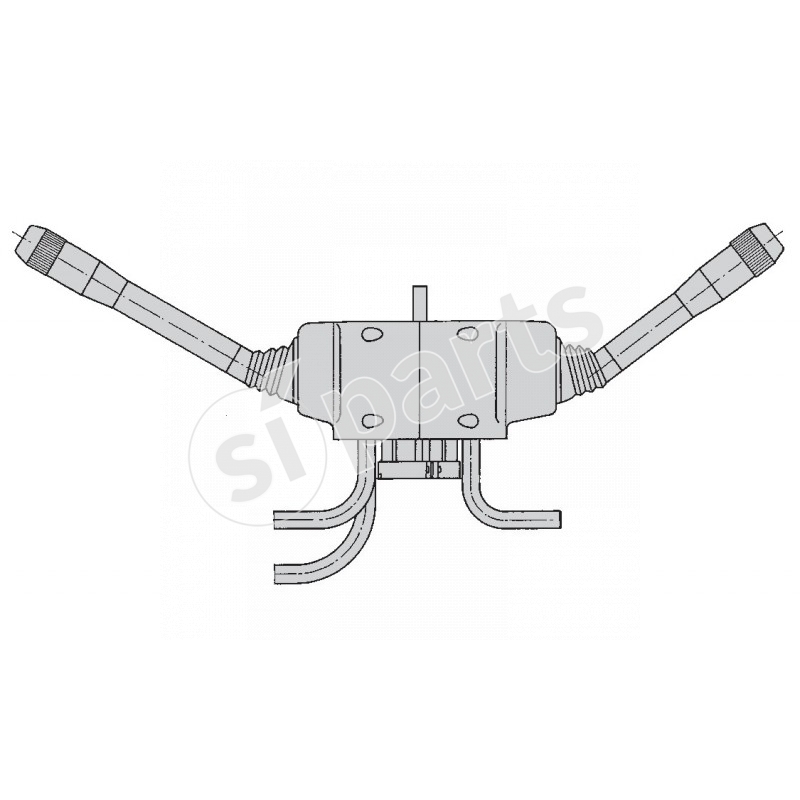

STEERING COLUMN SWITCH
Code: 01.218.500.02
(0 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 7a | 5a |
| direction | 7a | 5a |
| main lighting | 3a | 3a |
length lever mm
201-300
steering height mm
101-200
connection length mm
401-500
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
235
steering height mm detail
160

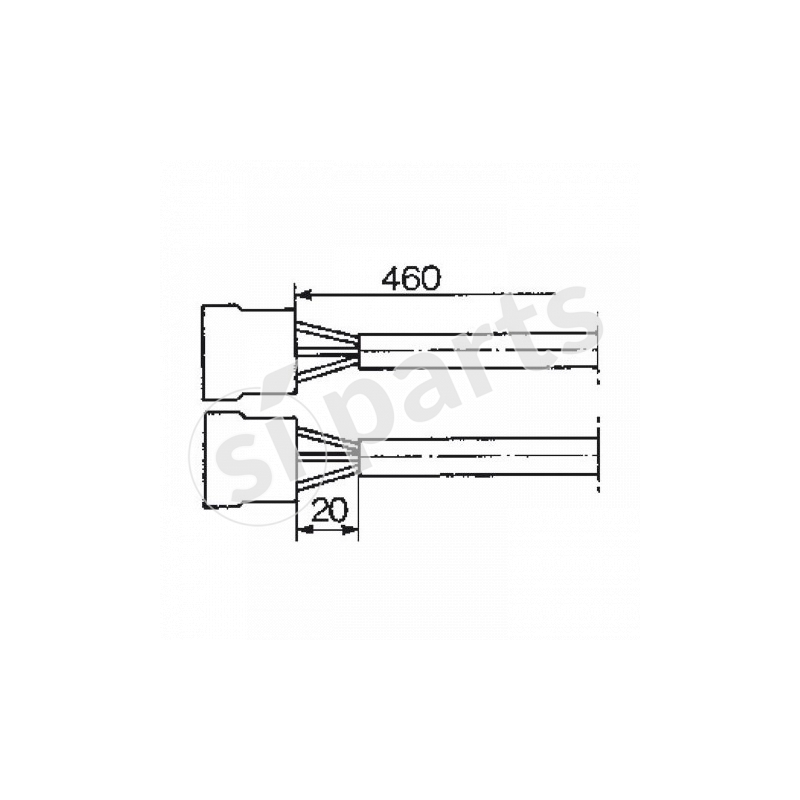

connection length mm detail
460
model type
serie 246
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - rientro automatico
attivo
function - main lighting
attivo
