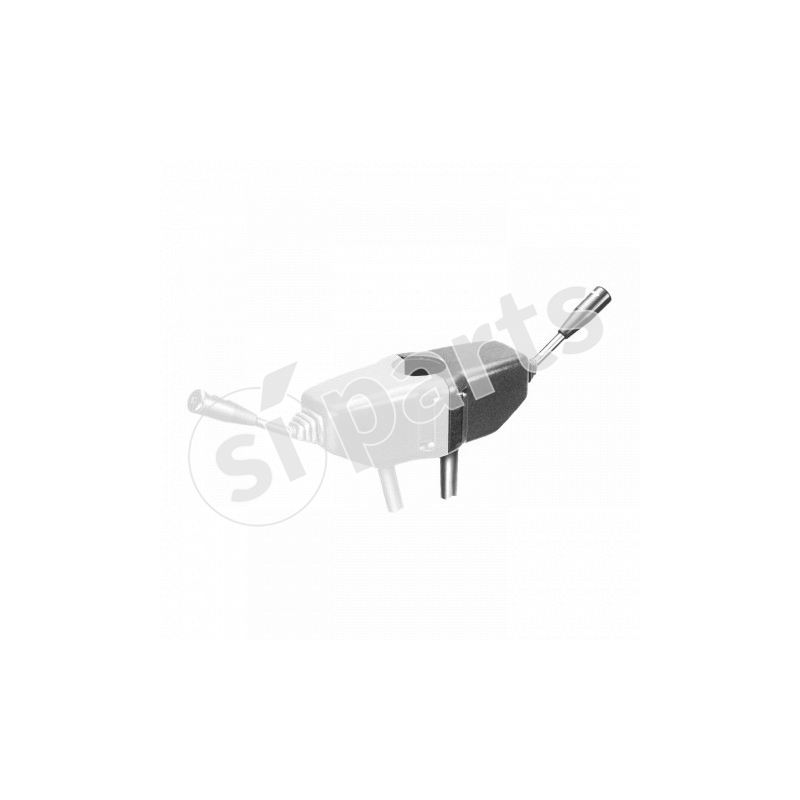

The image shown here is for illustrative purposes only.
STEERING COLUMN SWITCH
Code: 01.233.600.01
Doc. Code: 01-233-600-01
€120.05
Tax excluded
(146.46 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| direction | 7a | 5a |

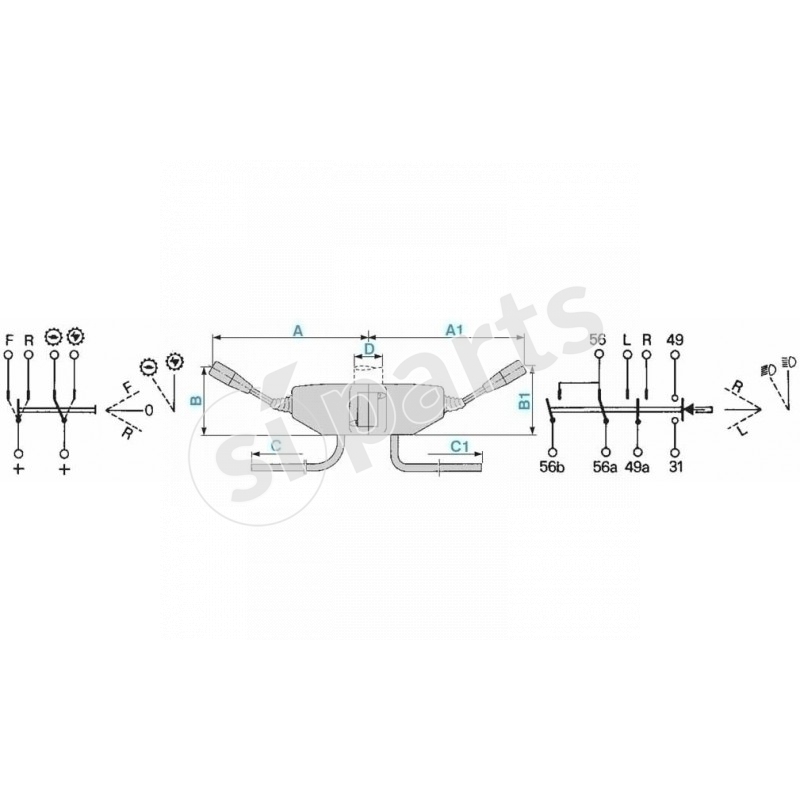

length lever mm
201-300
steering height mm
0-100

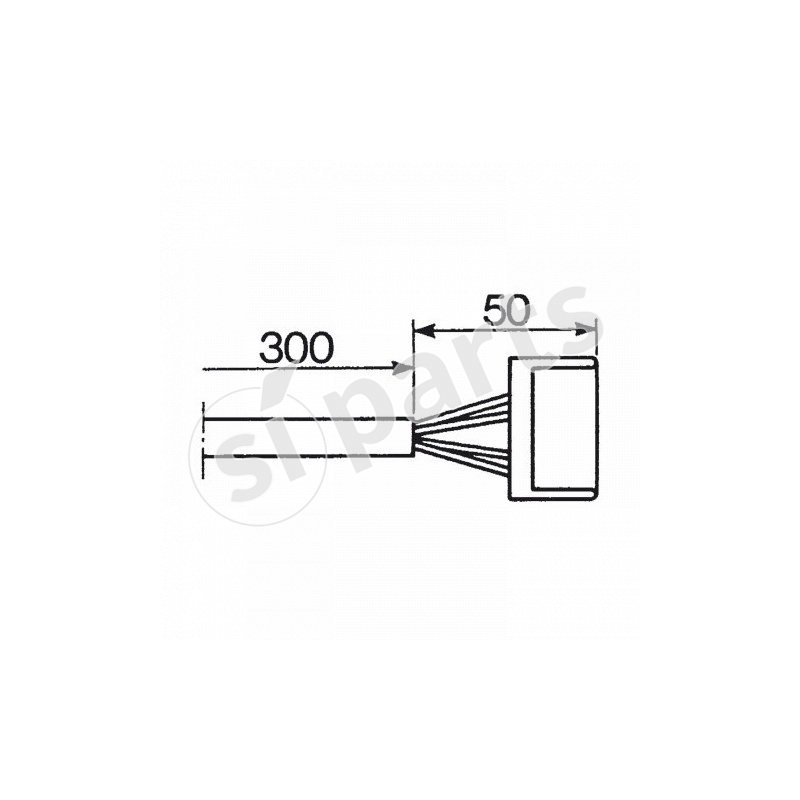

connection length mm
301-400
type
single
fitting position
rh
technology
frontali in aria
length lever mm detail
210
steering height mm detail
90
connection length mm detail
350
model type
serie 281
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - direction
attivo
