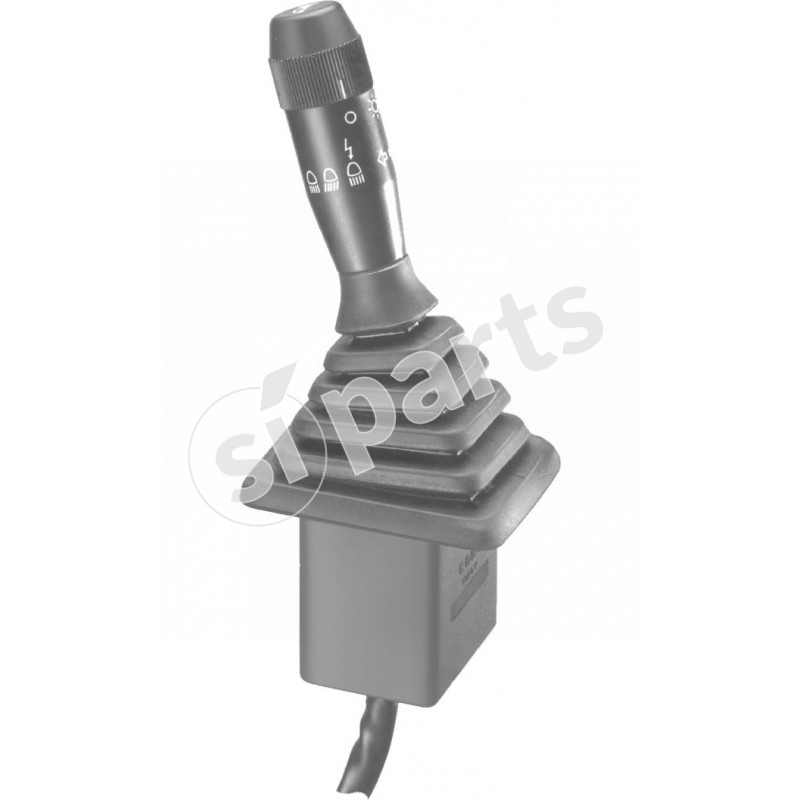

The image shown here is for illustrative purposes only.
STEERING COLUMN SWITCH
Code: 01.272.000.01
Doc. Code: 01-272-000-01
€112.51
Tax excluded
(137.26 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 5a | 3a |
| direction | 7a | 5a |
| main lighting | 5a | 3a |

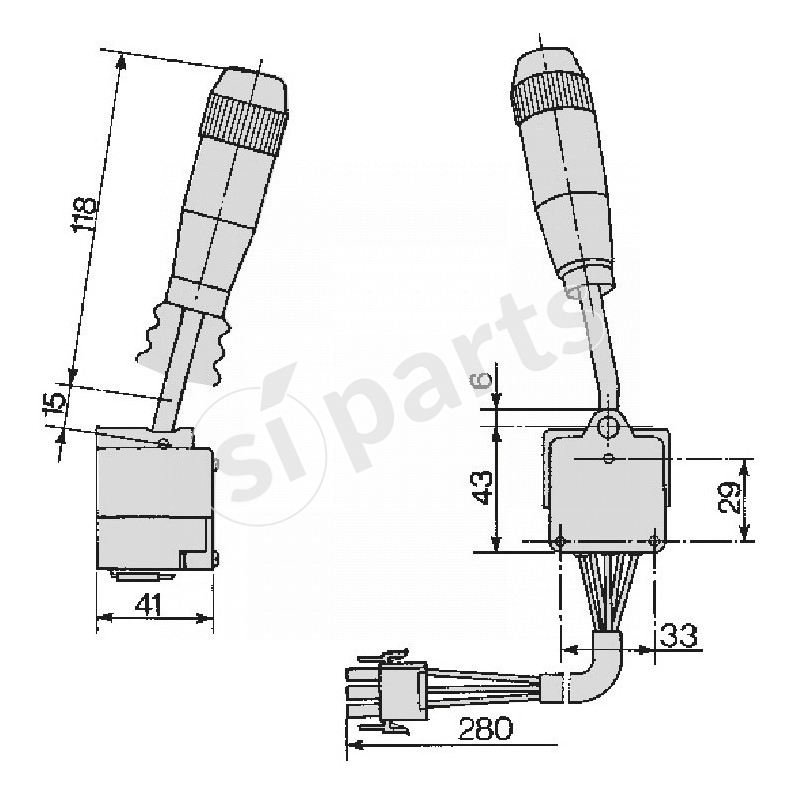

length lever mm
101-200
connection length mm
201-300
fixing
dashboard
type
single
technology
frontali in aria
length lever mm detail
118
connection length mm detail
280
type of interior lever
metallic
lever covering
polyamide + functions symbols
type of cap
neoprene rubber
color of cap
black
protection housing
polyamide
model type
serie 190
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - main lighting
attivo
