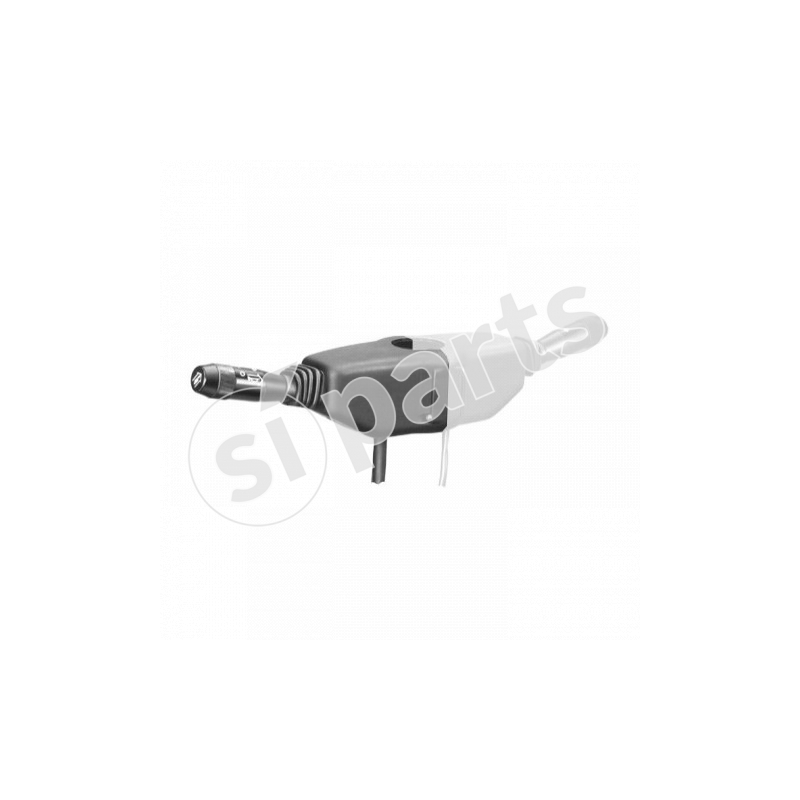

The image shown here is for illustrative purposes only.
LIGHT SWITCHING GROUP
Code: 01.279.500.01
Doc. Code: 01-279-500-01
€142.59
Tax excluded
(173.96 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 7a | 5a |
| main lighting | 5a | 3a |
| forward gear | 8a | 5a |
| reverse gear | 8a | 5a |

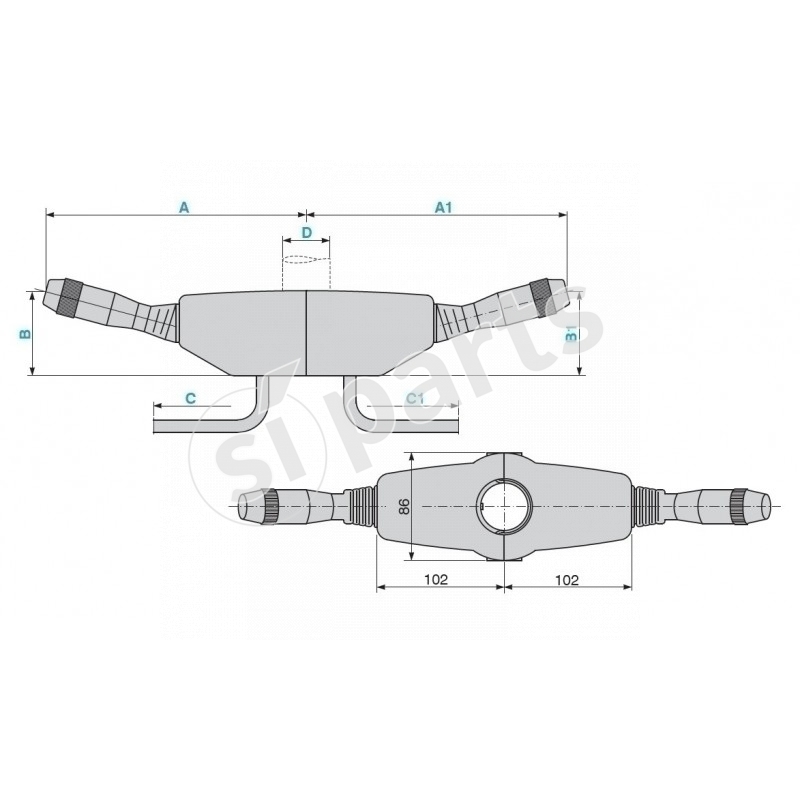

length lever mm
201-300
steering height mm
0-100

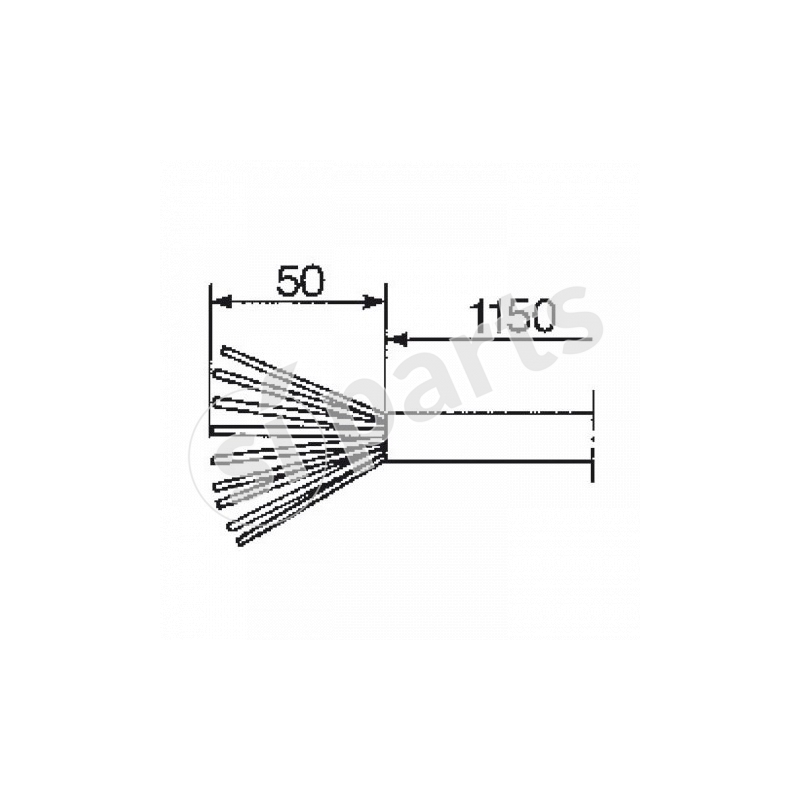

connection length mm
1101-1200
type
single
fitting position
lh
technology
frontali in aria
length lever mm detail
209
steering height mm detail
67
connection length mm detail
1200
model type
serie 190
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - main lighting
attivo
function - forward gear
attivo
function - reverse gear
attivo
