STEERING COLUMN SWITCH
Code: 01.445.000.01
(0 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 2,5a |
| low beam | 7a | 3,5a |
| high beam | 7a | 3,5a |
| flashing | 7a | 3,5a |
| direction | 7a | 3,5a |

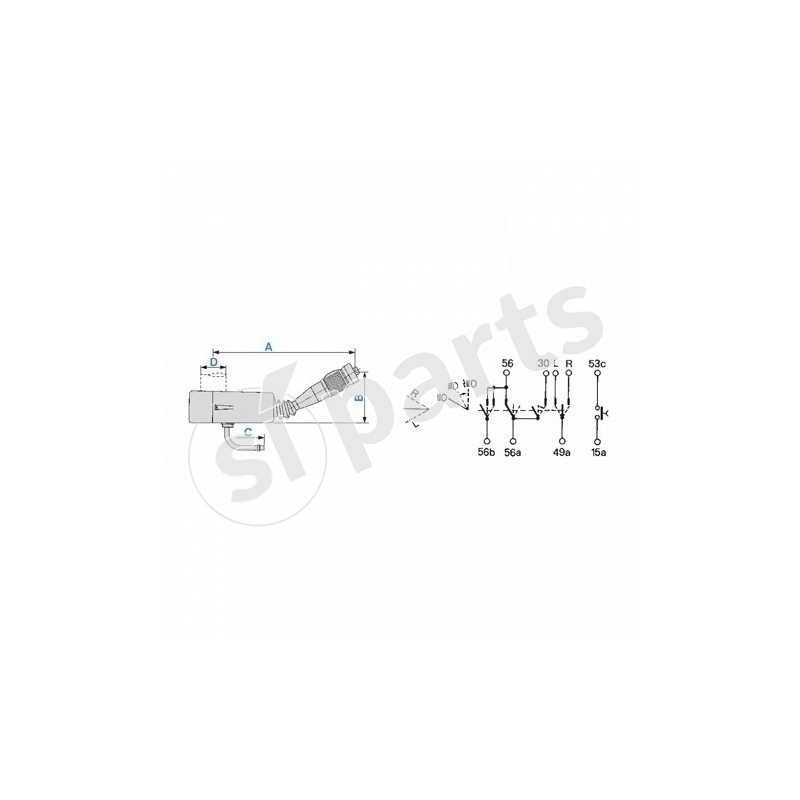

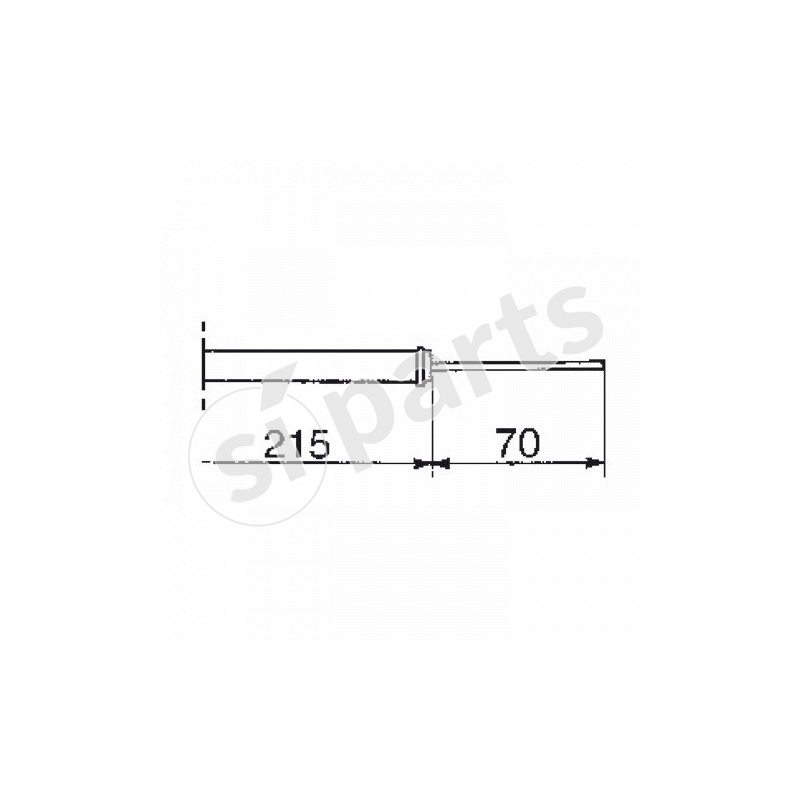

length lever mm
201-300
steering height mm
0-100
connection length mm
201-300
fixing
column 45 mm
type
single
fitting position
rh
technology
frontali in aria
length lever mm detail
247
steering height mm detail
96
connection length mm detail
285
model type
serie 240
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
