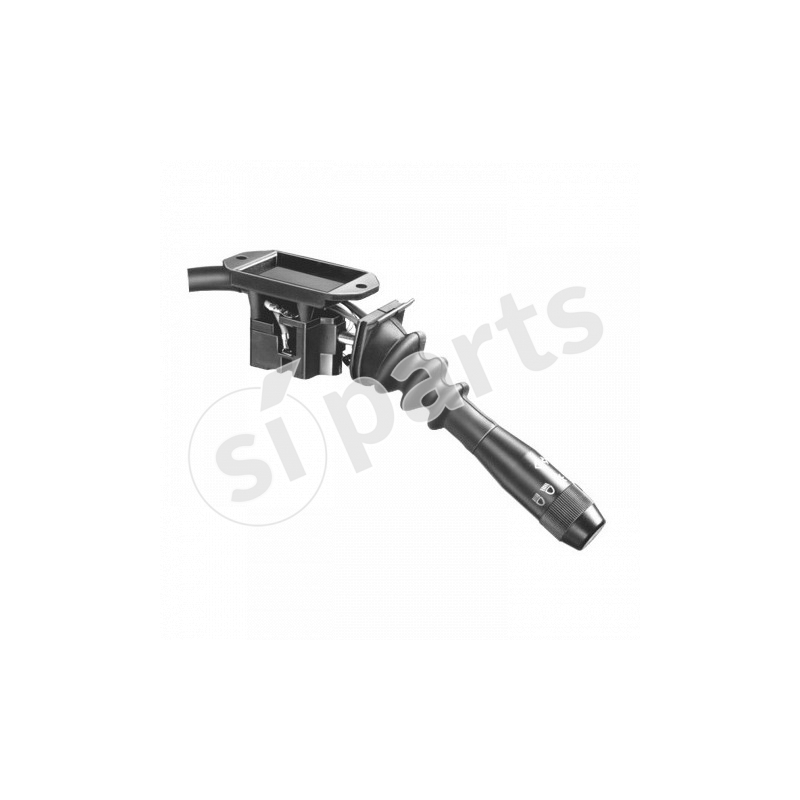

STEERING COLUMN SWITCH
Code: 01.447.000.02
Doc. Code: 01-447-000-02
Pack 50 pieces.
€6,693.00
(€133.86 Cad.)
Tax excluded
(8165.46 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| horn | 5a | 3a |
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 5a | 3a |
| direction | 7a | 5a |
| main lighting | 5a | 3a |

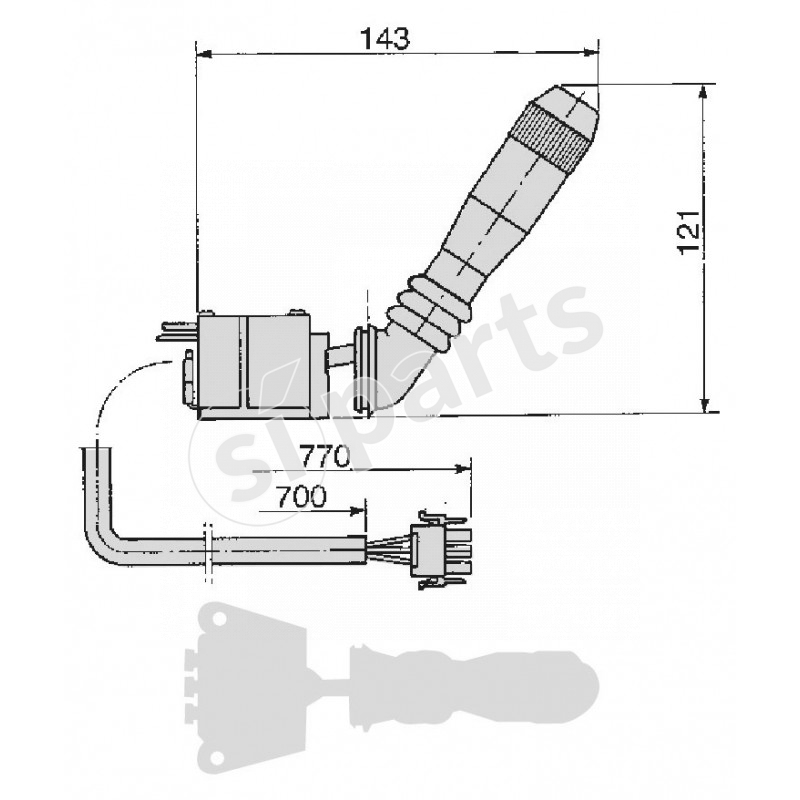

length lever mm
101-200
steering height mm
101-200
connection length mm
701-800
fixing
dashboard
type
single
fitting position
rh
technology
frontali in aria
length lever mm detail
143
steering height mm detail
121
connection length mm detail
770
type of interior lever
metallic
lever covering
polyamide + functions symbols
type of cap
neoprene rubber
color of cap
black
protection housing
polyamide
model type
serie 190
function - horn
attivo
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - main lighting
attivo
