The image shown here is for illustrative purposes only.

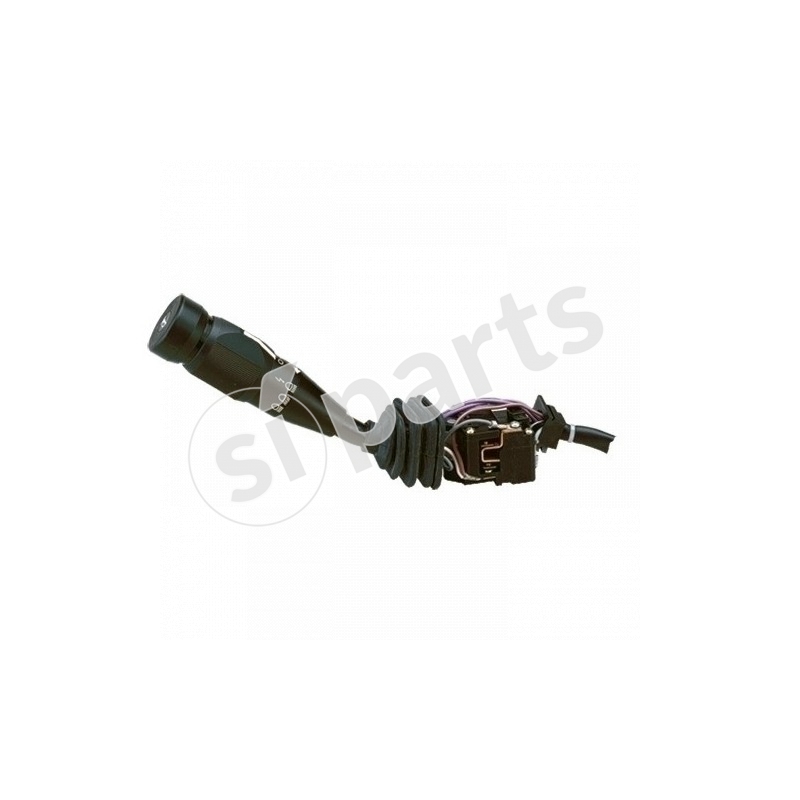

STEERING COLUMN SWITCH
Code: 01.458.000.02
(0 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
| function | peak load 12v | peak load 24v |
|---|---|---|
| low beam | 6,5a | 4,5a |
| high beam | 7a | 5a |
| flashing | 7a | 5a |
| direction | 7a | 5a |
| windscreen washer | 7a | 5a |
| intermittent s | 1,8a | 1a |
| windscreen 1 | 8a | 5a |
length lever mm
201-300
steering height mm
0-100
connection length mm
801-900
fixing
dashboard
type
single
fitting position
rh
technology
frontali in aria

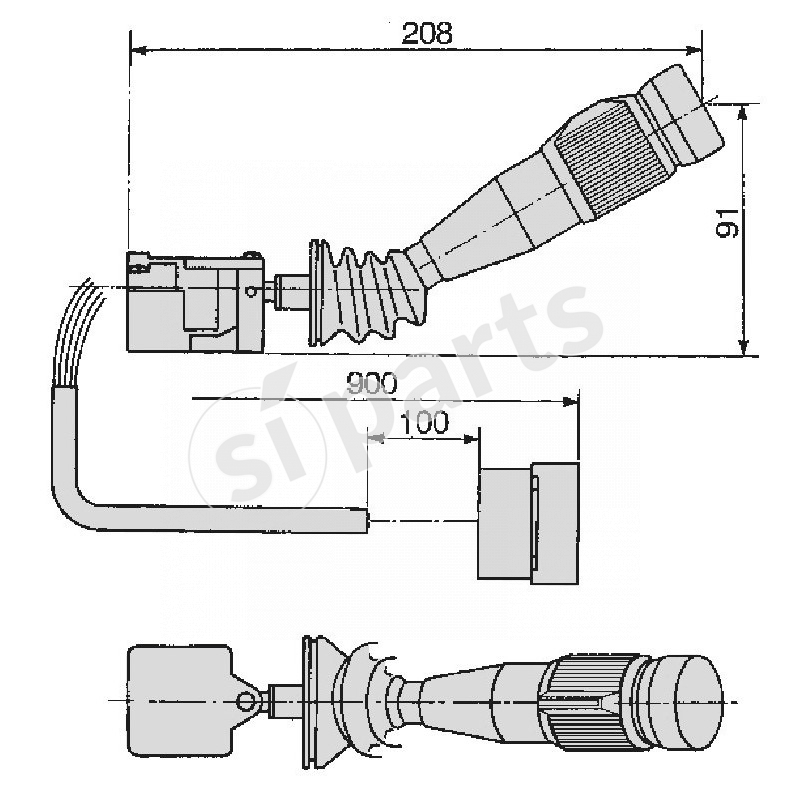

length lever mm detail
208
steering height mm detail
91
connection length mm detail
900
model type
serie 240
function - low beam
attivo
function - high beam
attivo
function - flashing
attivo
function - direction
attivo
function - windscreen washer
attivo
function - intermittent s
attivo
function - windscreen 1
attivo
