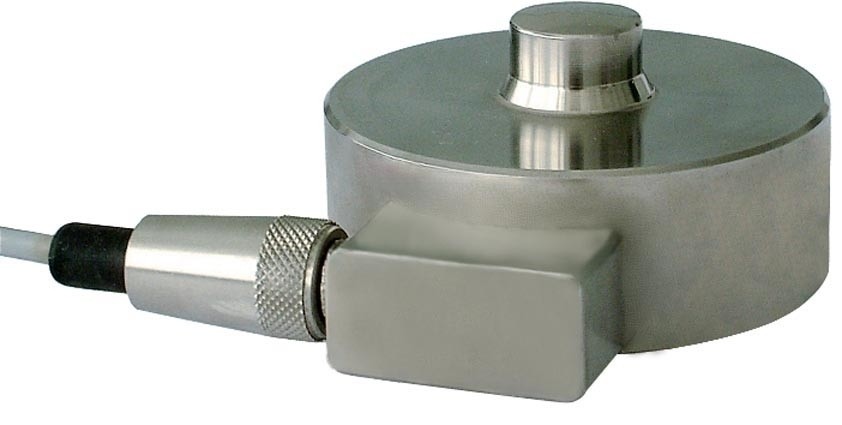

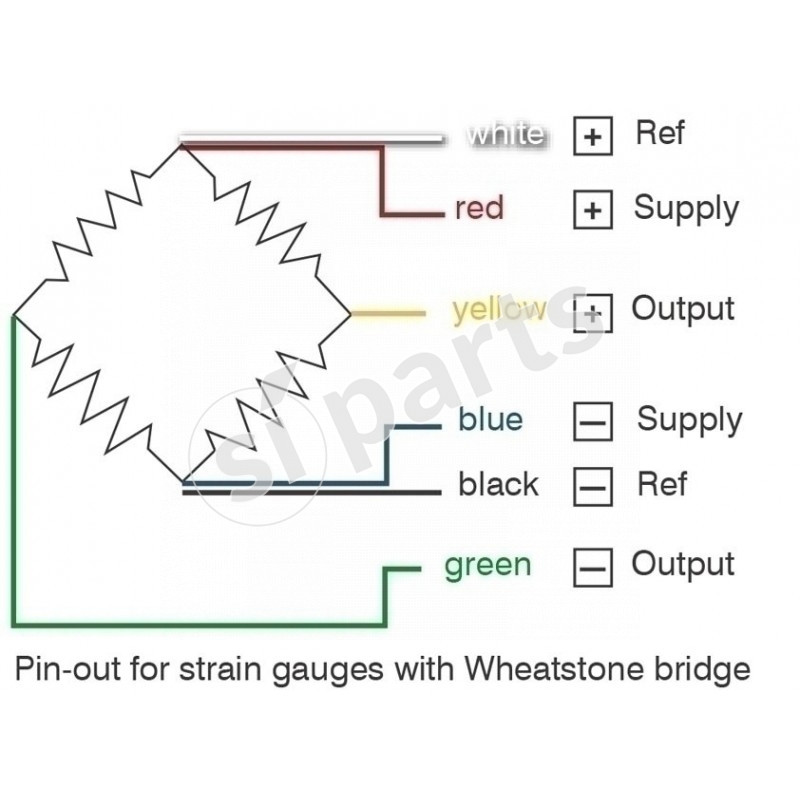

COMPRESSION LOAD CELLS (CM SERIES)

3B6 (Original product)
serie.cm

Code: serie.cm

CONTACT US FOR MORE INFORMATION

Request quotation
Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro

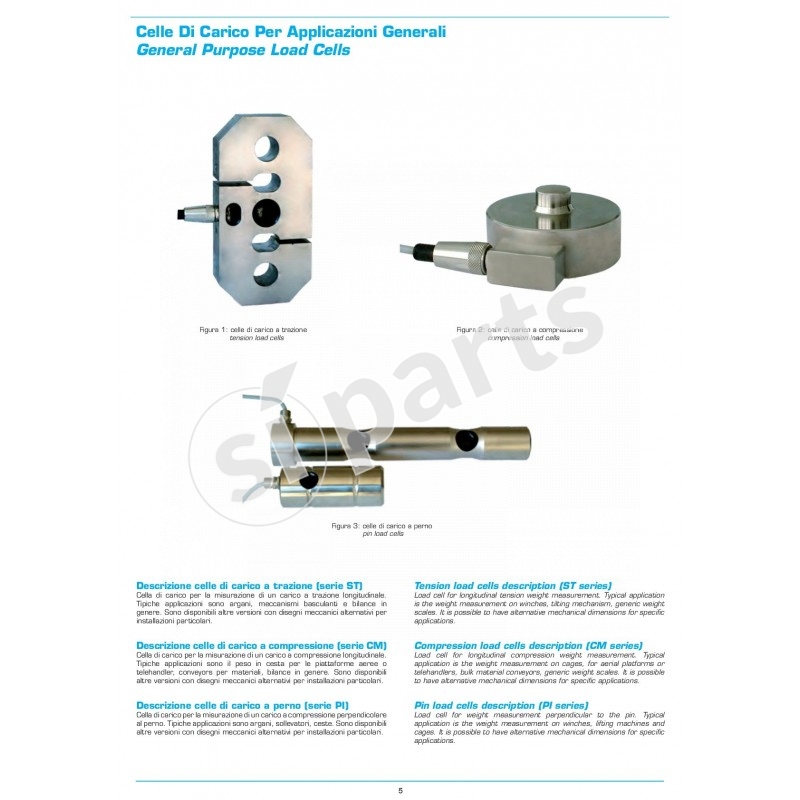

Description application is the weight measurement on cages, for aerial platforms or
telehandlers, bulk material conveyors, generic weight scales. It is possible
to have alternative mechanical dimensions for specific applications.

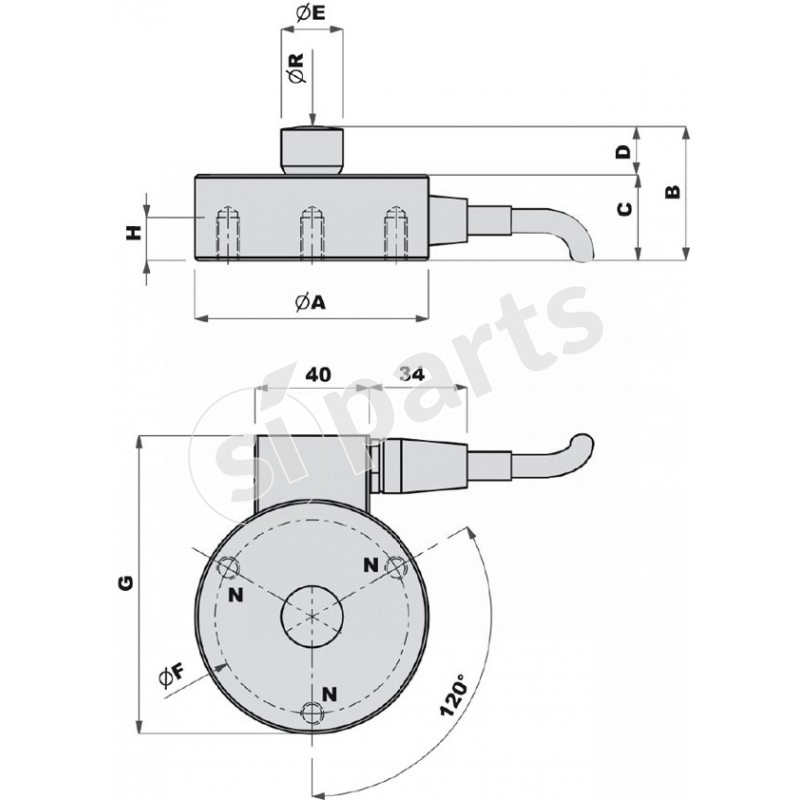

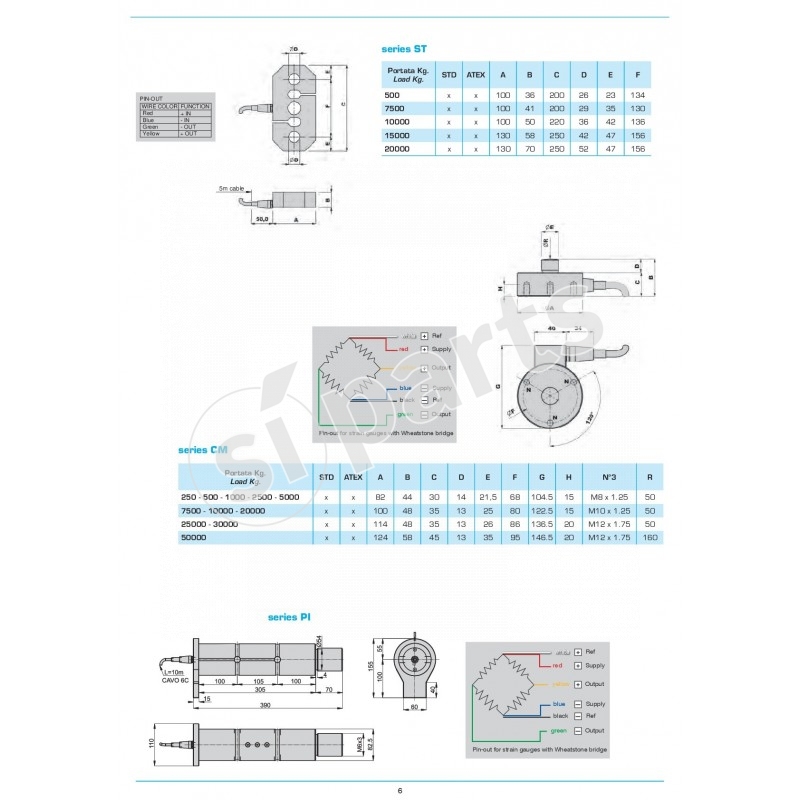

LOAD (Kg.) STD ATEX A B C D E F G H N°3 R
250-500-1000-2500-5000 YES YES 82 44 30 14 21.5 68 104.5 15 M8x1.25 50
7500-10000-20000 YES YES 100 48 35 13 25 80 122.5 15 M10x1.25 50
25000-30000 YES YES 114 48 35 13 26 86 136.5 20 M12x1.75 50
50000 YES YES 124 58 40 13 35 95 146.5 20 M12x1.75 160

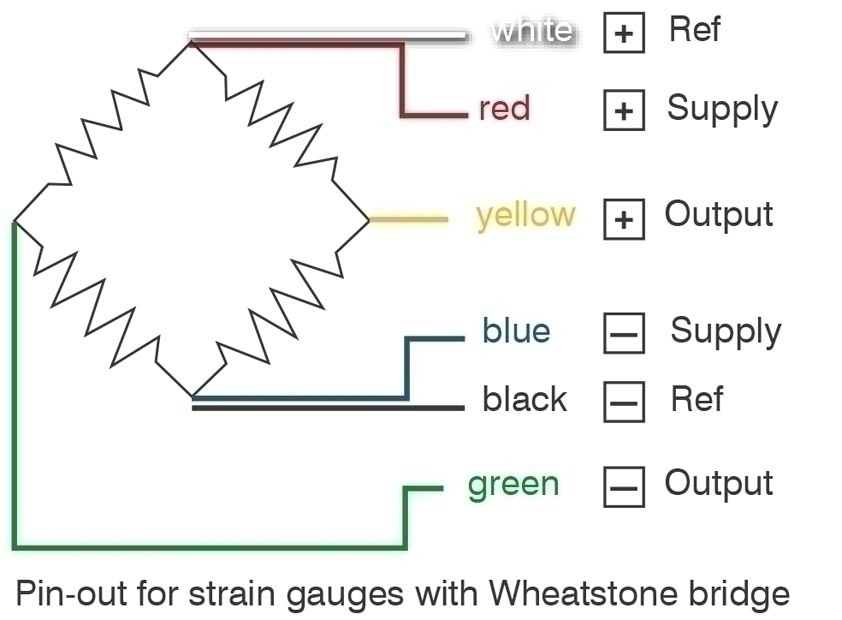

CONNECTION LENGTH MM
0-100

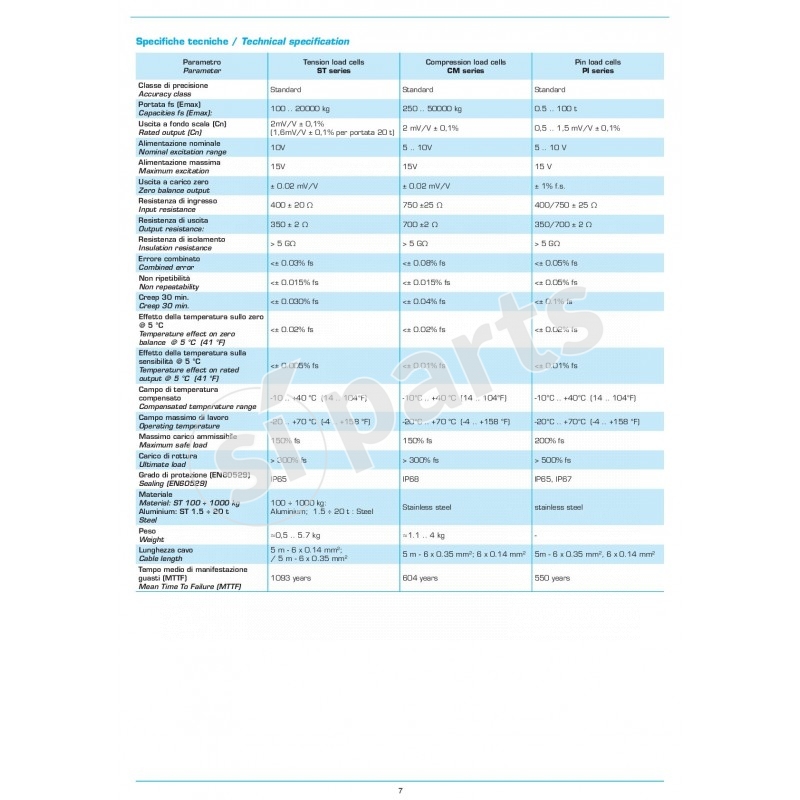

CAPACITIES FS EMAX
250 .. 50000 kg
MAXIMUM EXCITATION V
15V
ZERO BALANCE OUTPUT
± 0.02 mV/V
INPUT RESISTANCE
750 ±25 Ohm
OUTPUT RESISTANCE
700 ±2 Ohm
INSULATION RESISTANCE
> 5 G Ohm
COMBINED ERROR
<± 0.08% fs
NOT REPEATABILITY
<± 0.015% fs
CREEP 30 MIN.
<± 0.04% fs
EFFETTO DELLA TEMPERATURA SULLO ZERO @ 5 °C
<± 0.02% fs
EFFETTO DELLA TEMPERATURA SULLA SENSIBILITA' @ 5 °C
<± 0.01% fs
COMPENSATED TEMPERATURE RANGE
-10°C .. +40 °C 14 .. 104°F
OPERATING TEMPERATURE
-20°C .. +70 °C -4 .. +158 °F
MAXIMUM SAFE LOAD
150% fs
ULTIMATE LOAD
> 300% fs
SEALING EN60529
IP68
WEIGHT
1.1 .. 4 kg
CONNECTION LENGTH MM DETAIL
5 m - 6 x 0.35 mmq; 6 x 0.14 mmq
MEAN TIME TO FAILURE MTTF
604 years
APPLICATIONS

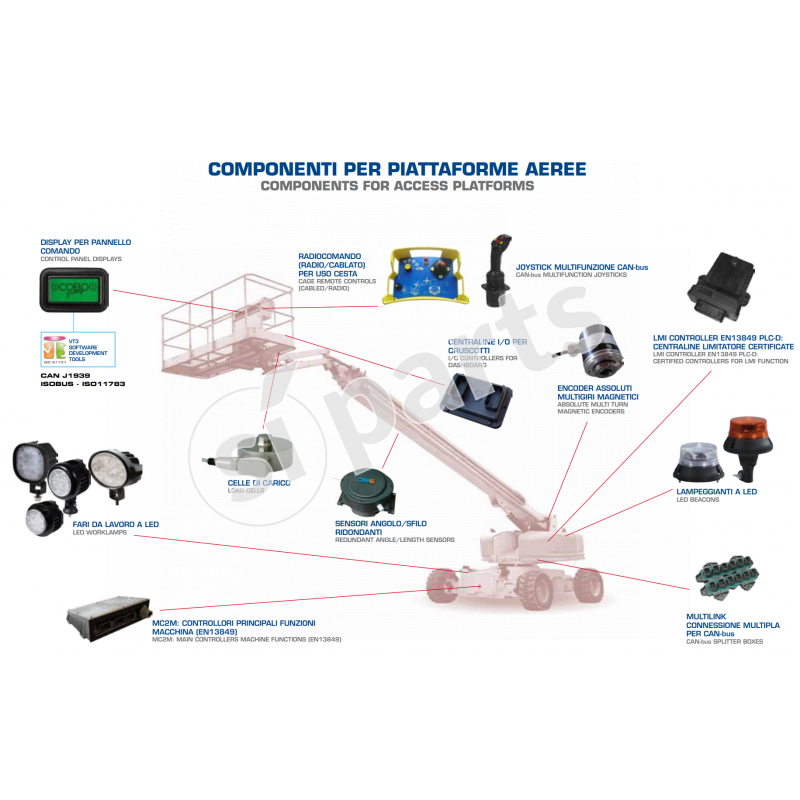

Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
