PIN LOAD CELLS (PI SERIES)

3B6 (Original product)
serie.pi

Code: serie.pi

CONTACT US FOR MORE INFORMATION

Request quotation
Add to Wishlist
  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro

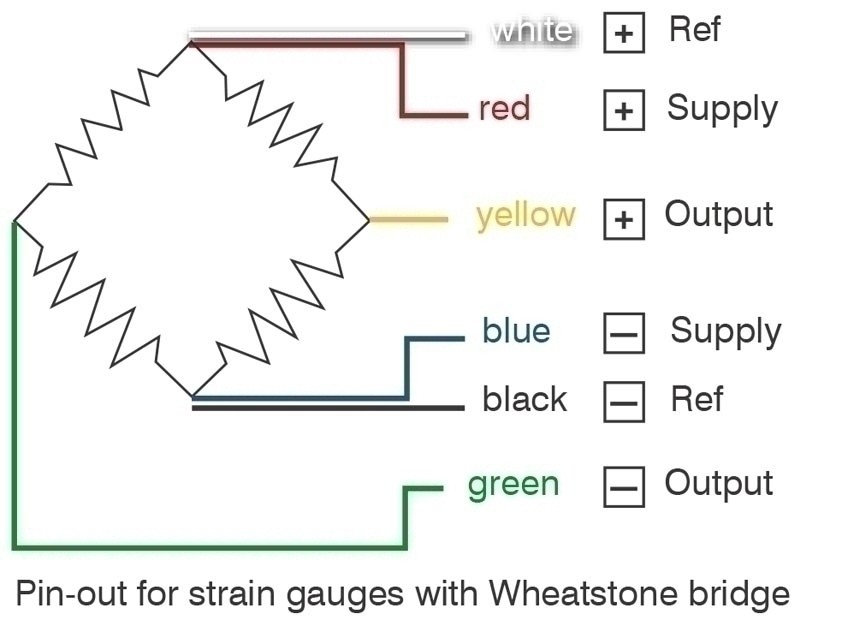

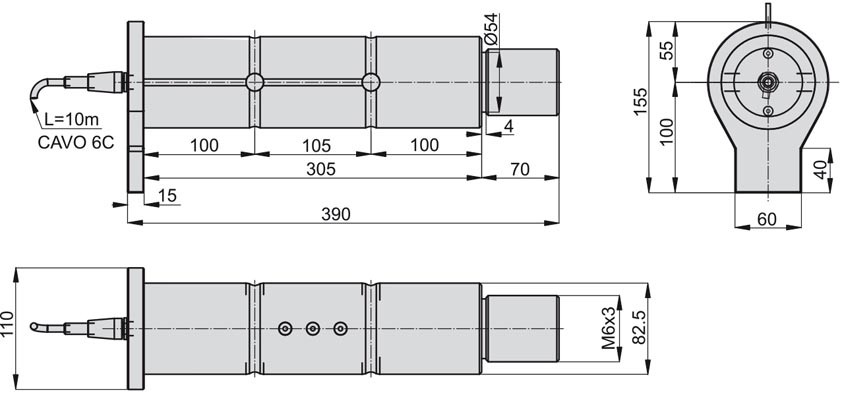

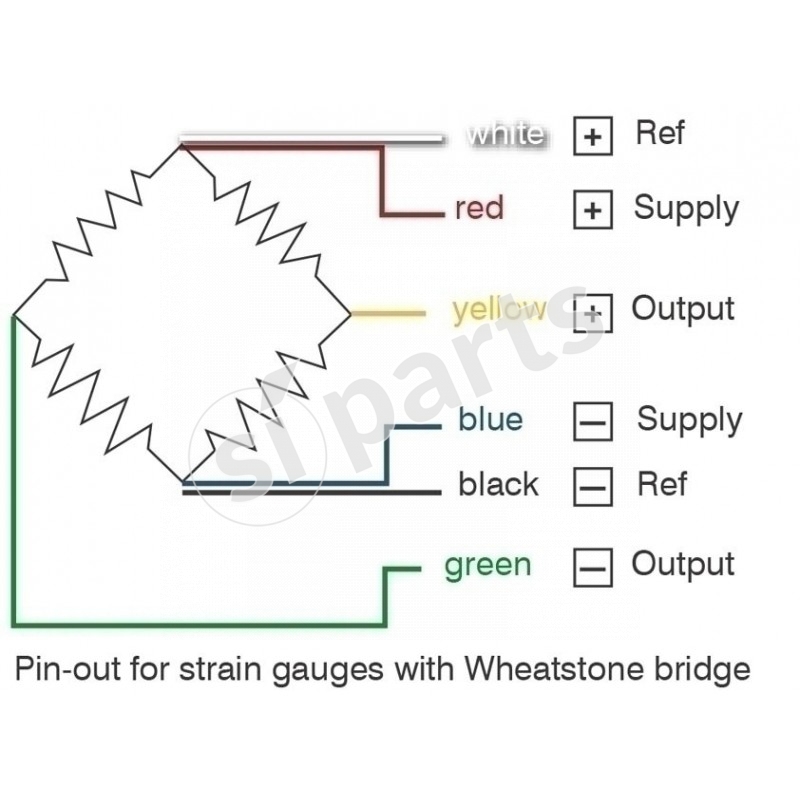

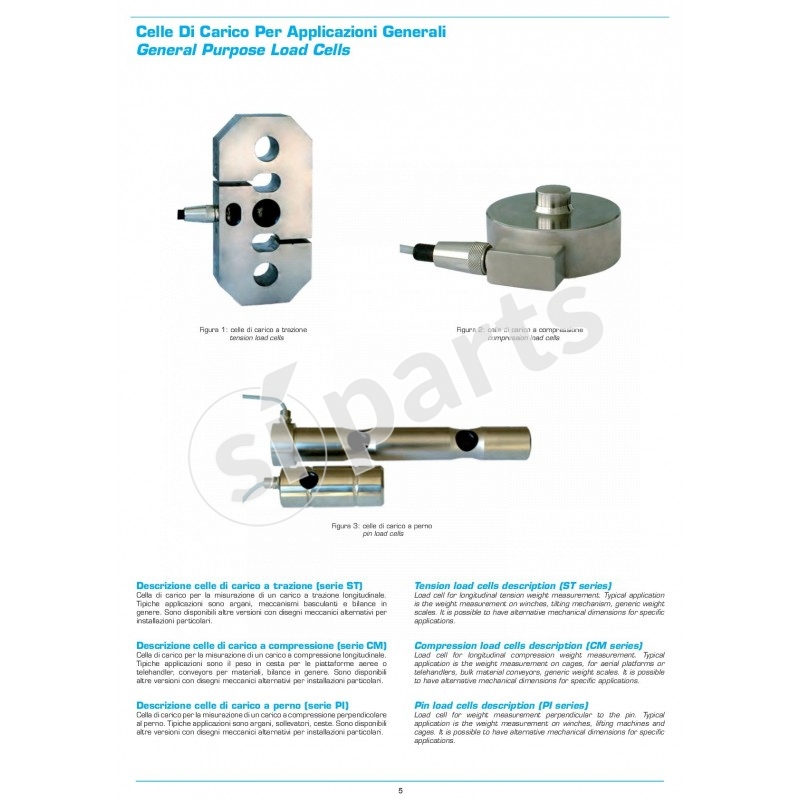

description load cell for weight measurement perpendicular to the pin. typical
application is the weight measurement on winches, lifting machines and
cages. it is possible to have alternative mechanical dimensions for specific
applications.

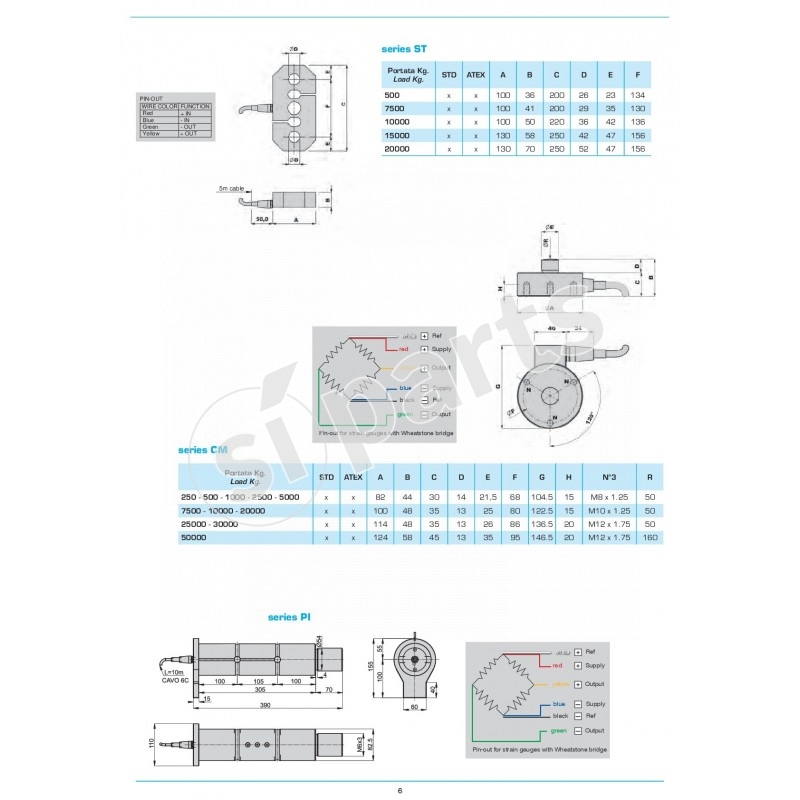

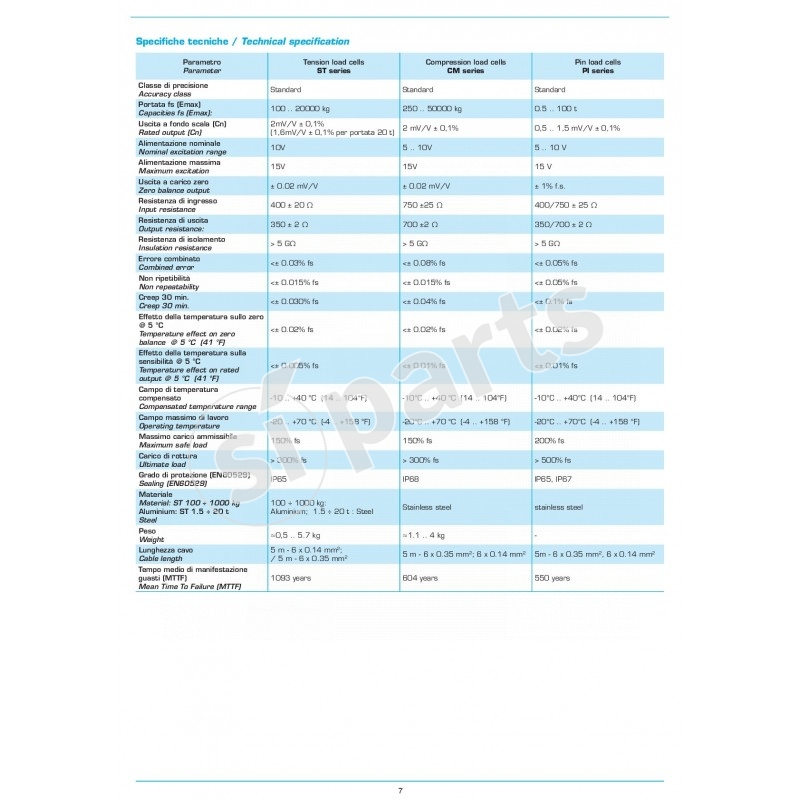

connection length mm
0-100
capacities fs emax
0.5 .. 100 t
rated voltage
5-10v
maximum excitation v
15v
zero balance output
± 1% f.s.
input resistance
400/750 ± 25 ohm
output resistance
350/700 ± 2 ohm
insulation resistance
> 5 g ohm
combined error
<± 0.05% fs
not repeatability
<± 0.05% fs
creep 30 min.
<± 0.1% fs
effetto della temperatura sullo zero @ 5 °c
<± 0.02% fs
effetto della temperatura sulla sensibilita' @ 5 °c
<± 0.01% fs
compensated temperature range
-10°c .. +40°c 14 .. 104°f
operating temperature
-20°c .. +70°c -4 .. +158 °f
maximum safe load
200% fs
ultimate load
> 500% fs
sealing en60529
ip65, ip67
connection length mm detail
5m - 6 x 0.35 mmq, 6 x 0.14 mmq
mean time to failure mttf
550 years
