TENSION LOAD CELL 7.5 TONS

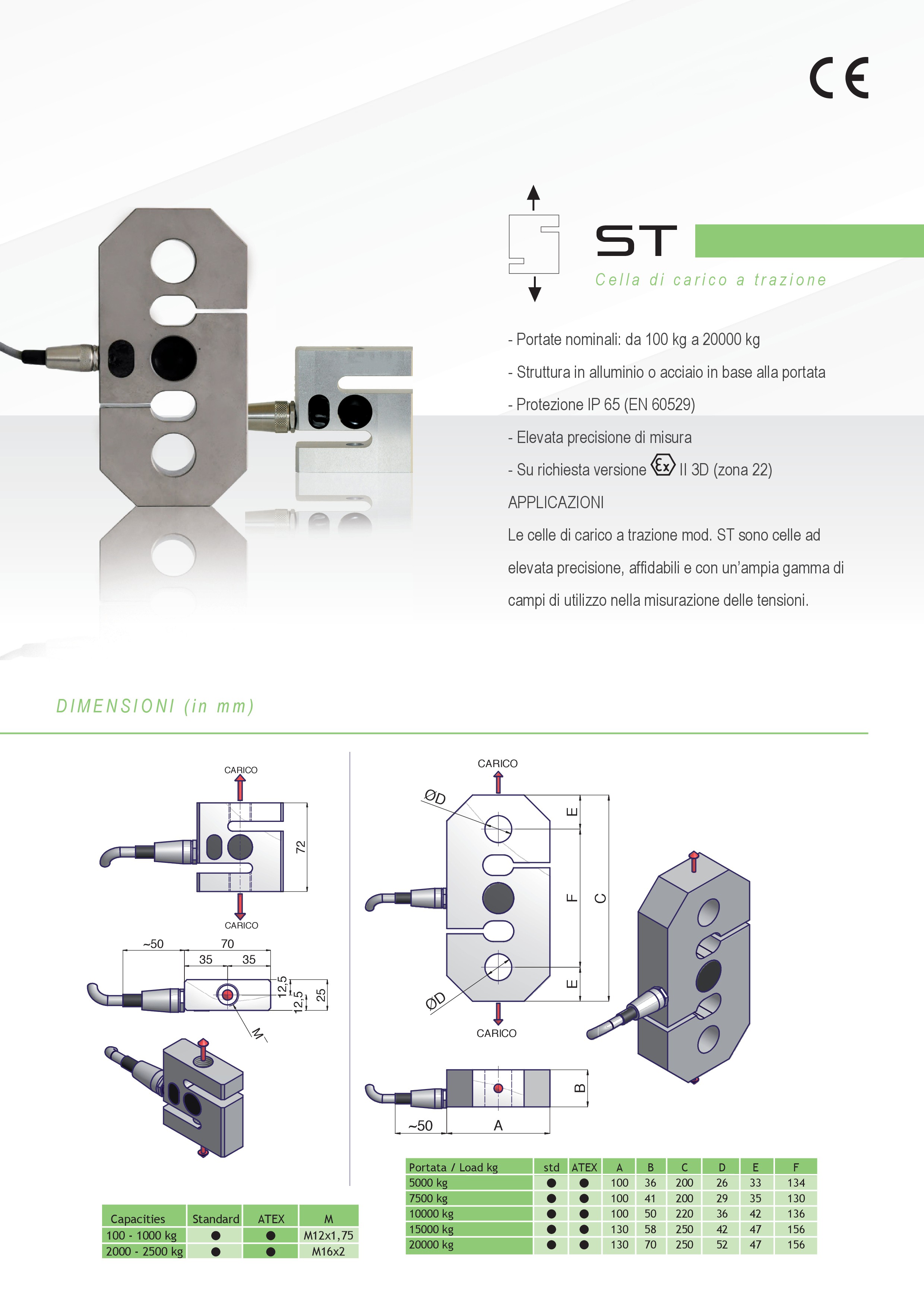

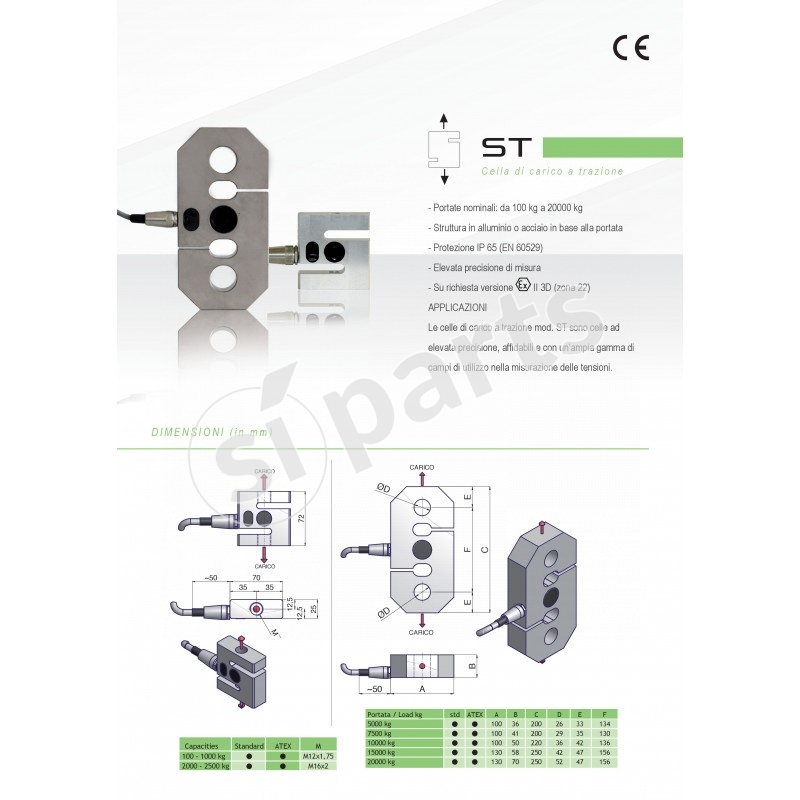

Tension load cell 7.5 tons for longitudinal tension weight measurement. Typical application is the weight measurement on winches, tilting mechanism, generic weight scales. It is possible to have alternative mechanical dimensions for specific applications.

LOAD (Kg.)STDATEXABCDEF
500 YES YES 100 36 200 26 23 134
7500 YES YES 100 41 200 29 35 130
10000 YES YES 100 50 220 36 42 136
15000 YES YES 130 58 250 42 47 156
20000 YES YES 130 70 250 52 47 156

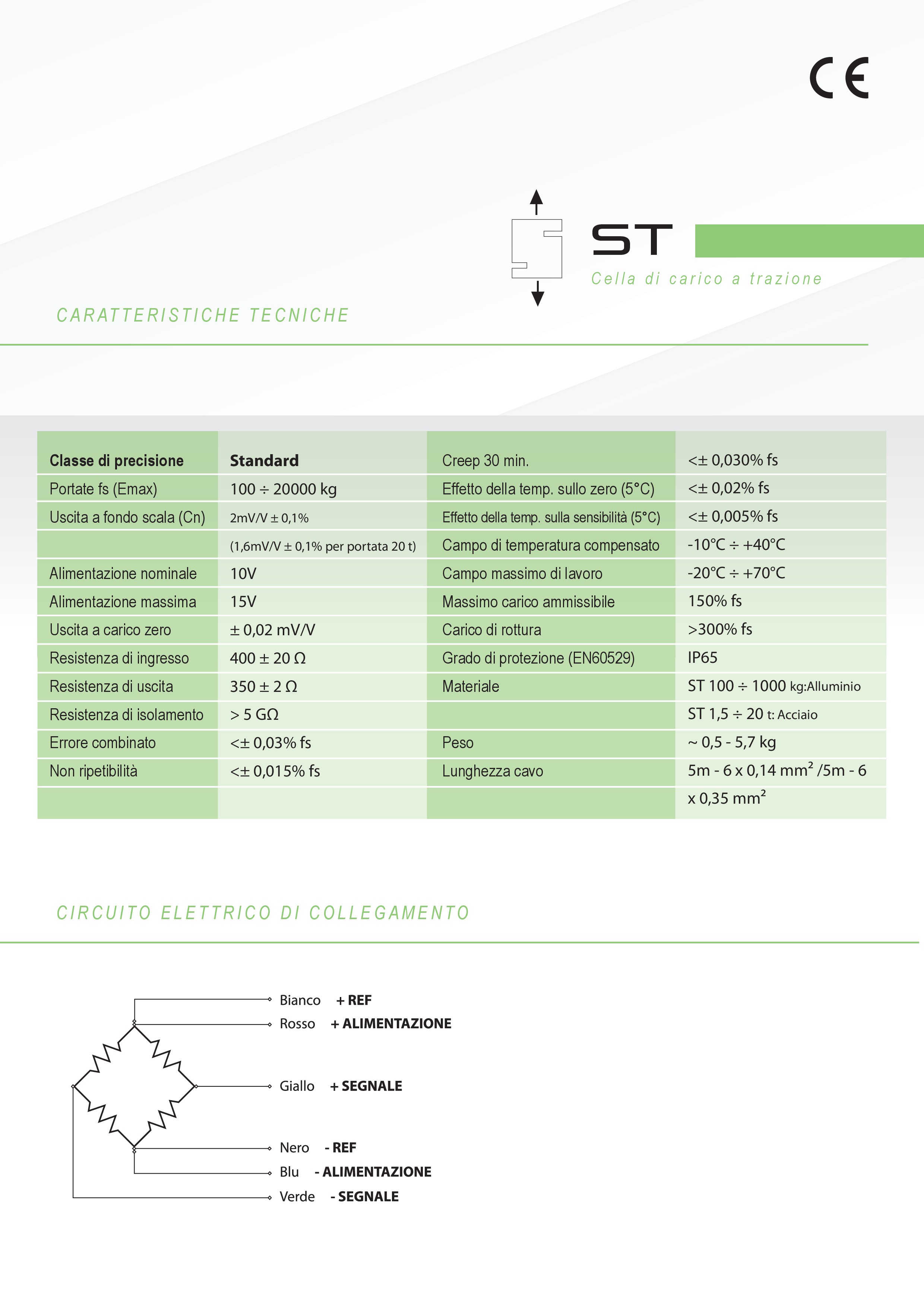

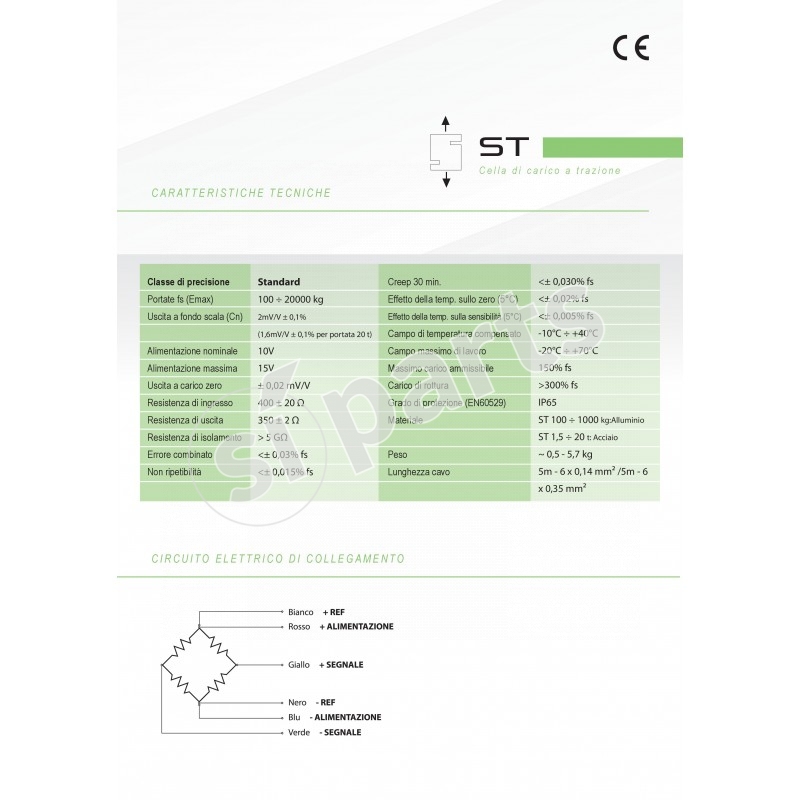

CONNECTION LENGTH MM
0-100
CAPACITIES FS EMAX
100 .. 20000 kg
RATED VOLTAGE
10V
MAXIMUM EXCITATION V
15V
ZERO BALANCE OUTPUT
± 0.02 mV/V
INPUT RESISTANCE
400 ± 20 Ohm
OUTPUT RESISTANCE
350 ± 2 Ohm
INSULATION RESISTANCE
> 5 G Ohm
COMBINED ERROR
<± 0.03% fs
NOT REPEATABILITY
<± 0.015% fs
CREEP 30 MIN.
<± 0.030% fs
EFFETTO DELLA TEMPERATURA SULLO ZERO @ 5 °C
<± 0.02% fs
EFFETTO DELLA TEMPERATURA SULLA SENSIBILITA' @ 5 °C
<± 0.005% fs
COMPENSATED TEMPERATURE RANGE
-10 .. +40 °C 14 .. 104°F
OPERATING TEMPERATURE
-20 .. +70 °C -4 .. +158 °F
MAXIMUM SAFE LOAD
150% fs
ULTIMATE LOAD
> 300% fs
SEALING EN60529
IP65
WEIGHT
0,5 .. 5.7 kg
CONNECTION LENGTH MM DETAIL
5 m - 6 x 0.14 mmq; / 5 m - 6 x 0.35 mmq
MEAN TIME TO FAILURE MTTF
1093 years
