TENSION LOAD CELL (ST SERIES) 10 TONS
Code: 45.30.0002XX.01
(0 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers

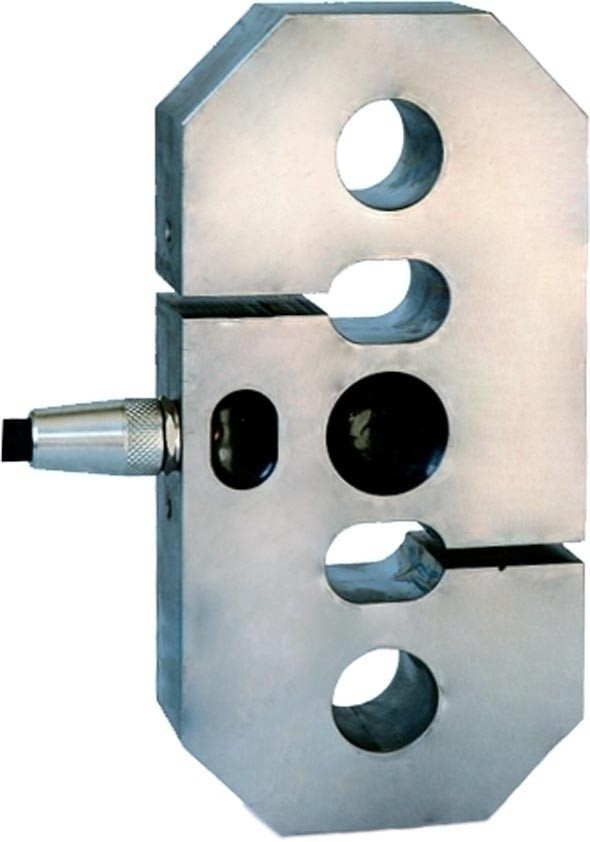

tension load cell 10 tons

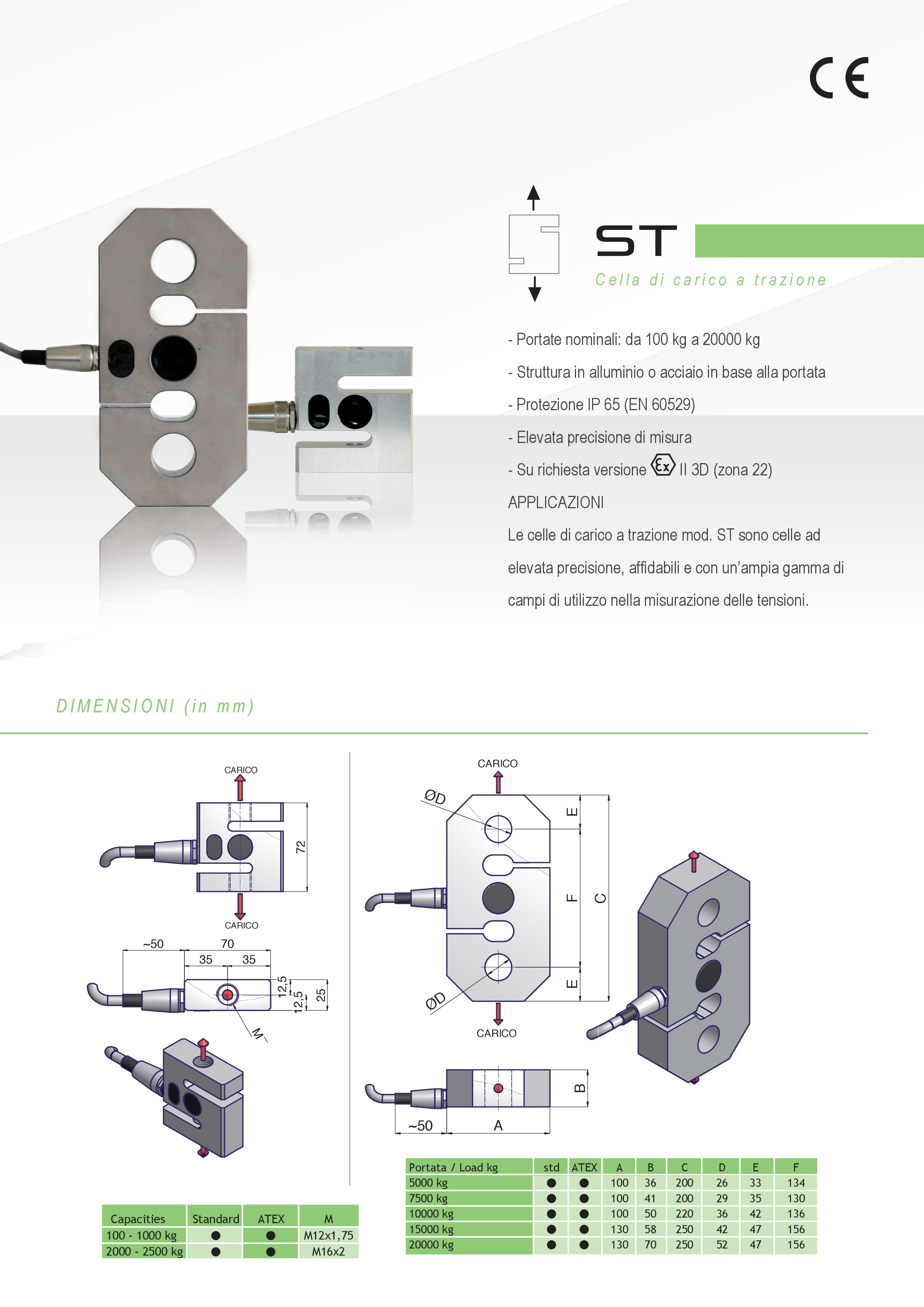

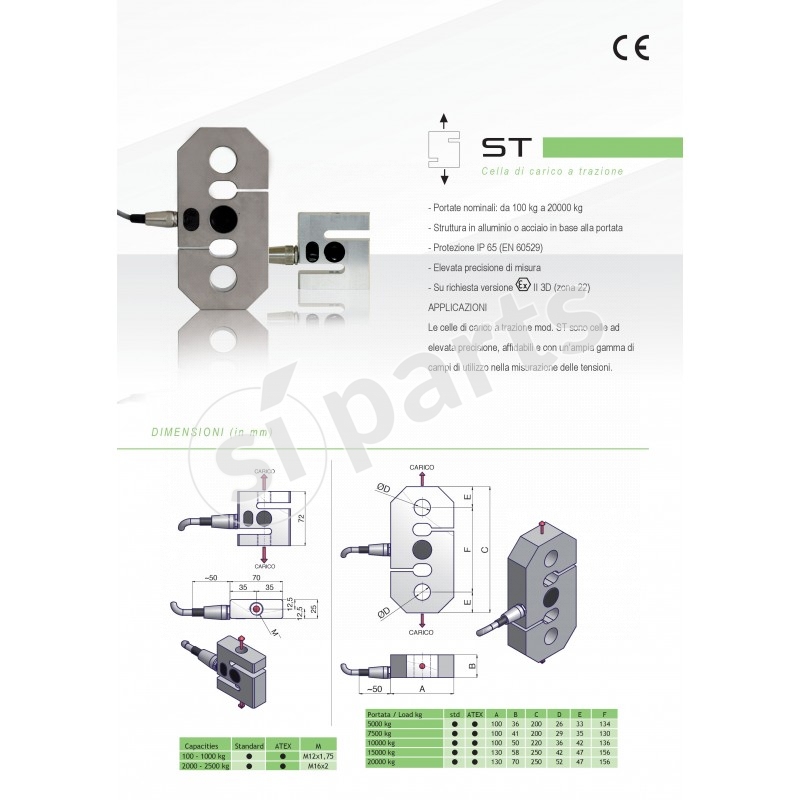

tension load cell 10 tons for longitudinal tension weight measurement. typical application is the weight measurement on winches, tilting mechanism, generic weight scales. it is possible to have alternative mechanical dimensions for specific applications.
| load (kg.) | std | atex | a | b | c | d | e | f |
|---|---|---|---|---|---|---|---|---|
| 500 | yes | yes | 100 | 36 | 200 | 26 | 23 | 134 |
| 7500 | yes | yes | 100 | 41 | 200 | 29 | 35 | 130 |
| 10000 | yes | yes | 100 | 50 | 220 | 36 | 42 | 136 |
| 15000 | yes | yes | 130 | 58 | 250 | 42 | 47 | 156 |
| 20000 | yes | yes | 130 | 70 | 250 | 52 | 47 | 156 |

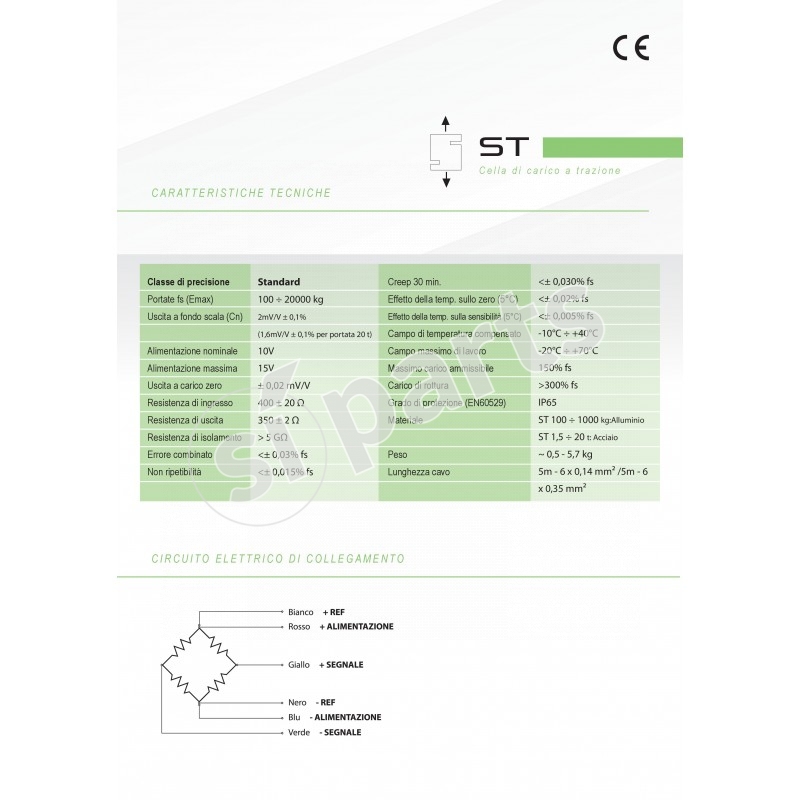

connection length mm
0-100
capacities fs emax
100 .. 20000 kg
rated voltage
10v
maximum excitation v
15v
zero balance output
± 0.02 mv/v
input resistance
400 ± 20 ohm
output resistance
350 ± 2 ohm
insulation resistance
> 5 g ohm
combined error
<± 0.03% fs
not repeatability
<± 0.015% fs
creep 30 min.
<± 0.030% fs
effetto della temperatura sullo zero @ 5 °c
<± 0.02% fs
effetto della temperatura sulla sensibilita' @ 5 °c
<± 0.005% fs
compensated temperature range
-10 .. +40 °c 14 .. 104°f
operating temperature
-20 .. +70 °c -4 .. +158 °f
maximum safe load
150% fs
ultimate load
> 300% fs
sealing en60529
ip65
weight
0,5 .. 5.7 kg
connection length mm detail
5 m - 6 x 0.14 mmq; / 5 m - 6 x 0.35 mmq
mean time to failure mttf
1093 years
