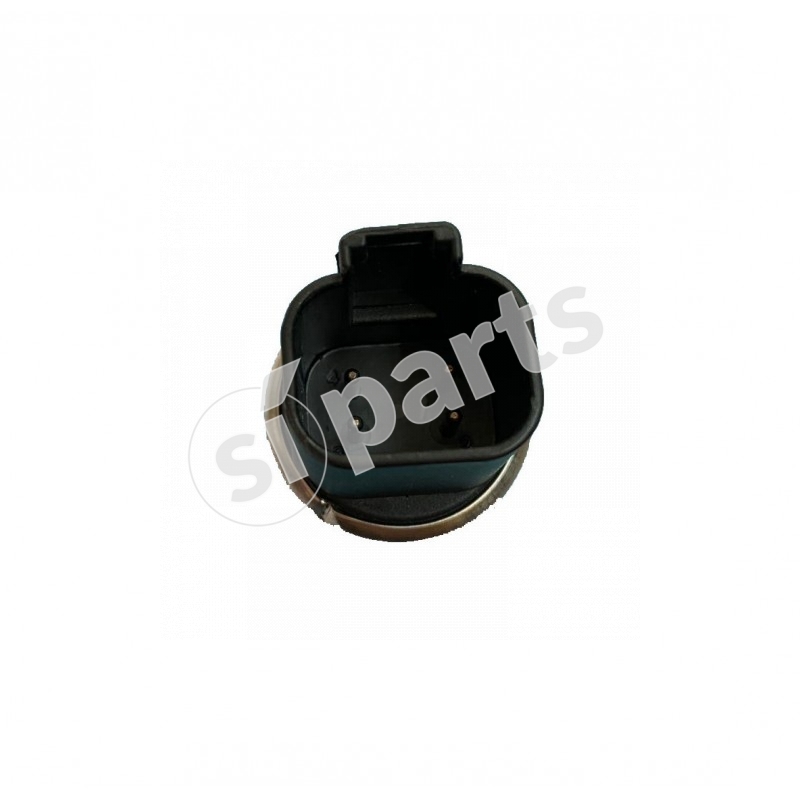

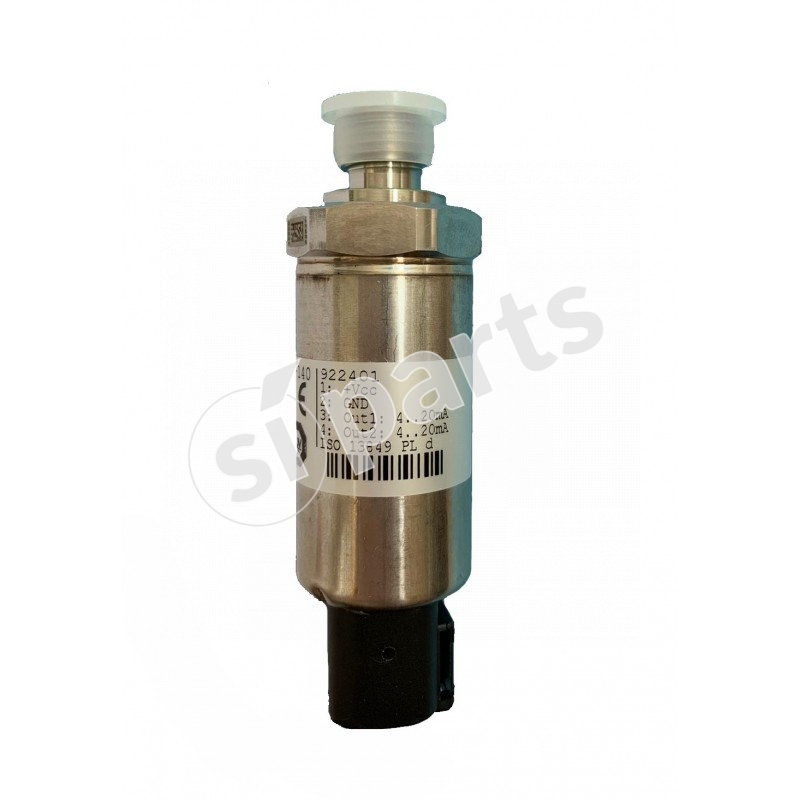

350 BAR DEUTSCH EN15000 PRESSURE TRANSDUCER

1004471

Code: AV45.60.0133.01

Contact us for more information

  • SSL 100% secure website SSL 100% secure website
  • Fast shipping with national and international couriers Fast shipping with national and international couriers
Sito sicuro | Pagamento sicuro
350 BAR DEUTSCH EN15000PRESSURE TRANSDUCER

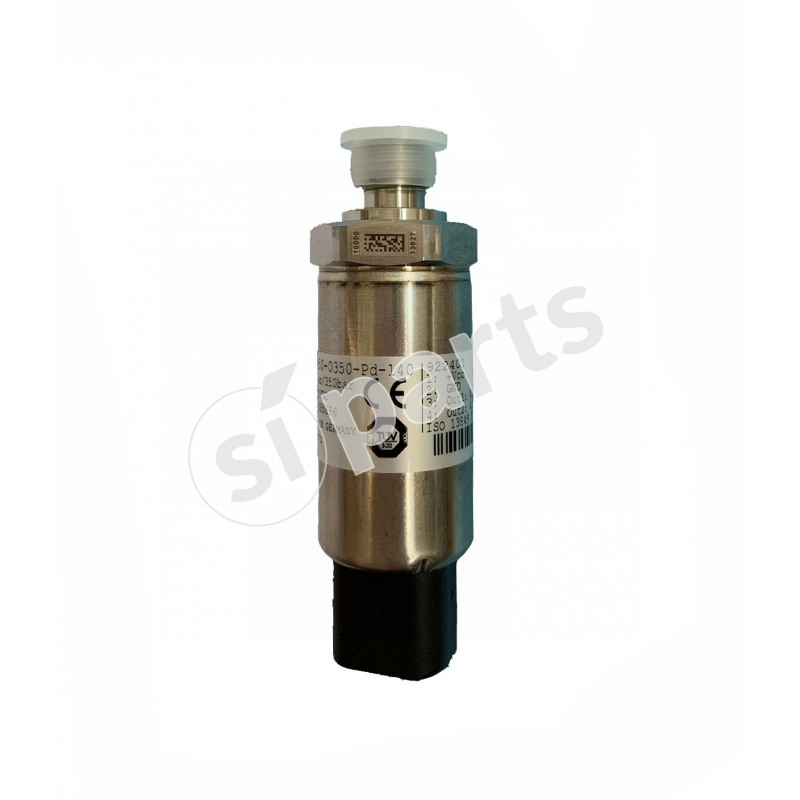

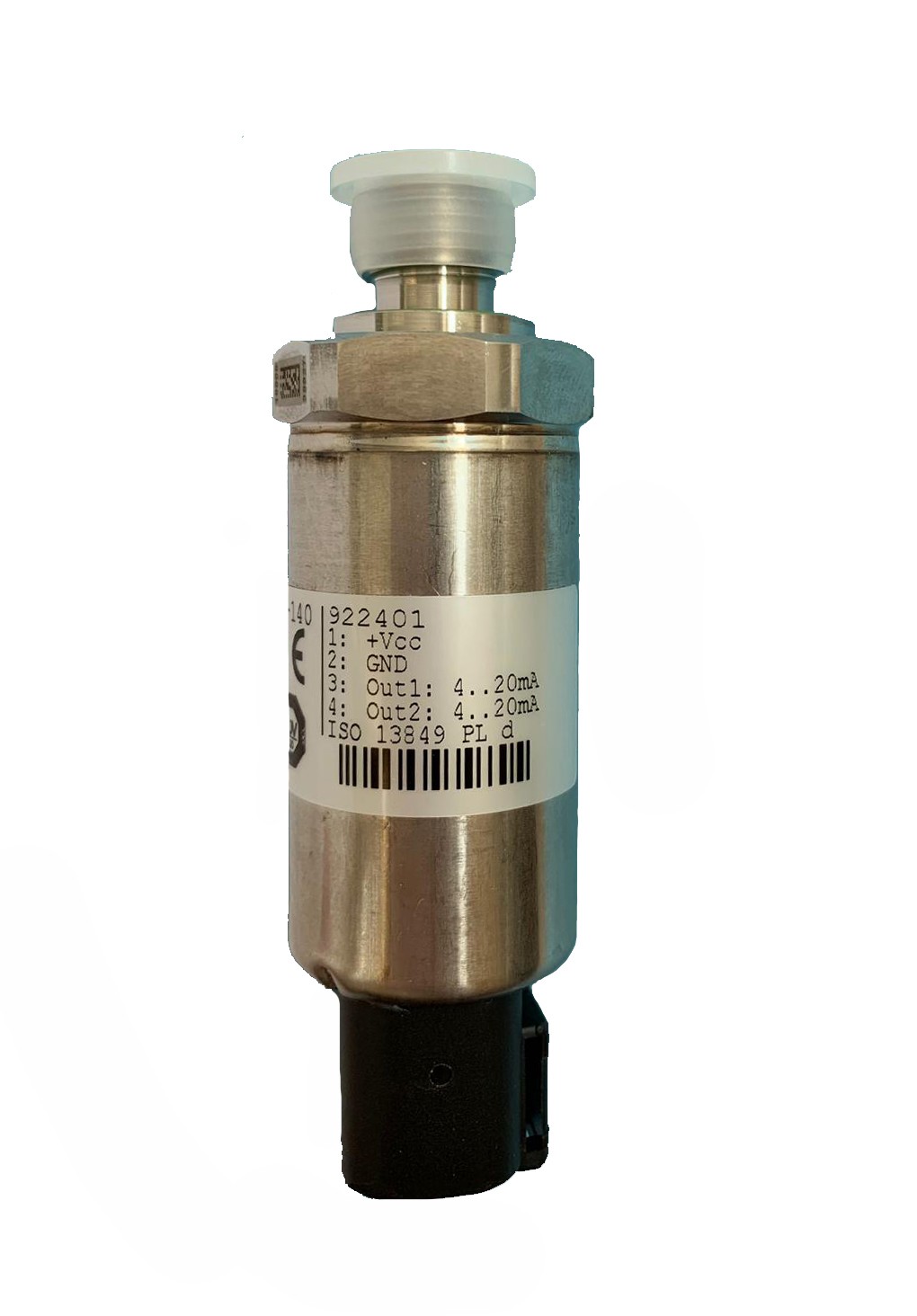

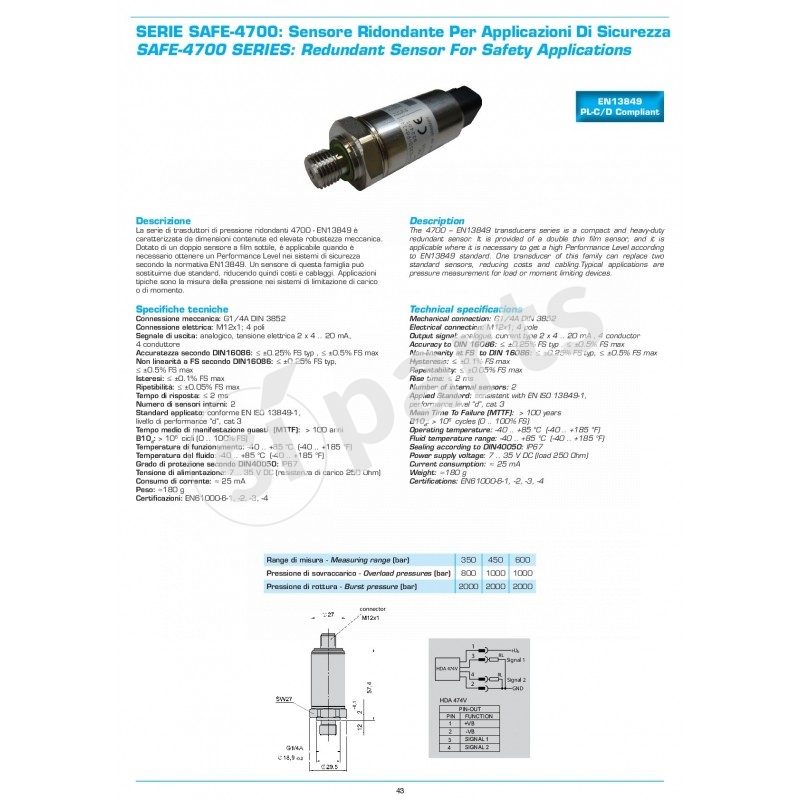

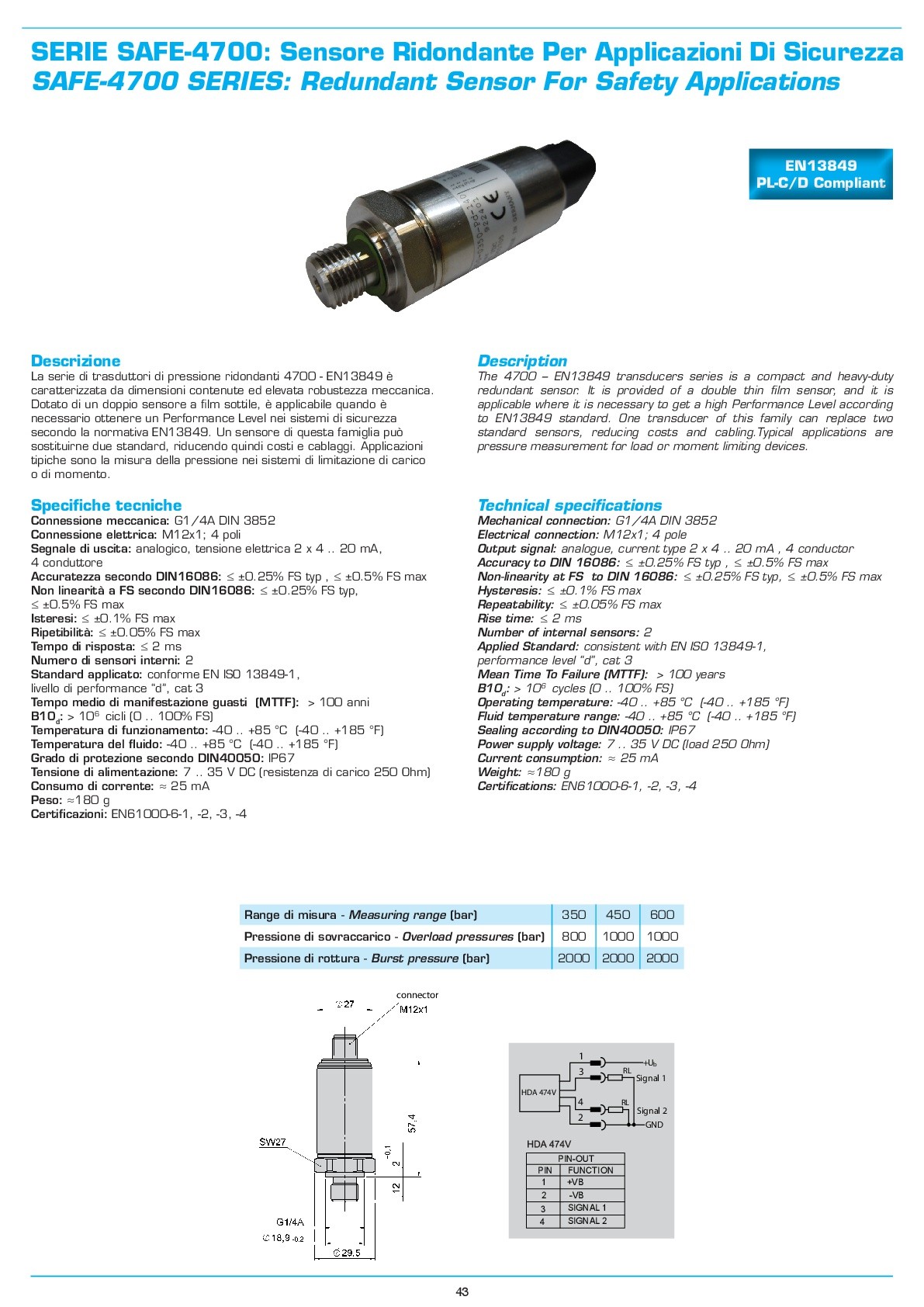

The 4700 - EN13849 redundant pressure transducer is characterized by small dimensions and high mechanical strength.
Equipped with a double thin film sensor, it is applicable when it is necessary to obtain a Performance Level in safety systems according to EN13849. A pressure transducer in this family can replace two standards, thereby reducing costs and wiring. Typical applications are the measurement of pressure in load limiting systems or moment.


MEASURING RANGE (BAR) OVERLOAD PRESSURES (BAR) BURST PRESSURE (BAR)
350 800 2000
450 1000 2000
600 1000 2000

MECHANICAL CONNECTION
G1/4A DIN 3852
TYPE CONNECTION

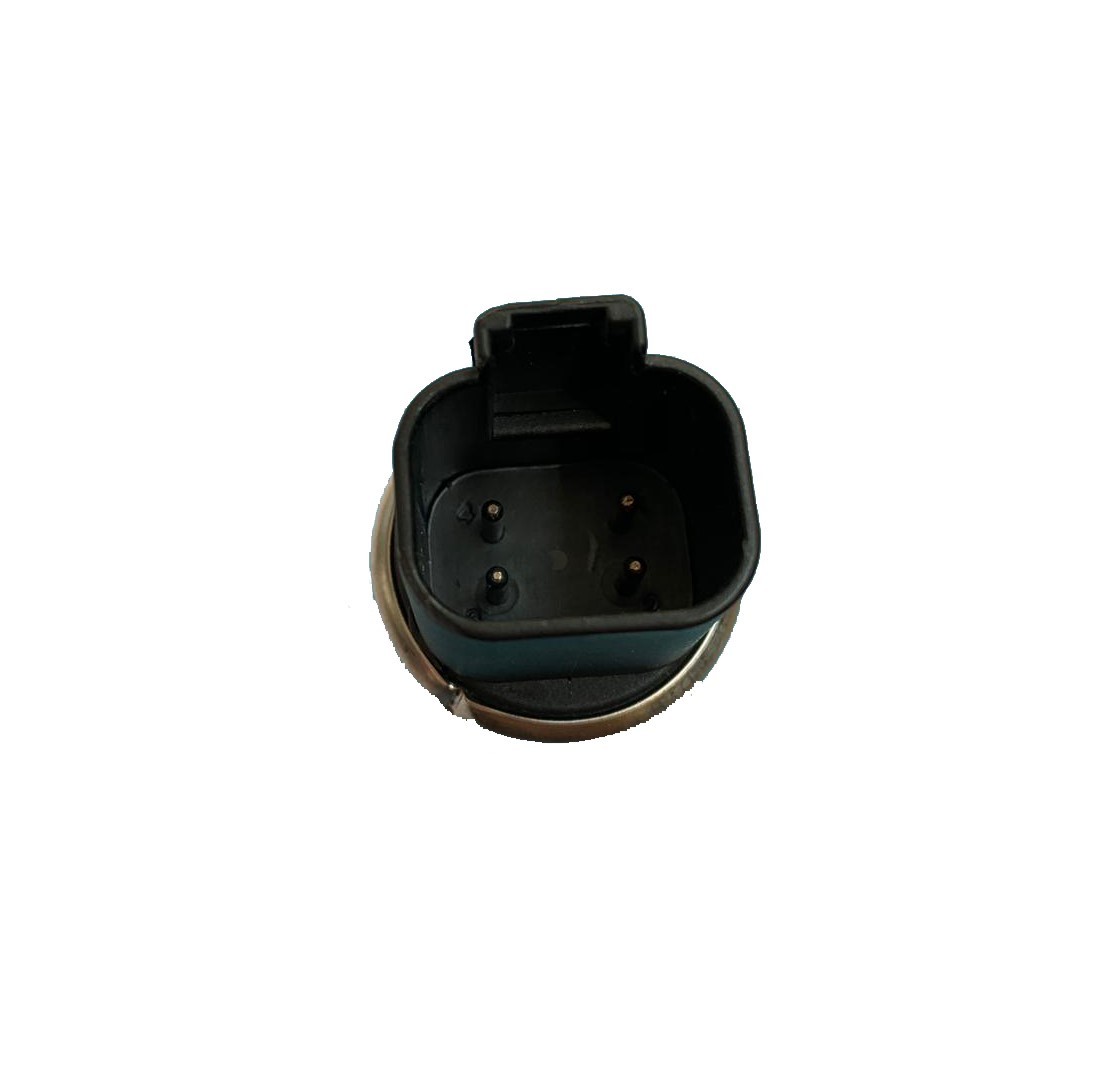

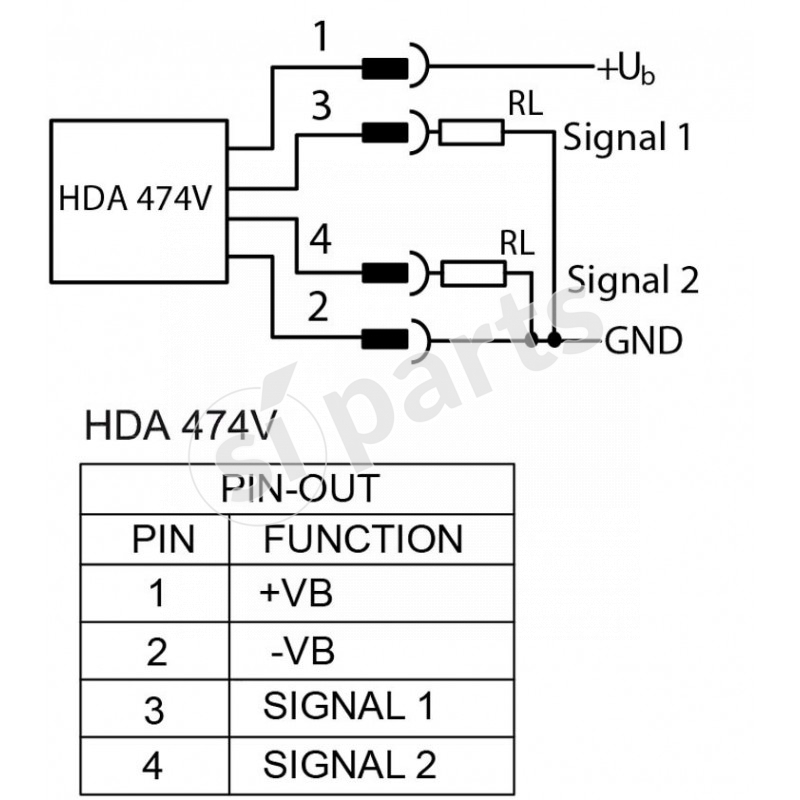

M12x1; 4 pole
OUTPUT SIGNAL
ANALOGUE, CURRENT TYPE 2 X 4 .. 20 MA , 4 CONDUCTOR
ACCURACY TO DIN 16086
<= ± 0.25% FS typ , <= ± 0.5% FS max
HYSTERESIS
<= ± 0.1% FS max
RIPETIBILITÀ
<= ± 0.05% FS max
RISE TIME
<= 2 ms
NUMBER OF INTERNAL SENSORS
2
APPLIED STANDARD
consistent with EN ISO 13849-1, performance level d, cat 3
MEAN TIME TO FAILURE MTTF
> 100 years
B10D
> 10^6 cycles 0 .. 100% FS
TEMPERATURA D'IMPIEGO °C
-40 .. +85 °C -40 .. +185 °F
STORAGE TEMPERATURE
-40 .. +85 °C -40 .. +185 °F
SEALING ACCORDIN TO DIN40050
IP67
POWER SUPPLY VOLTAGE V
7 .. 35 V DC load 250 Ohm
CURRENT CONSUMPTION
25 mA
WEIGHT
180 g
CERTIFICATIONS
EN61000-6-1, -2, -3, -4

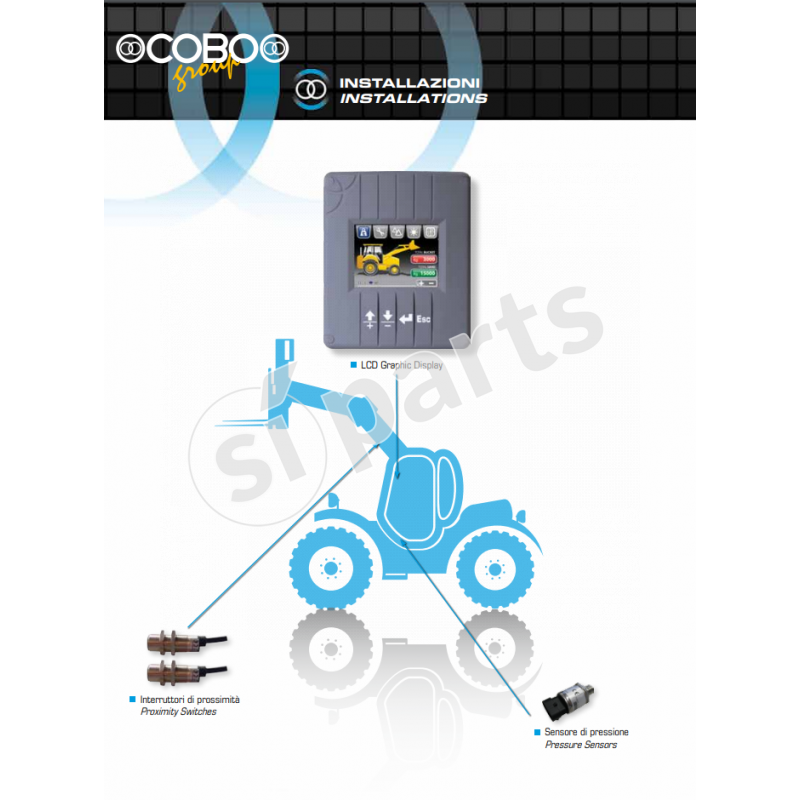

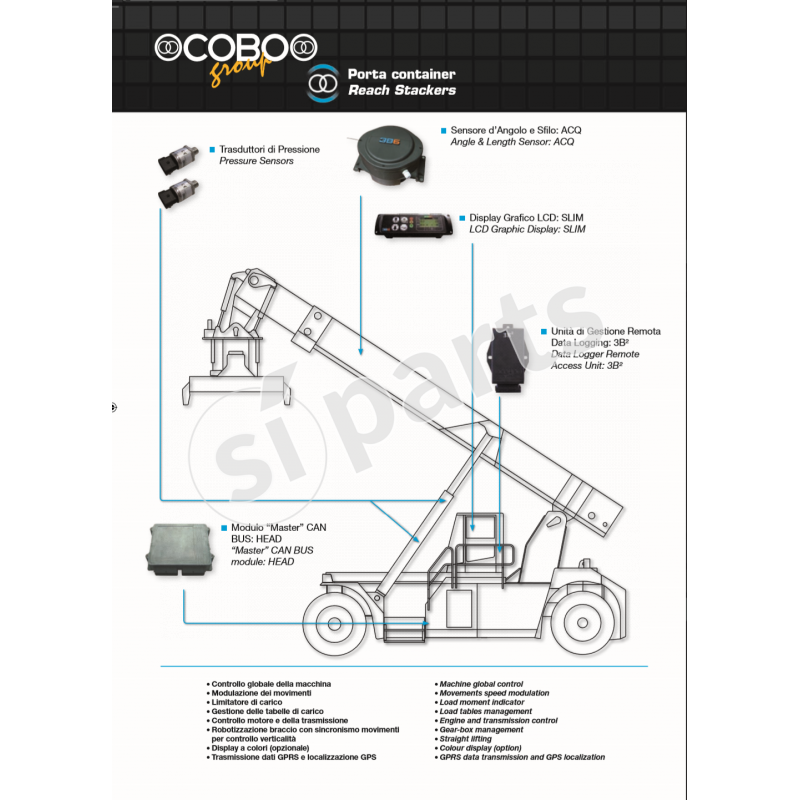

APPLICATIONS

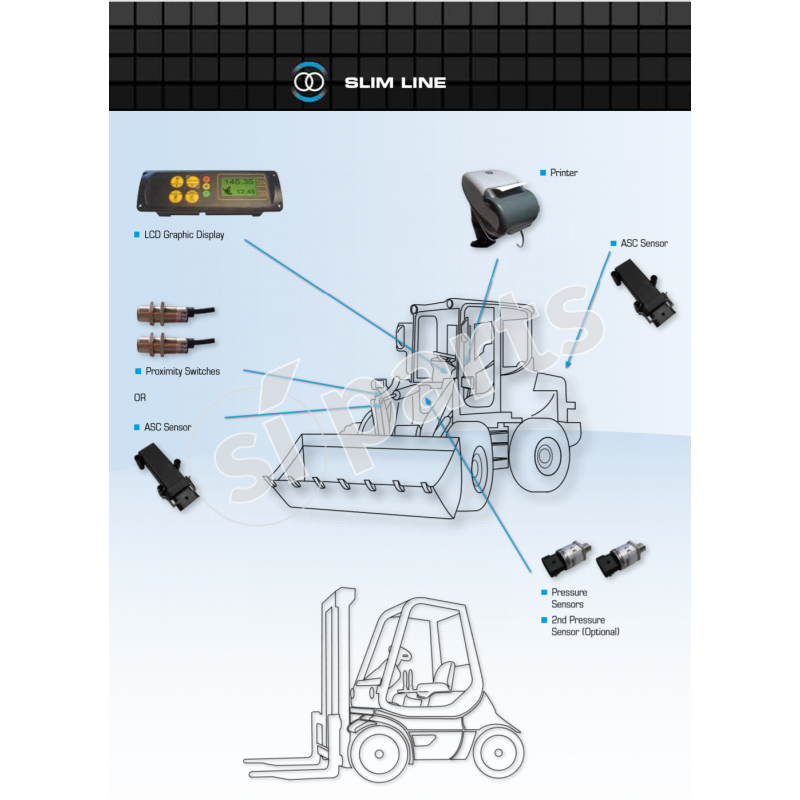

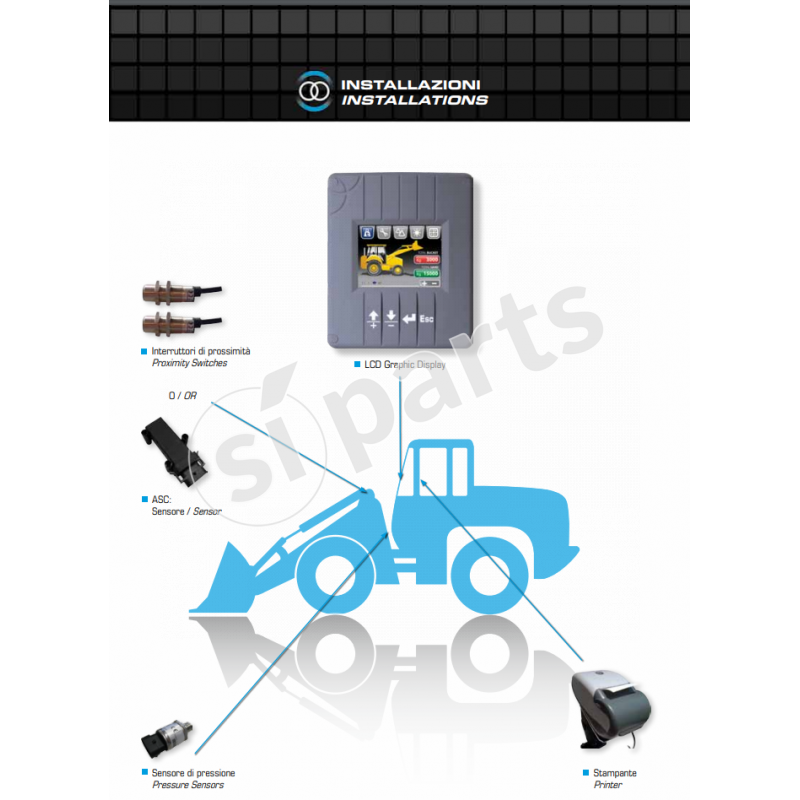

Components for access platforms telescopic - cranes
Telehandlers

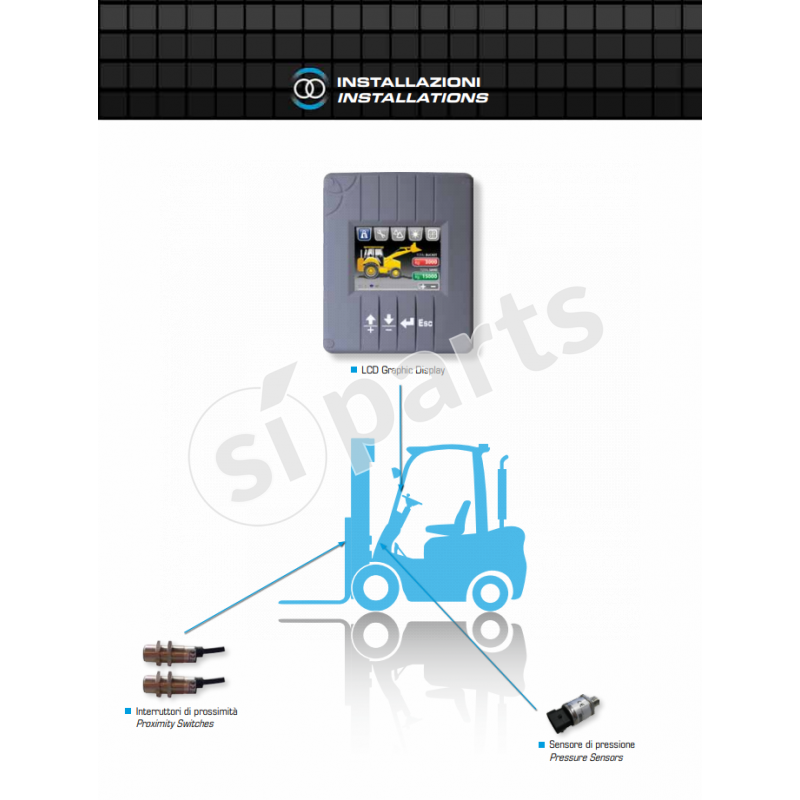

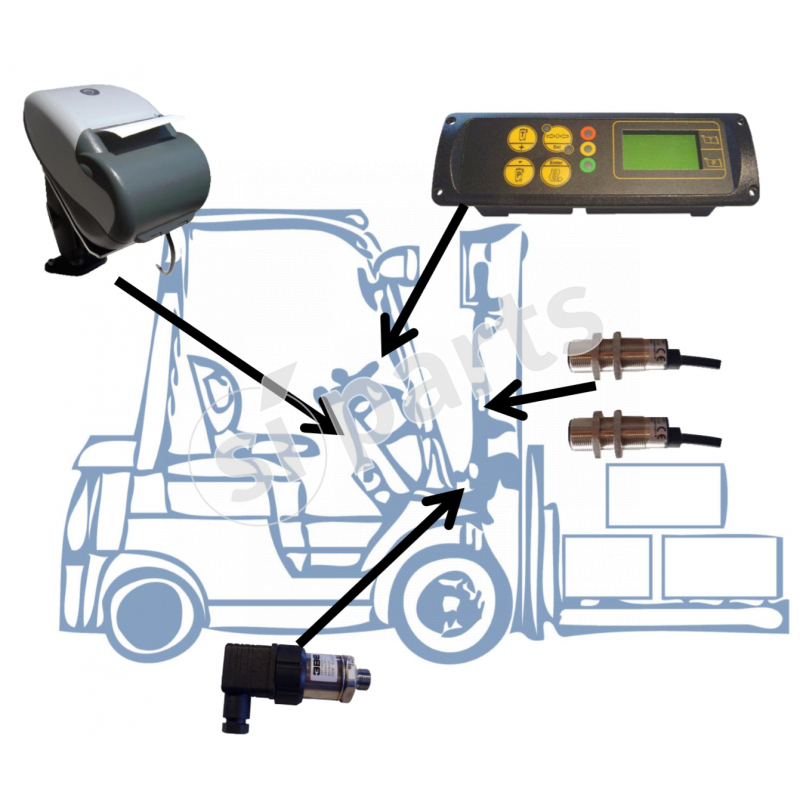

Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
