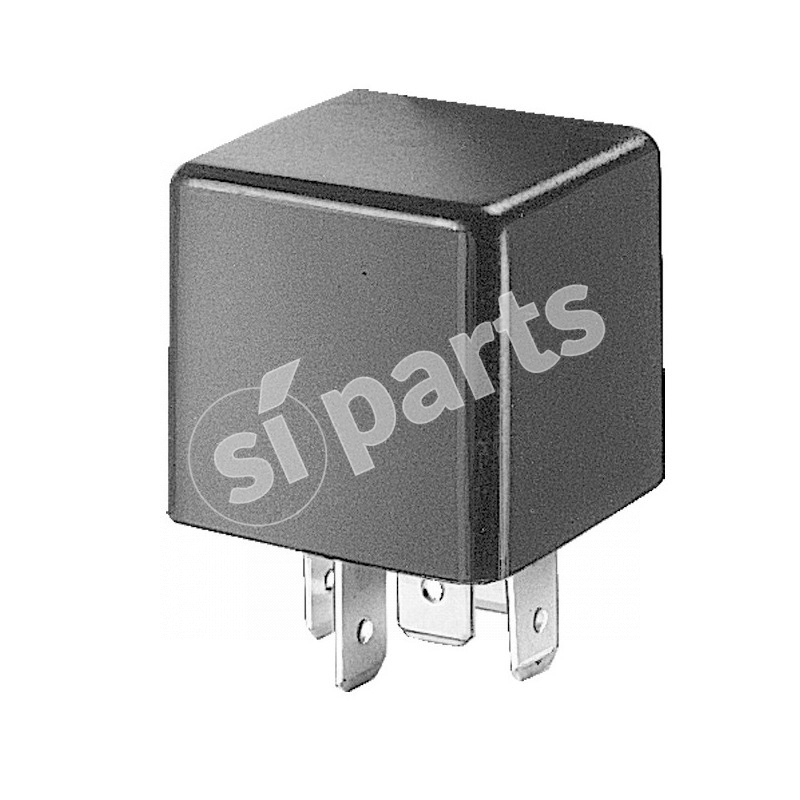

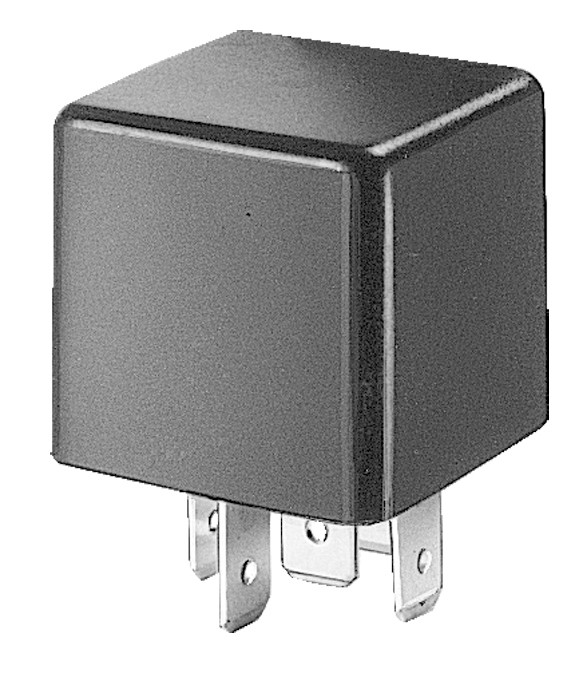

CIAM PRODUCTS- Original product
description
working
if the frequency of the signal on the pin 31 is more than 2hz , when pin t goes to
gnd, the output (pin 53s) goes to gnd too and remains until the pin t comes open
again.
if the frequency of the signal on the pin 31 is less than 2hz, the output (pin 53s)
remains open and any change of pin t doesnt change output state.
if the frequency of the signal on the pin 31 is more than 2hz , when pin t goes to
gnd, the output (pin 53s) goes to gnd too and remains until the pin t comes open
again.
if the frequency of the signal on the pin 31 is less than 2hz, the output (pin 53s)
remains open and any change of pin t doesnt change output state.
power supply voltage v
12v
max load
5 a
relay type
tachymetric
frequency
2 hz
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1027185
Code: 18.0271.0000.01
