CIAM PRODUCTS- Original product

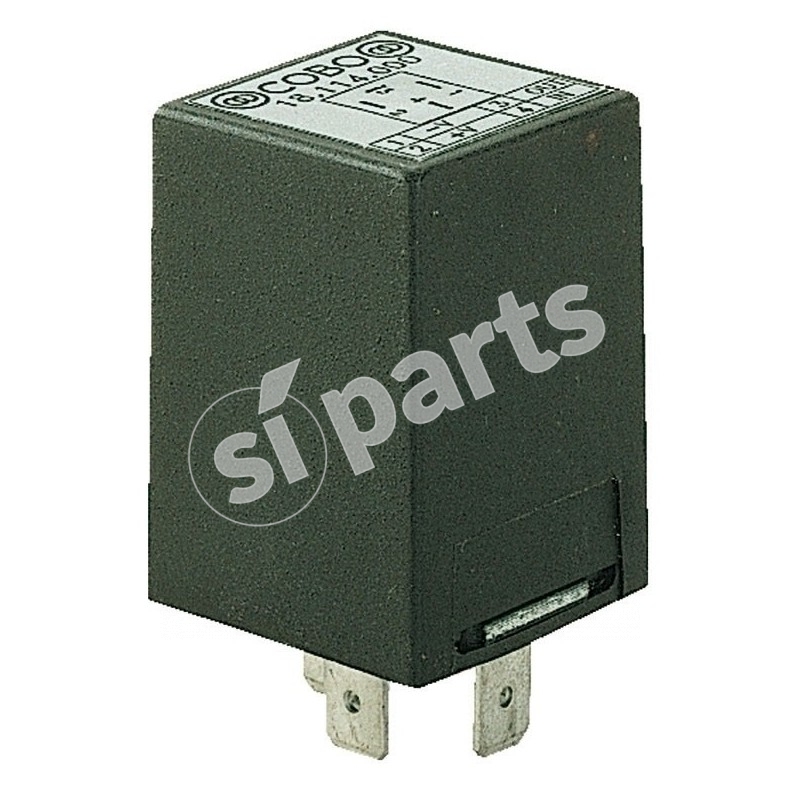

RELAY RESET STEP-STEP 12V SPARE PP
description
working
if pin 53s is not power supplied (pin 53s = open),
each time there is a pulse on pin t, the output changes its state (pin 53m).
if pin 53s is power supplied, output is reset (pin 53m = open)
and any change of pin t state doesnt change output state.
if pin 53s is not power supplied (pin 53s = open),
each time there is a pulse on pin t, the output changes its state (pin 53m).
if pin 53s is power supplied, output is reset (pin 53m = open)
and any change of pin t state doesnt change output state.
power supply voltage v
12v
max load
5 a
relay type
with reset
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1007915
Code: 01170923.01
Doc. Code: 01170923_$2
