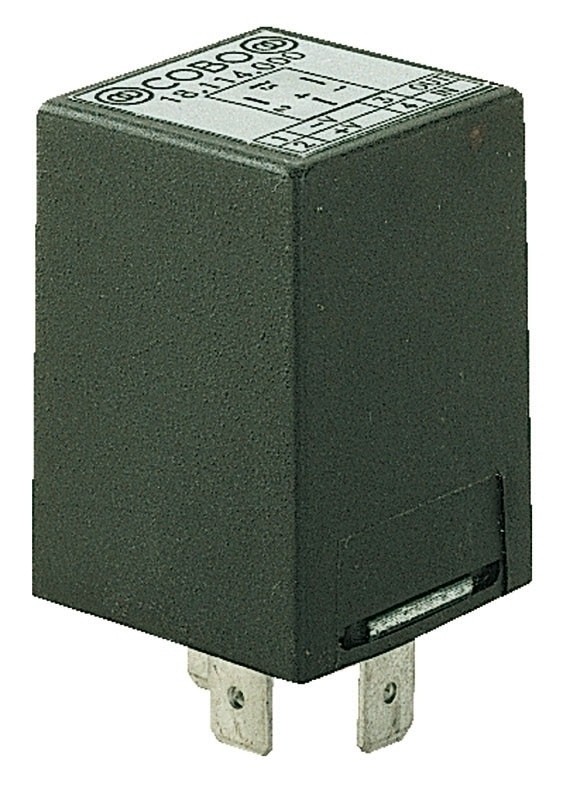

The image shown here is for illustrative purposes only.
RELAY
Code: 34.0113.0000.02
Doc. Code: 34-0113-0000_$2
Pack 50 pieces.
€6,372.00
(€127.44 Cad.)
Tax excluded
(7773.84 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
working
the electronic control unit changes a relay state diverting the signal on pin 2
from nc to no contact and back. the relay is energized when input "imp2" (pin 3)
is power supplied, while the relay is de-energized when input "imp1" (pin 1) is power
supplied. if both inputs are power supplied, the relay must operate the first activated
input and ignore the second one. the control unit is a memory-equipped device.
the electronic control unit changes a relay state diverting the signal on pin 2
from nc to no contact and back. the relay is energized when input "imp2" (pin 3)
is power supplied, while the relay is de-energized when input "imp1" (pin 1) is power
supplied. if both inputs are power supplied, the relay must operate the first activated
input and ignore the second one. the control unit is a memory-equipped device.
relay type
negative input
power supply voltage v
12v
24v
max load
5 a
