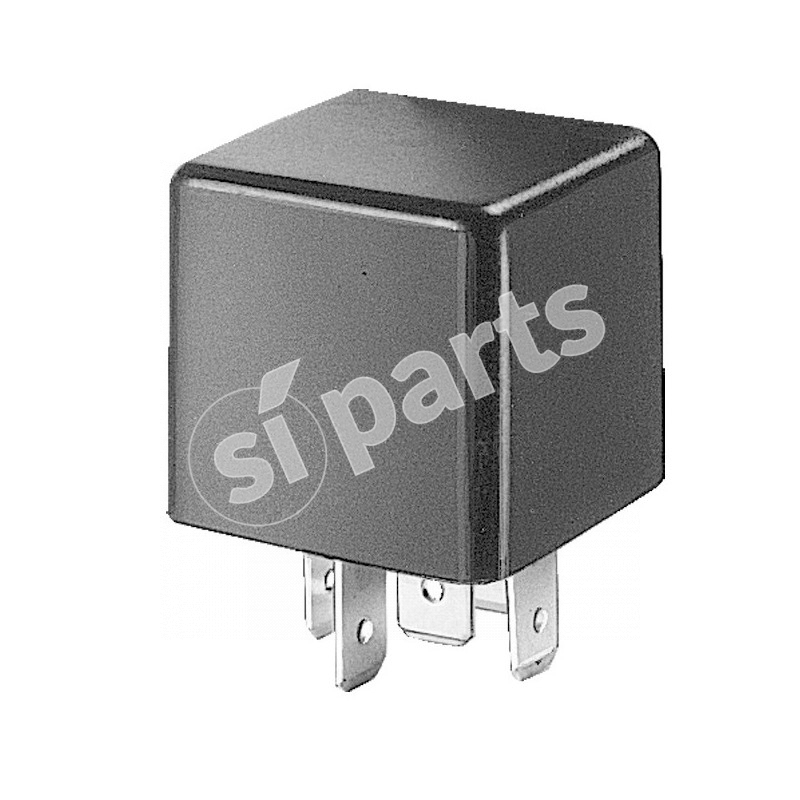

CIAM PRODUCTS- Original product
Description
WORKING
Each time there is a pulse on pin T, the output changes its state (pin 53S).
If, while the output is power supplied (Pin 53S = +24V), Pin 31 is energized at +24V,
the output immediately opens and any change of Pin T doesnt change output state.
When Reset turns OFF (Pin 31 = Open), circuit goes back to initial state.
Each time there is a pulse on pin T, the output changes its state (pin 53S).
If, while the output is power supplied (Pin 53S = +24V), Pin 31 is energized at +24V,
the output immediately opens and any change of Pin T doesnt change output state.
When Reset turns OFF (Pin 31 = Open), circuit goes back to initial state.
POWER SUPPLY VOLTAGE V
24V
MAX LOAD
5 A
RELAY TYPE
WITH RESET
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1007950
Code: 01171109.02
Doc. Code: 01171109-02
