The image shown here is for illustrative purposes only.

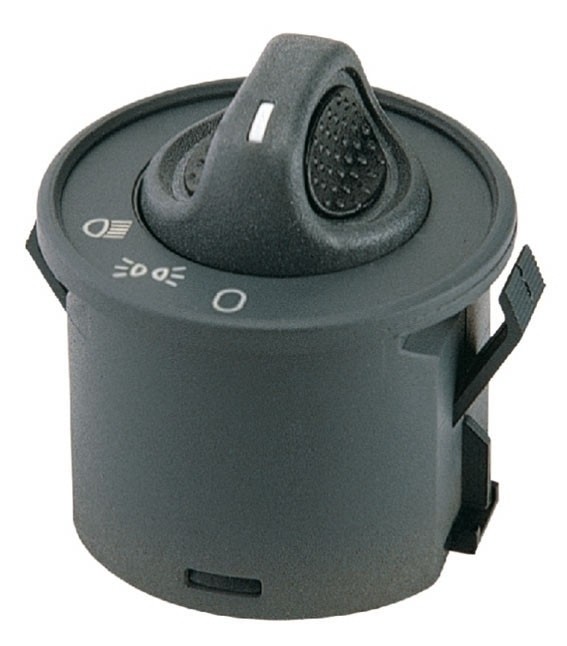

ROTATIVE SWITCH
Code: 23.0193.0000.01
(0 € Tasse incluse)
Quantity
- SSL 100% secure website
- Fast shipping with national and international couriers
description
pc housing - pc/abs + gf knob soft touch - pa + gf terminal board with 6 ways mqs amp integrated connector suitable for mqs 50402 3024dc male connector - white colour laser engraved icons lighted by green colour high intensity led - white
colour pointer lighted by green colour high intensity led.
colour pointer lighted by green colour high intensity led.
| key position | status tab output (2) | status tab output(5) | status tab output (4) |
|---|---|---|---|
| 0 | aperto-open | aperto-open | chiuso-closed |
| 1 | chiuso-closed | aperto-open | aperto-open |
| 2 | aperto-open | chiuso-closed | aperto-open |
technology
reed
version led
green
rated voltage
12v
nominal power rating
10w
electrical loads
500ma resistivi - resistive
250ma induttivi - induttive
