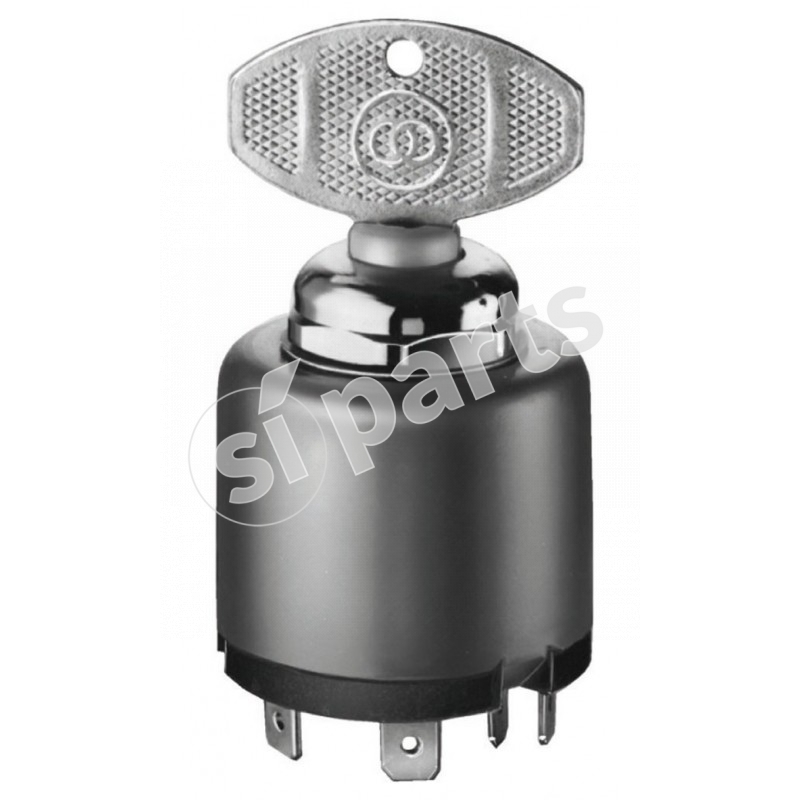

CIAM PRODUCTS- Original product
description

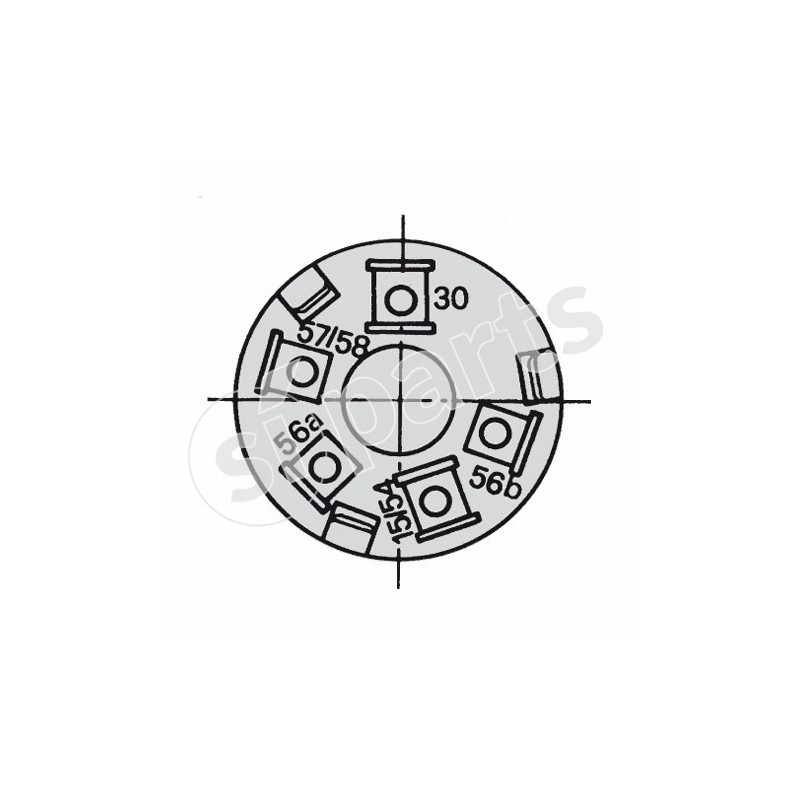

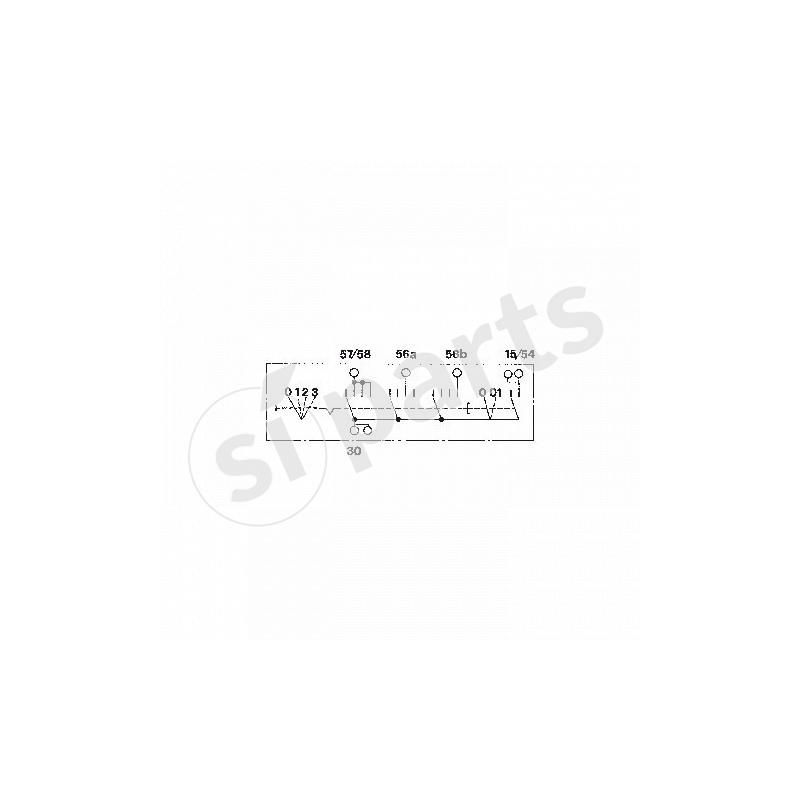

| key position | connection | max current 12v | max connec. time | function |
|---|---|---|---|---|
| 0 disinnestata-off | ||||
| 0 innestata-on | 30-15/54 | 15 a | inf. | auxiliary functions |
| 1 disinnestata-off | 30-57/58 | 10 a | inf. | parking lights |
| 1 innestata-on | 30-15/54 30-57/58 | 5 a + 10 a | inf. | auxiliary functions |
| 2 disinnestata-off | 30-57/58 30-56/b | 15 a + 10 a | inf. | parking lights/low beams |
| 2 innestata-on | 30-15/54 30-57/58 30-56/b | 15 a +10 a + 10 a | inf. | auxiliary functions |
| 3 disinnestata-off | 30-57/58 30-56/a | 10 a + 10 a | inf. | auxiliary functions/parking lights/low beams |
| 3 innestata-on | 30-15/54 30-57/58 30-56a | 15 a + 10 a + 10 a | inf. | auxiliary functions/parking lights/low beams |
key removable
key on adn off in all positions
APPLICATIONS
Components for access platforms telescopic - cranes
Telehandlers
Forklift trucks
Earth moving machines
Trucks tractors - trailers
Agricultural vehicles
Combines
Mixer wagons
Fire fighting - rescue vehicles
Camper & caravan
Motorcycles - quad components
Electric vehicles - golf cart
Can-bus boat global control system
Ambulances - emergency vehicles
Defense vehicles
1027688
Code: 23.100.000.11
Doc. Code: 23-100-000
